MOSAIC

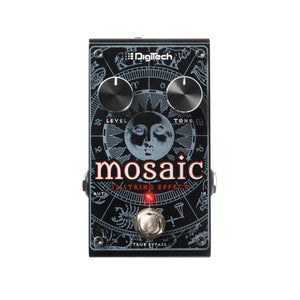

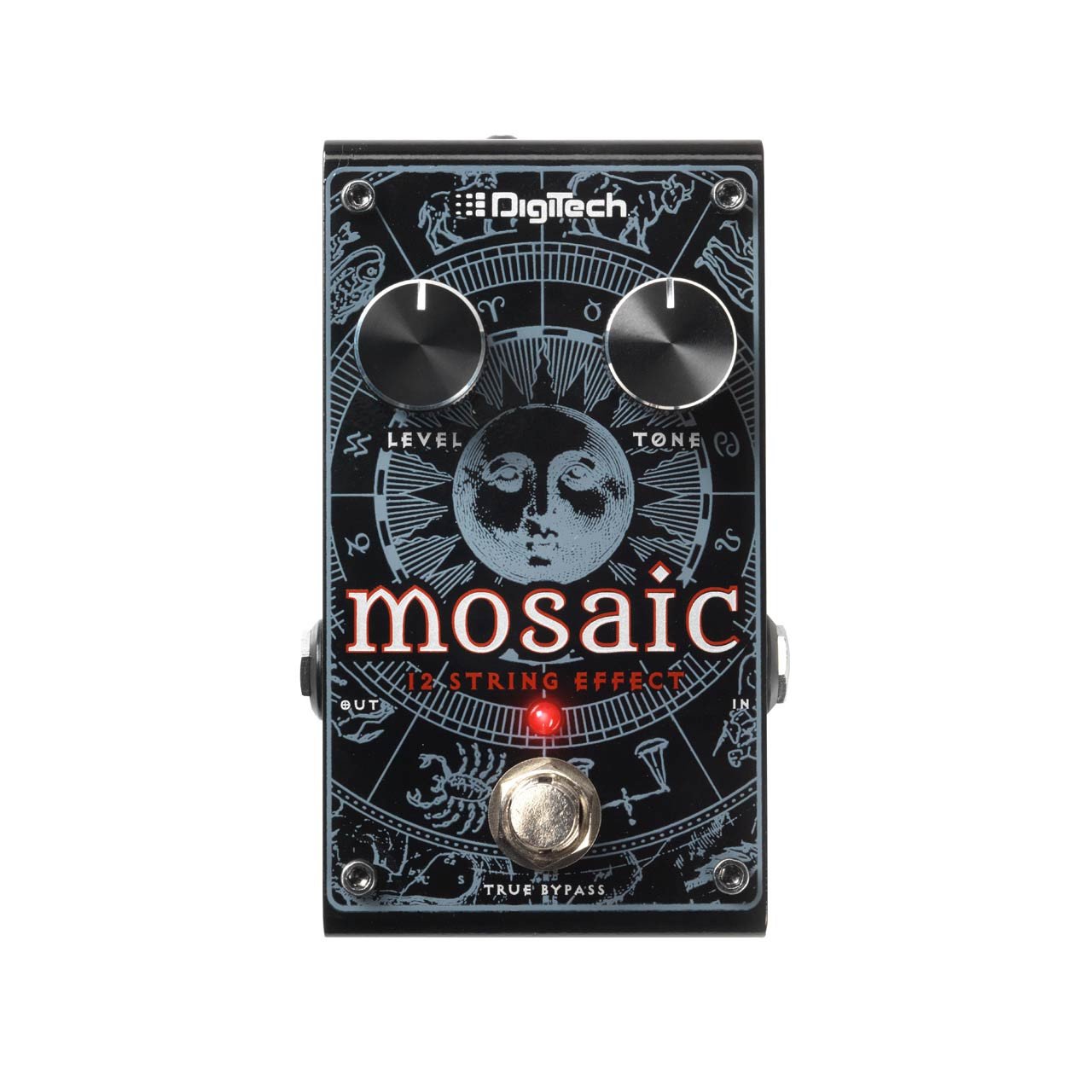

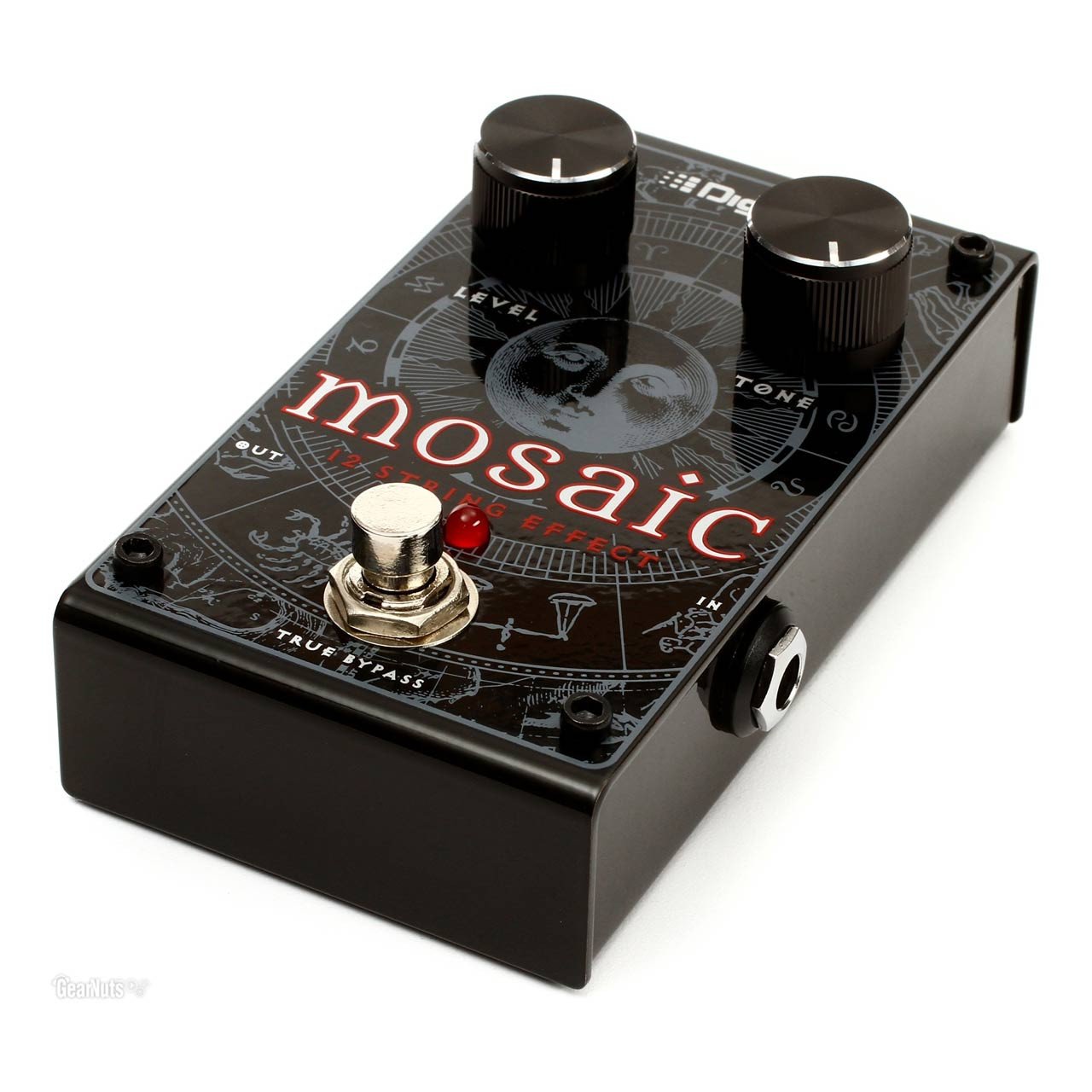

DigiTech Mosaic Polyphonic 12-String effect pedal

4 In Stock

The DigiTech® Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic’s balanced low-end response with crisp octave shimmer produces a tone that’s lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic’s sound with independent Level and Tone controls. The level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is a true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


Features



Turn any 6-string guitar into a 12-string

Create a lush, shimmering chordal effect reminiscent of a 12-string guitar.

Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you

Controls:

  • LEVEL - Adjusts the intensity of the 12-string effect
  • TONE - Adjusts the amount of high-frequency enhancement being applied to your signal

 Included items

  • DigiTech Mosaic 12-String Polyphonic Effect Pedal
  • PS0913DC Power Supply
  • Online Owner’s Manual and Warranty Registration Information Card

Specifications

General Specifications

SAMPLE RATE

44.1 kHz

FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)

SIGNAL-TO-NOISE RATIO

> -105 dB (A-weighted); ref = max level, 22 kHz bandwidth

THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

A/D/A CONVERSION

24-bit

INPUT

1/4" Unbalanced (Tip-Sleeve)

OUTPUT

1/4" Unbalanced (Tip-Sleeve)

CONTROLS

Level, Tone

TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions

LENGTH

4.75" (120mm)

HEIGHT

1.75" (44mm)

WIDTH

2.875" (73mm)

WEIGHT

0.36 lb. (163g)
