$269.99
ARTP_SCCCE

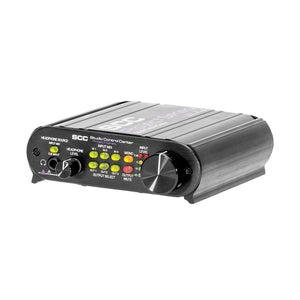

ART SCC Studio Control Center
The Studio Control Centre (SCC) by ART is a monitor controller with 3 x stereo inputs and outputs, a dedicated headphone amp and large master volume dial. Other key features include selectable main or cue input source for the headphone mix, signal blending of the input sources and metering.
Type: Monitor Controllers
-
ART SCC PRODUCT FEATURES:
Select or Blend up to Three Stereo Input Sources

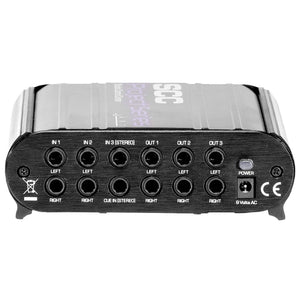

Three Selectable Stereo Balanced Outputs
Large Format, Wide Range Low Distortion Volume Control
Separate Headphone Output with Selectable Main or Cue input Sources
Mono Switch & Output Mute Switches
Input and Output Trim Controls
Input Level Metering
Solid All Metal Project Series Stackable Case
External Low Noise Power Supply -
ART SCC TECHNICAL SPECIFICATIONS:
Frequency Response: 10-100kHz + 0.5dB
Total Harmonic Distortion: <0.004% @ 20-20kHz
Maximum Gain: +23 dB (balanced in-out), +20dB (Cue input to Headphone output)
Input Impedance: 9k Ω balanced (CH1, CH2), 5k Ω unbalanced (CH3, Cue)
Maximum Input Level: +21dBu balanced inputs, +20 dBu unbalanced inputs
Maximum Output Level: +18dBu balanced (OUT1-OUT3)
Equivalent Input Noise: <-96 dBu (balanced inputs), <-102dBu (Cue Input)
Headphone Out: 1/4-inch Stereo TRS headphone jack
Headphone Level: 100mW (x2) @100 Ω
CMRR: >50 dB
Output Connectors: OUT1-OUT3: 1/4-inch Balanced TRS
Chassis Type: All aluminum black anodized with rubber sides
Power Requirements: 9VAC @ 1000mA (external)
Dimensions: 1.75"H x 5.9"W x 6.5"D (44.5mm x 150mm x 165mm)
Weight: 2.5 lbs (1.14 kg) with power supply and packaging
Notes: 0 dBu = 0.775Vrms
