AT AT-XP5

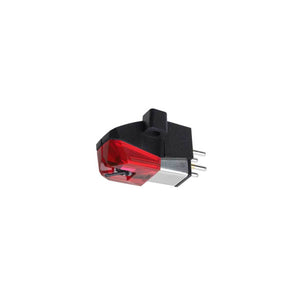

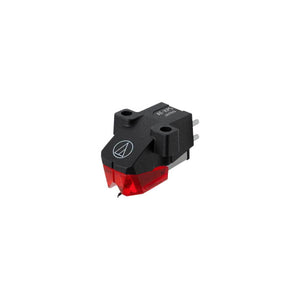

Audio-Technica AT-XP5 DJ Cartridge
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Coming Soon!
Type: Turntable Accessories
-
Product Features:
Durable design for high-quality specialist DJ playback
Cartridges designed for DJ venue applications for their Hi Fi audio Performance
VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards
Carbon ABS cantilever
Great visibility of stylus tip for DJ use
High-rigidity and Low-resonance cartridge housing
Durable design for high-quality DJ playback
Replacement Stylus: ATN-XP5
-
Technical Specifications:
Type: VM Dual Magnet
Mounting: Half-inch
Frequency Response: 20 - 18,000 Hz
Channel Separation: 20 dB at 1kHz
Output Channel Balance: 2.0 dB
Output Voltage" 5.5 mV (mV at 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 20°
Vertical Tracking Force Range: 2.0 - 4.0g

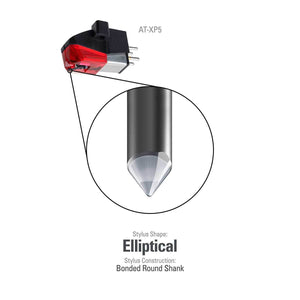

Stylus Shape: Elliptical
Stylus Size: 0.3 x 0.7 mil
Cantilever: Carbon Fibre Reinforced ABS
Coil Inductance: 1.0 H (1 kHz)
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 6.0x10-6cm/dyne (100Hz)
Recommended Load Impedance: 47,000 ohms
Recommended Load Capacitance: 100-200 pF
Weight: 6.2g
Dimensions: H17.2×W17.8×D28.3mm
Replacement Stylus: ATN-XP5

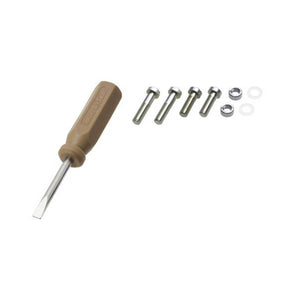

Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
