AT AT-XP7

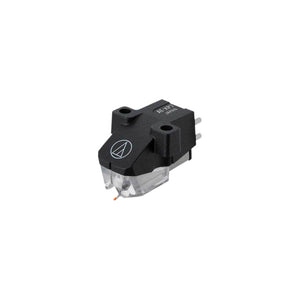

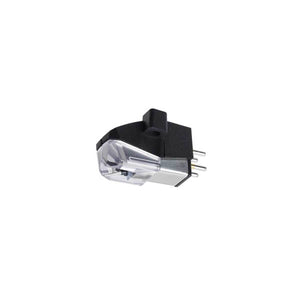

Audio-Technica AT-XP7 DJ Cartridge
The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Coming Soon!
Type: Turntable Accessories
-
Product Features:
Durable robust design for high-quality specialist DJ playback
Cartridges designed for DJ venue applications for their Hi Fi audio Performance
Great visibility of stylus tip for instant positioning in dark environments
Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards
VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
Tapered aluminium cantilever
Stainless wire suspension enables expressive higher frequency for clearer sound
High-rigidity and Low-resonance cartridge housing
Replacement Stylus: ATN-XP7
-
Technical Specifications:
Type: VM Dual Magnet
Mounting: Half-inch
Frequency Response: 20 - 20,000 Hz
Channel Separation: 22 dB at 1kHz
Output Channel Balance: Output Channel Balance
Output Voltage: 6.0 mV (mV at 1 kHz, 5 cm/sec)
Vertical Tracking Angle: 20°
Vertical Tracking Force Range: 2.0 - 4.0g

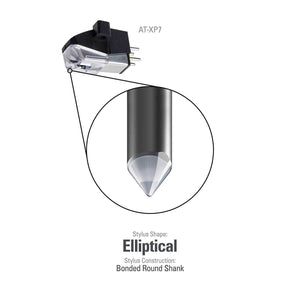

Stylus Shape: Elliptical
Stylus Size: 0.3 x 0.7 mil
Stylus Construction: Bonded Round Shank
Cantilever: Aluminium tapered Pipe
Coil Inductance: 1.0 H (1 kHz)
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 8.0x10-6cm/dyne (100Hz)
Recommended Load Impedance: 47,000 ohms
Recommended Load Capacitance: 100-200 pF
Weight: 6.2g
Dimensions: H17.2×W17.8×D28.3mm
Replacement Stylus: ATN-XP7

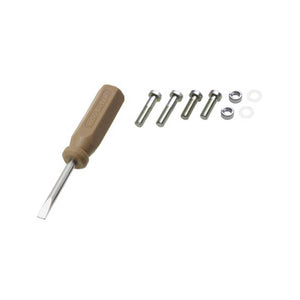

Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
