$519.00$667.00
AT ATM350U KIT

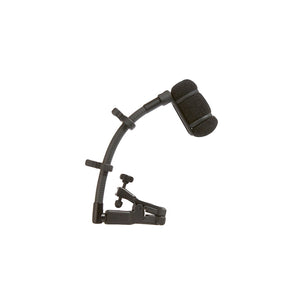

Audio-Technica ATM350U Cardioid Condenser Instrument Microphone

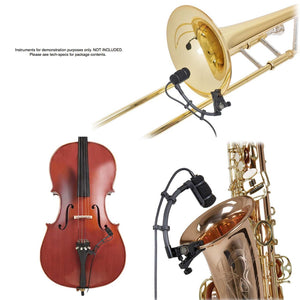

The Audio-Technica ATM350U is a small-diaphragm condenser mic, with a cardioid polar pattern that ships with a universal clip-on mounting system. The mic itself, fits snugly into the windshield affixed to a 5-inch goose-neck style boom-arm. The ATM350U is capable of handling very high SPL, making it an ideal choice for live applications. The mic can literally be clipped-on via the peg style clip, to any compatible sound source. These include viola’s, violin’s, brass and woodwind instruments.
Type: Condenser Microphones
-
-
Audio-Technica ATM350U Features:
Low-profile mic design for minimum visibility
Crisp, clear, well-balanced microphone response, even at high SPLs
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
UniMount® universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphone
Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play

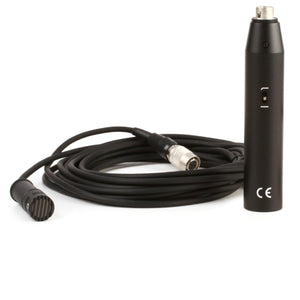

In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Included violin mount with hook-and-loop fastener provides an additional mounting option -
Audio-Technica ATM350U Specifications:

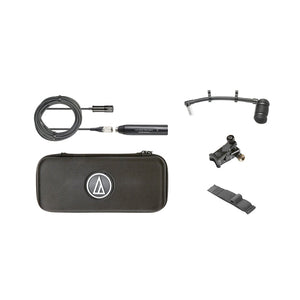

Package Contents Includes:
AT8543 PS, AT8490 gooseneck, AT8468 velcro, AT8491U universal mount
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE
200 ohms
MAXIMUM INPUT SOUND LEVEL
159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11– 52V DC, 3.5 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
14.5 g
WEIGHT (POWER MODULE)
90 g
DIMENSIONS (MICROPHONE)
37.8 mm long, 12.2 mm maximum body diameter
DIMENSIONS (POWER MODULE)
92 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
4.0 m long (permanently attached to microphone), 3.2 mm diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS
UE-H hypercardioid (100°); UE-O omnidirectional (360°)
ACCESSORIES
ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount® universal clip-on mount; AT8490 UniMount® 5″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
