AT ATW-1312

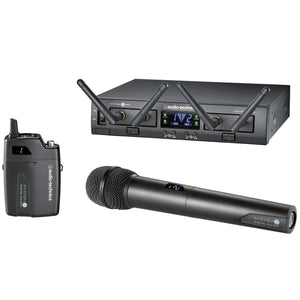

Audio-Technica System 10 PRO - ATW1312 Rack-Mount Digital Wireless Body-Pack / Handheld System
Building on the System 10 from Audio-Technica System 10 Pro has some innovative new features, none more than the detachable antenna! Move closer to your transmitter by up to 328 feet, via a CAT5 cable run. Connect up to 5 ATW-RC13 receivers together for a multi-wireless set-up, via the new “link” function. Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak® body-pack or ATW-T1002 handheld transmitters, or one of each. Both the receiver chassis and transmitters feature easy-to-read displays.
ATW1312 Pro Body-Pack / Handheld System includes:
ATW-RC13, ATW-RU13 x2, ATW-T1001, ATW-T1002
Type: Wireless Systems
-
-
ATW1312 PRODUCT FEATURES:
Audio-Technica’s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 100 meters away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.
Features
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
Operates in the 2.4 GHz range – completely free from TV interference

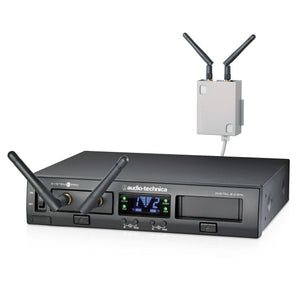

Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis (ten receiver units) can be linked and used simultaneously
Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and setup
Three levels of diversity assurance: frequency, time & space
Ground-lift switch helps eliminate audible hum caused by ground loops
-
ATW1312 TECHNICAL SPECIFICATIONS:
Overall System Specifications
Operating Frequencies
2.4 GHz ISM band
Dynamic Range
>109 dB (A-weighted), typical
Total Harmonic Distortion
<0.05% typical
Operating Range
60 m (200′) Open range env. with no interfering signals
Operating Temperature Range
0° C to +40° C Battery performance may be reduced at very low temperatures
Frequency Response
20 Hz to 20 kHz
RECEIVER SPECIFICATIONS
Receiving System
Diversity (frequency/time/space)
Output Connectors
Remote Receiver Connector: RJ45 Link Connector: RJ12
Maximum Output Level
XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV
Power Supply
100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions
209.8 mm W x 44 mm H x 169.3 mm D
Net Weight
940 grams
Accessory Included
Power supply
Accessories Included
AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

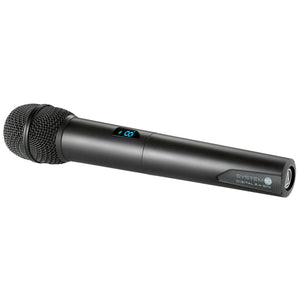

HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output
10 mW
Spurious Emissions
Following federal and national regulations
Batteries
Two 1.5V AA not included
Battery Life
>7 hours (alkaline) Depending on battery type and use pattern
Dimensions
254.8 mm long, 50.0 mm diameter
Net Weight
280 grams
Accessory Included
AT8456a Quiet-Flex™ stand clamp

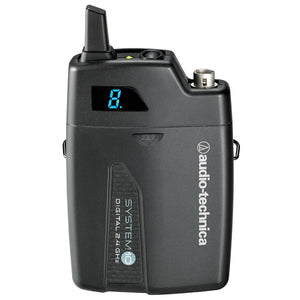

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output
10 mW
Spurious Emissions
Following federal and national regulations
Input Connections
Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries
Two 1.5V AA not included
Battery Life
>7 hours (alkaline) Depending on battery type and use pattern
Dimensions
70.2 mm W x 107.0 mm H x 24.9 mm D
Net Weight
100 grams
-
SYSTEM REQUIREMENTS:
N/A
