$139.00$163.53
ADX-F5

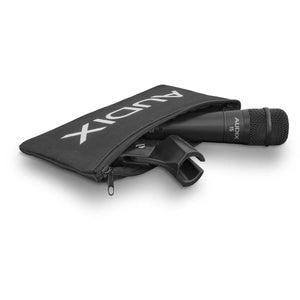

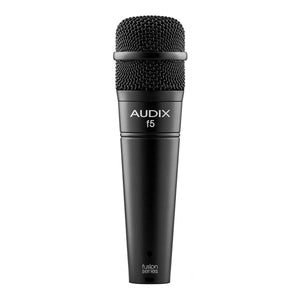

Audix F5 Fusion Dynamic Instrument Mic for Snare / Cabs
Type: Dynamic Microphones
The Fusion Series microphones represent affordable excellence.
The f5 dynamic instrument microphone is an ideal choice for snare, toms, percussion, and acoustic instruments in live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound.
The f5’s low impedance and balanced output allow interference-free performance.
Designed, assembled, and tested by Audix in the USA.
Specifications
| Transducer Type | Dynamic |
|---|---|
| Frequency Response | 55 Hz – 15 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 580 ohms |
| Sensitivity | 2.2 mV / Pa @ 1k |
| Capsule Technology | LM Type A |
| Off-Axis Rejection | >20 dB |
| Maximum SPL | ≥137 dB |
| Power Requirements | None |
| Connector | 3-pin XLRm |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Materials / Finish | Zinc Alloy / Black Finish |
| Weight | 283 g / 10 oz |
| Length | 145 mm / 5.7 in |
