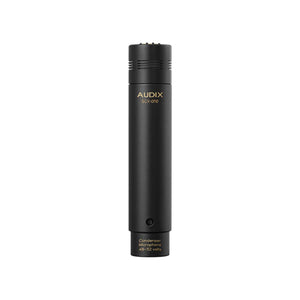

ADX-SCX1-O
The SCX1-O is a professional studio cardioid omni condenser microphone designed for a wide variety of recording, broadcast, and live sound applications.
With a smooth uniform frequency response from 40 Hz – 20 kHz, the SCX1 is very consistent when responding to on and off-axis signals, and exhibits excellent phase coherence and minimal proximity effect. The SCX1 is characterized by a wide cardioid polar pattern; this, coupled with the high output and sensitivity of the microphone, makes the SCX1 an ideal choice for miking overhead, drums, instruments, room ambiance, orchestral sections, stringed instruments, piano, vibes, and sound effects. The SCX1HC condenser microphone is a number one choice for miking hi-hat both live and in the studio.
Other features include a 21 mm gold vapor capsule, miniaturized electronics, and an extremely small footprint. The SCX1 will handle sound pressure levels of 130 dB and will provide up to 20 dB of ambient noise rejection. In addition to acoustic instruments, the SCX1 is an excellent choice for group vocals, speech, or Foley work. The SCX1HC has become a popular choice for interior dialogue boom pole miking. It has a precision machined brass body, interchangeable capsules, black multi-layer class ‘A’ liquid finish, and a gold-plated XLR connector. The SCX1-O omni studio condenser microphone is manufactured to exacting standards and tight tolerances.
Designed, machined, assembled, and tested by Audix in the USA.
Specifcations
Transducer Type | Condenser |
---|---|
Frequency Response | 40 Hz – 20 kHz |
Polar Pattern | Omni |
Output Impedance | 200 ohms |
Sensitivity | (O) mV / Pa @ 1k |
Equivalent Noise Level | 14 dB (A-weighted) |
Signal to Noise Ratio | 80 dB |
Maximum SPL | ≥130 dB |
Dynamic Range | 116 dB |
Power Requirements | 48-52 V phantom |
Connector | 3-pin XLRm |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Materials / Finish | Machined Brass / Black Finish |
Weight | 114 g / 4 oz |
Length | 104 mm / 4.1 in |
Type: Condenser Microphones
