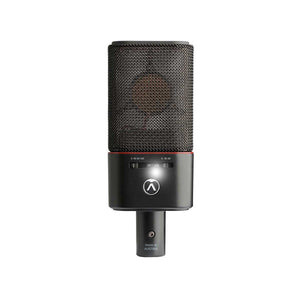

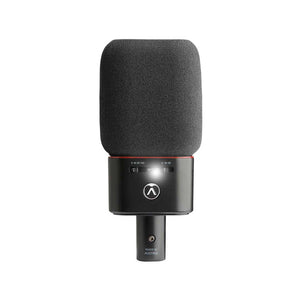

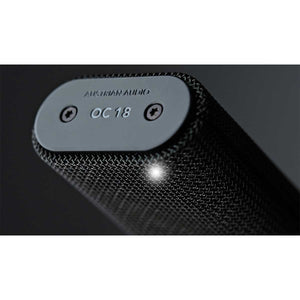

Austrian Audio OC18 Cardioid Pattern Precision Microphone

Name: Austrian Audio OC18 Cardioid Pattern Precision Microphone
Brand: Austrian Audio
SKU: OC18
Price: 1249.0 AUD
Availability: InStock

Engineered and manufactured in Austria, its high sensitivity and low self-noise means it can handle everything from a whisper, to extreme SPLs without distortion, making it the perfect choice for studio, live and broadcast applications. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or paired with any OC818 set in cardioid mode.

Features

Classic cardioid
Handcrafted CKR6 ceramic capsule like the CKR12 capsule, but with single diaphragm

Technical Specifications

Directional characteristics: Single

Impedance: 275 Ω (symmetrical)

Polar pattern: Cardioid

Load impedance: > 1 kΩ

Frequency range: 20 Hz - 20 kHz

Supply voltage: 48 V (< 2.2mA)

Sensitivity (all directions): 13mV/Pa

Main Connector: XLR 3 pin

Equivalent noise level: 9 dB SPL (A)

Max SPL: 148 dB SPL (158 dB SPL)

Dimensions: 157 x 63 x 35 mm

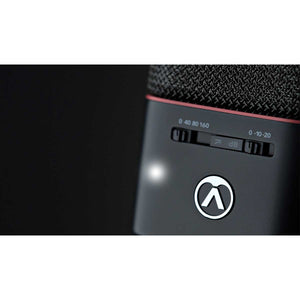

Switchable pad: -10 dB, -20 dB

Weight: 335 g

Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)

Every Austrian Audio OC18 and OC818 is within 1dB of each other,

Making any two microphones a stereo pair

Type: Condenser Microphones
