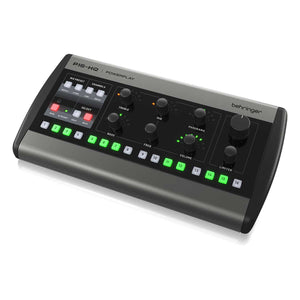

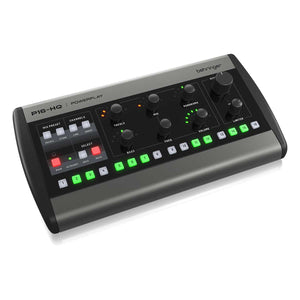

Behringer Powerplay P16-HQ Personal Monitoring Mixer


The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.

Features

  • 16-Channel Personal Monitoring Mixer

  • Easily create highest-quality personalized monitor mixes from 16-channel input stream

  • Excellent new 114 dB D/A converter for noise free output even at high levels

  • New high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears

  • Intuitive control surface with total recall and pre-sets for custom mixes

  • 16 backlit channel select buttons for immediate access

  • Level and Panorama/Balance control with LED indicators

  • 3-band EQ per channel and main with adjustable mid-band frequency

  • Solo and Mute functions per channel and main

  • Output limiter for hearing protection

Flexible and Full of Character

The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.

Complete Control

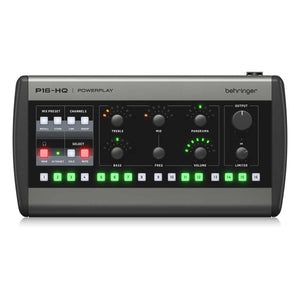

The P16-HQ sports a new look while maintaining the intuitive control surface that made P16-M so popular! All surface controls such as the 16 channel buttons, level, pan/balance controls have their own backlighting and LED indicators. All knobs and buttons are easily visible thanks to the backlighting and LED indicators added across the control surface. This allows the user to adjust on-the-fly, even on a dimly lit stage.

Additional Features

Controls on the P16-HQ include:

  • Level and Panorama/Balance
  • 3-band EQ per channel
  • Adjustable mid-band frequency on main channel
  • Solo and Mute functions per channel

Specification

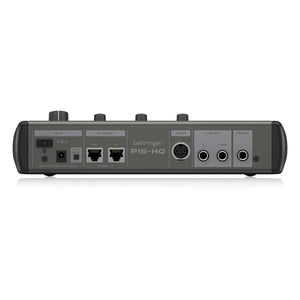

Phones

1/4" TRS, stereo

Line out

2 x 1/4" TS, unbalanced

Ultranet Thru / In

2 x RJ45

MIDI in

5-pin MIDI connector

Performance Line Out
Frequency response

20 Hz - 20 kHz (+0 / -0.5 dB)

THD+N

0.002 % typ.

Residual noise

-99 dBu unweighted /
-102 a-weighted

Crosstalk L / R

<-75 dB

Output impedance

1 kΩ

Max. output level

+12.5 dBu @ 200 kΩ load /
+2,7 dBu @ 600 Ω load

Performance Phones Out
Frequency response

20 Hz - 20 kHz (+0 / -0.1 dB)

THD+N

typ. 0.002 % / 0.007 % @
350 mW output power

Residual noise

-94.5 dBu unweighted /
-97.5 dBu A-weighted

Crosstalk L / R

<-90 dB

Max. output level

50 mW @ 600 Ω load
100 mW @ 300 Ω load
400 mW @ 30 Ω load

Controls
Equalizer

Bass:  ±12 dB @ 100 Hz, shelving
Mid:  ±12 dB, semi-parametric
Frequency:  100 Hz to 10 kHz, adjustable
Treble:  ±12 dB @ 10 kHz

Output

Limiter:  Ratio ∞: 1
Level:  -20 to +15 dBu (Phones)
