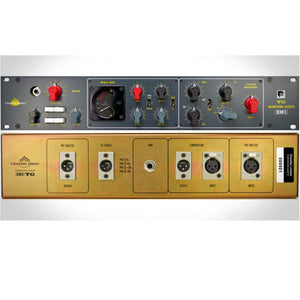

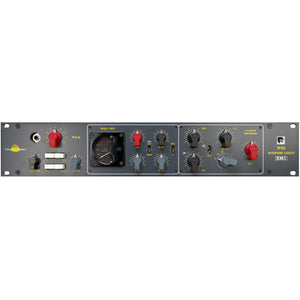

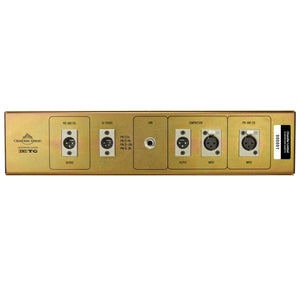

Chandler Limited TG Microphone Cassette
The Chandler Limited TG microphone Cassette IS literally a single channels strip with all the bells and whistles taken directly from the classic EMI/Abbey Road Studios TG12345 console design. The Australian distributor has bundled the unit with its' required power supply - usually sold separately. The Chandler Limited TG Microphone Cassette combines a TG2 microphone preamplifier, TG1 limiter and the Curve Bender EQ. This is possibly the closest you can come to having that classic 60's sound. The TG Microphone Cassette fits into a 2-unit rack-space, making it ideal for any sized studio.
Please Note: Power supply included.
Type: Preamps/Channel Strips
-
-
TG Microphone Cassette PRODUCT FEATURES:
PRE-AMP
The pre-amp section of the TG Microphone Cassette makes use of the Chandler Limited TG2 pre-amplifier based on the vintage EMI TG12428. The TG2 pre-amp section includes switchable coarse and variable fine gain adjustment controls for up to +70db overall gain, selectable LINE, DI, 48V phantom power, phase reverse, and switchable rumble filter (low cut.)The TG2 pre-amp section is coupled directly to the Curve Bender equalizer section.
EQ
The TG Microphone Cassette’s equalizer section is derived from the famed and greatly expanded Chandler Limited EMI TG12345 Curve Bender EQ. The Curve Bender EQ section provides Hi and Low shelf, frequency selectable presence, output control, and bypass functionality.The Curve Bender EQ section is the second stage of the TG2 pre-amp section, and the EQ output control works as a fader would on a console.
LIMITER
The compressor/limiter section of the TG Microphone Cassette is a special adaptation of the Chandler Limited TG1 Limiter tracing its lineage to the historic EMI TG12413 mixing and mastering console limiters.EMI technical engineers experimented with the use of optos in their audio compressors, and now for the first time ever Chandler Limited introduces the TG1 Opto Limiter.
The TG1 Opto Limiter section of the TG Microphone Cassette is patchable apart from the TG pre-amp and EQ, allowing for independent use of the compressor/limiter on other sources. The TG1 Opto is stereo linkable to a second unit via a standard ¼” cable.
The TG1 Opto Limiter’s feature-set includes: HOLD, Attack, Release, selectable sharp/rounded knee, output or makeup gain, and true bypass.
-
TG Microphone Cassette TECHNICAL SPECIFICATIONS:
Channels
Mono
TG2 Preamp
Transistor amplifier
Mic/Line
XLR Input (Transformer balanced, Mic 300Ω Impedance)
DI
1/4” Unbalanced
Maximum gain
+70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable ±10db)
Rumble Filter (Low Cut)
6 Frequencies (Out, 33,41,47,65,82,110hz)
Phantom power, Phase
Phantom (+48V), Phase( 0/180º)
Curve Bender EQ
Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k,3.6k,6.5k), Output control, Bypass, XLR Output
TG1 Opto Limiter
Independently patachable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4” Jack)
POWER
All TG units require and function on the PSU-1, Chandler Limited power supply (included). The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).
