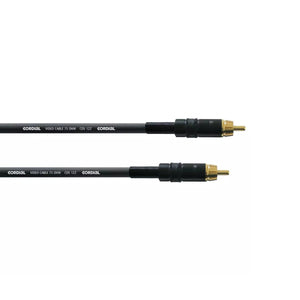

CL-CPDS5CC
Specifically for our S/PDIF Digital Interface Cable CPDS CC, we developed the (word clock) bulk cable CDS 122 (7x 0.20 mm conductor structure, a conductor cross-section of 0.22 mm², 75 ohms characteristic impedance). The conical, gold plated Cinch connectors are from REAN made by Neutrik®. They are often used for the low-loss connection of digital terminals in the studio, DJ, and consumer electronics sectors.
The SPDIF standard and word clock require a characteristic impedance of 75 ohms, AES/EBU 110 ohms. Only then digital audio transmission via cable will be absolutely interference-free. The CPDS CC is fine-tuned to meet exactly these specific requirements.
Cable: CDS 122
Jacket: PVC

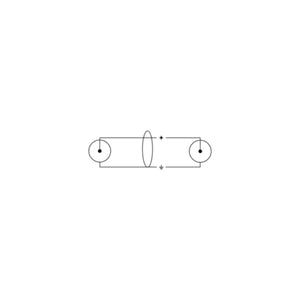

Cable assign: CC
Connector Brand: REAN ®
Plugs: 1 Cinch-RCA 1 Cinch-RCA
Conductor area |
0.22 mm² |
AWG |
AWG 24 |
Composition of conductor |
7 x 0.22 mm |
Material |
bare copper |
Conductor resistance |
82 Ω / m |
Shielding |
bare copper braided screen |
Capacity cond.-cond. (pF/m) |
< 67 pF/m |
category |
COAX |
diameter |
6.1 mm |
weight |
45 g/m |
Conductor isolation |
PE |
Type: Cables & Connectors
