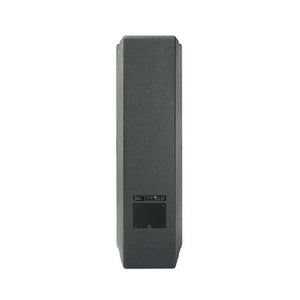

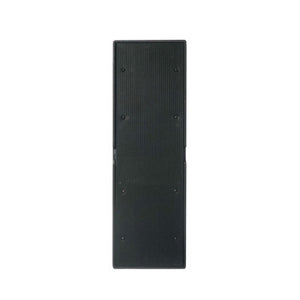

DB Technologies Passive speaker, 2x6.5’’+driver, 8ohms, 250W RMS Power, 2 coverage options, Blk

IS26T is equipped with two times 6.5" woofers plus a 1" compression driver for the higher end.

2 different coverage options are available, with the two different coverage options providing respectively 60 x90 or a 15 x100 dispersion pattern, which basically, thanks to a waveguide, is turning the point source speaker into a line array.

You can either fly, or stack arrays with the very same accessories you would use with the VIO X206.

Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix or Speakon connectors, black or white version.

*Available in black or white finish.

Features

• Passive 2-way speaker
• 60x90° rotatable horn version
• 100x15° arrayable version with waveguide
• Vertical or line array use
• Black or white version available
• Phoenix connectors

Specifications

Technical Data

• Speaker Type: Passive 2-way Speaker

Acoustical Data

• RMS Power: 250 W
• Peak Power: 1000 W
• Frequency Response [-6 dB]: 80 hz - 20,000 Hz
• Impedance: 8 Ohm
• Sensitivity 1W@m: 94 dB
• Max SPL: 124 dB
• HF: 1x 1", 1.7" v.c.
• LF: 2x 6.5", 1.7" v.c.
• IS26T Dispersion: 60x90° [rotatable horn]
• IS26T100 Dispersion: 15x100° [H x V]
• X-Over Frequency: 1200 Hz (internal X-Over)

Input

• Connections: Speakon or Phoenix version available

Mechanics

• Housing: Plywood, water-painted coating
• Rigging points: 2x M10 threaded nut (top and bottom)
• Width: 210 mm (8.3 in)
• Height: 650 mm (25.6 in)
• Depth: 270 mm (10.6 in)
• Weight: 15.5 kg (34.17 lbs)
