DP-6061-OC-U-F00

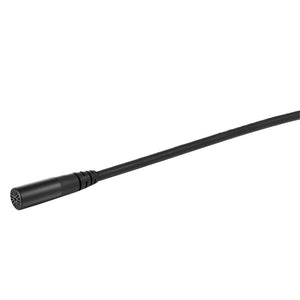

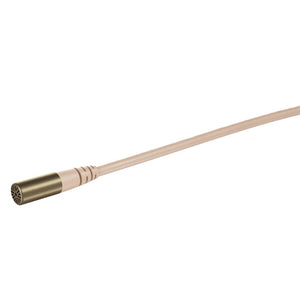

DPA d:screet 6061 Series Subminiature Microphone
The DPA d:screet 6061 Subminiature Microphones are just 3 mm (0.12 in) in size. What they lack in size, they more than make up for in clarity, consistency and durability. The 6061 can handle high SPL levels from very loud sound sources, and is typically used as a hidden head-mounted mic in theater and stage use.
Type: Condenser Microphones
-
-
DPA d:screet 6061 Product Features:
Amazing 3 mm CORE capsule technology
Renowned DPA sound in a 60% smaller package
Stainless steel, PVD-coated mic housing
Modular adapter system fits most professional wireless systems
-
DPA d:screet 6061 Technical Specifications:
Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB
40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 68 dB(A)
Total harmonic distortion (THD)
< 1% up to 128 dB SPL peak
Dynamic range
Typ. 102 dB
Max. SPL, peak before clipping
144 dB
Output impedance
From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)
Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
Connector
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color
Black or beige
Weight
8 g (0.29 oz) incl. Cable and MicroDot connector
Microphone head size (h x w x d)
3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter
3.4 / 14.4 mm (0.13 / 0.57 in)
Cable length
1.8 m (5.9 ft)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
