$899.00$1,059.00
DP-MMA-A

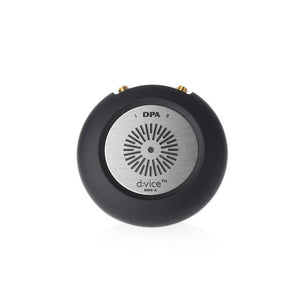

DPA Microphones d:vice™ MMA-A Digital Audio Interface
The d:vice™ MMA-A Digital Audio Interface is a high-quality, dual-channel microphone preamplifier and A/D converter that captures crystal-clear audio via your favourite recording/broadcasting apps. The d:vice™ can be used with all DPA microphones with a MicroDot connector. This flexibility allows any content creator to use the equipment for unexpected situations that might arise during the day. Whether it be a two-channel interview situation or a session of stereo recording ambience sound, the d:vice™ makes it easier for you to do your job.
Type: iOS Audio Interfaces
-
-
Features:

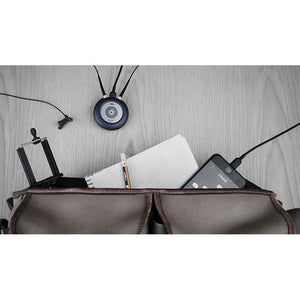

At about two inches in diameter, the d:vice™ is ultra-compact, easily fitting in your pocket. It provides best-in-class audio quality and is controlled through a remote application on any iOS device. An exclusive DPA app is available for download from the Apple® App Store. The app allows you to store gain settings and low-cut filters for ongoing and future personalized use in dedicated presets. Third-party applications can be used to accomplish specific tasks, including but not limited to, live broadcast and high-quality recordings.
The d:vice™ MMA-A comes with one Micro USB-B to iOS (Lightning) and one Micro USB-B to PC / Mac (USB-A) cable. Its MicroDot inputs allow it to be connected to all DPA miniature microphones, including thed:screet™ Miniature,d:fine™ Headset,d:vote™ Instrument and even thed:dicate™ Recording microphones with the optionalMMP-G preamp.
-
Specifications:
Noise floor
-114 dBFS, A-weighted
Frequency range
20-22 kHz ±0.2 dB (Fs = 48 kHz). 20-40 kHz ±0.2 dB (Fs = 96 kHz)
Total harmonic distortion (THD)
THD < -100 dB, 0.001% @ 1 kHz @ -10 dBFs
Dynamic range
Typ. 114 dB
Full Scale Output
1 Vrms @ 0 dB Gain
Supported sample rates
44.1, 48 (default), 88.2, 96 kHz. Sample rates can be set by 3rd-party app
Resolution
24 bit
Filter (low cut / high pass)
2th Order @ 80 Hz, individual per channel
Weight
50 g (1.8 oz)
Diameter
56 mm (2.2 in)
Temperature range
0°C to 45°C (32°F to 113°F)
Current consumption
<100 mA (The d:vice™ gains power via the apparatus it is connected to. This equates to approx. 6-7 hours of audio capture tested on a new iPhone 6 or 7.)
-
System Requirements:
Compatible with Mac / PC / iOS
Requirements
iOS version: 10 or later. Connection / Power: Lightning & USB 2.0
Made for
iPhone 7 Plus, iPhone 7, iPhone 6s, iPhone 6, iPhone 5, iPad Pro (12.9-inch), iPad Air, iPad Air 2, iPad mini 4, iPod touch (6th gen).
** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
