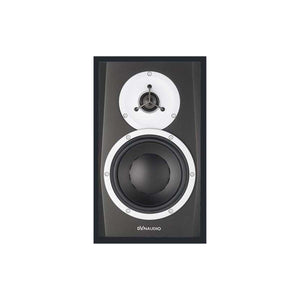

7" Nearfield Monitor
DY-BM5-MK3
The BM5 mkIII is the next generation of the tremendously successful BM5A MKII. With greater SPL, broader frequency and power response compared to the previous model, its ultra-high dynamic range and hand-crafted drivers deliver performance superior to many larger, more expensive monitors.
Type: Active Studio Monitors
A large-diameter voice coil surrounds the magnet for superior linearity. Aluminium voice coil former and wire are low mass so the transient response is quick and accurate. The diaphragm and dust cap are moulded as one piece in patented low-mass, highly rigid Magnesium Silicate Polymer providing unrivalled accuracy.
7" Nearfield Monitor
Handcrafted drivers with aluminium voice coils
Class-D Amplification with DSP

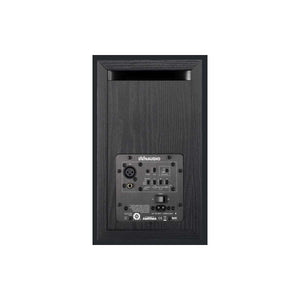

Flexible operation with XLR and RCA inputs
Made in Denmark
System: | Two-way Active Precision Nearfield Monitor |
---|---|
Frequency Response (±3dB): | 42Hz – 24kHz |
Input level for 85 dB SPL @ 1m: | 100mVrms |
Max SPL 1m, normal room: | 118dB peak |
Power consumption: | Standby: 0.3W Idle: 5.8 Max: 94 W |
Amplifier power: | Tweeter: 50W Woofer: 50W |
Resonance Frequency: | 45Hz |
Principle: | Bass reflex |
---|---|
Crossover Frequencies: | 1900Hz |
Crossover Slope: | 12dB/oct |
Tweeter: | D-281 - 28 mm soft dome, rear chamber, magnetic fluid 4 mm aluminium front Pure aluminium wire voice coil |
Woofer: | 165mm moulded aluminium frame/ one piece thermoformed MSP cone 75 mm voice coil with pure aluminium wire on aluminium former |
Weight: | 7,7kg / 16.9lbs |
Dimensions (W x H x D): | 186 x 320 x 296mm / 7.3” x 12.5” x 11.6” |
