GRA-Bix

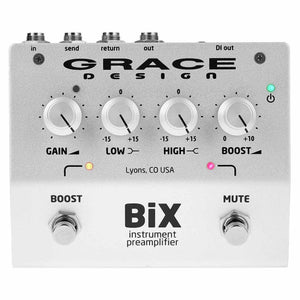

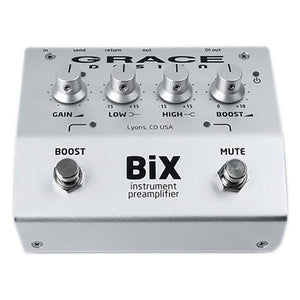

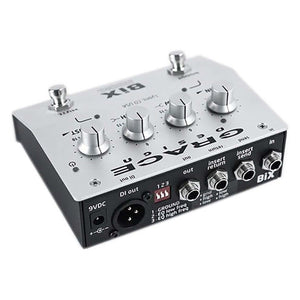

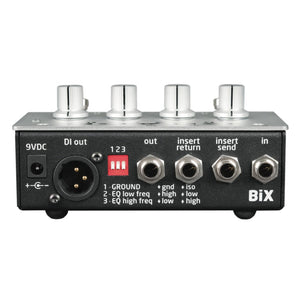

Grace Design BiX Studio Quality Instrument Preamp / EQ / DI / Boost
BiX by Grace Design is an instrument pre-amp designed for all types of acoustic guitars with DI connectors and basses. BiX offers the same transparent, clear and detailed sound reproduction of Grace Designs’ more high-end FELix and LliX instrument pre-amps. Other features include simple-to-operate EQ controls, send and return insert points, balanced and unbalanced outputs, and it runs off 9VDC power making it pedalboard friendly.
Type: Preamps/Channel Strips
-
-
Grace Design BiX PRODUCT FEATURES:
1/4" high impedance input
Separate FX send and return
1/4" unbalanced line output
Balanced XLR DI transformer iso output
10dB variable boost
Mute and Boost footswitches
High and Low shelving EQ
Selectable EQ transition frequencies
9VDC operation
Over 30V internal operating voltage
Pedalboard friendly design
5 year transferable warranty
Made in the USA -
Grace Design BiX TECHNICAL SPECIFICATIONS:
GAIN RANGE
Line Output: 0dB to +37dB
DI Output, Level: Line: -29dB to +8dB
Boost: 0dB to +12dB
EQ
Gain: +/-15dB
Low Frequency (Low Range): 100Hz
Low Frequency (High Range): 200Hz
High Frequency (Low Range): 2kHz
High Frequency (High Range): 4kHz
POWER
Connector: 2.1mm Center Negative
Nominal Input Voltage: 9VDC
Nominal Input Current: 150mA
Input Voltage Range: 6VDC - 12VDC
WEIGHT and DIMENSIONS
0.55kg, H 6.35cm x W 13.0cm x D 11.4cm
