IK Multimedia AXE I/O Solo. Compact audio interface with advanced guitar tone shaping
Type: iOS Audio Interfaces
AXE I/O, IK’s award-winning audio interface, set a new standard for guitar-oriented recording interfaces. Now AXE I/O Solo brings the same great tone shaping, convenient features and premium sound to everyone, everywhere, in a compact and affordable 2-in / 3-out format.
Key Features
- 2-in / 3-out USB audio interface
- ACTIVE/PASSIVE pick-up selector
- PURE and JFET input stages
- Z-Tone® impedance-adapting circuit
- Amp Out for reamplification or Tone Modeling using TONEX for Mac/PC
- Comes with AmpliTube 5 SE and TONEX SE for Mac/PC
- High-resolution, Class A mic preamp
- 24-bit, 192 kHz sound quality
- Wide frequency response ideal for instruments
- Best-in-class analog/digital conversion
- The ultra-low noise floor for high-gain recording
- Designed and made in Italy
Specifications
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
- Host Connection: USB Type-B receptacle. USB 2.0 (High Speed).
Line Outputs 1-2 (Monitor)
- Configuration: Electronically balanced and floating, automatically compensates level when the connection is balanced or unbalanced, tip hot.
- Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
- Output Level: 0 dBFS corresponds to +13.5 dBu
- Frequency response: From 1 Hz to 46 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 113 dB(A)
- THD @ -1 dBFS: 0.001%
- THD+N: -103 dB(A) at -1 dBFS
- Channels 1-2 crosstalk: 112 dB(A)
Output 3 (Amp output)
- Configuration: Unbalanced, floating, with selectable ground lift
- Output impedance: 75 Ohms
- Output Level: 0 dBFS corresponds to -3 dBu
- Frequency response: From 20 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 106 dB(A)
- THD+N: -93 dB(A)
Headphones Out
- Output impedance: Virtually ideal source (zero Ohms) until clipping
- Maximum Output Level: +9 dBu into 50 Ohms load (approx 95 mW)
- Frequency response: From 1 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 111 dB(A)
- THD+N: -102 dB(A)
Instrument Input
- Configuration: Multiple topology instrument preamp
- Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
- Input impedance, ACTIVE mode: 10 kOhms
- Input level, min gain: 0 dBFS is obtained with a +12.5dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -19 dBu signal at the TS input
- Frequency response: From 6 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD, PURE mode: 0.002 % (-1dBFS input)
- THD, JFET mode: 0.5 %
Mic Input
- Configuration: Class-A discrete differential microphone preamp, pin 2 hot
- Input impedance: 4 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +9 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -44 dBu signal at the XLR input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Line Input
- Configuration: Class-A discrete differential line receiver, tip hot
- Input impedance: 20 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
- Input level, max gain: 0 dBFS is obtained with a -27 dBu signal at the TRS input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Connections and Controls

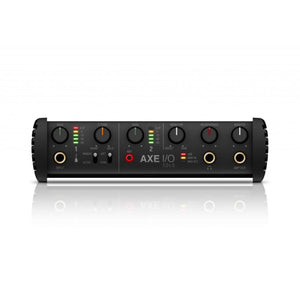

Front Panel
- One 1/4" instrument input jacks
- Two analog potentiometers for Input GAIN
- Two 5 segments input level meter (peak)
- Analog potentiometers for Z-Tone control
- Pick-Up selector (PASSIVE/ACTIVE)
- Preamp topology selector (JFET/PURE)
- +48V phantom power switch
- USB LEDS
- MIDI IN/OUT LEDs
- Monitor knob
- 1/4" headphones output jack
- Master potentiometer for main output control
- 1/4" Amp output jack

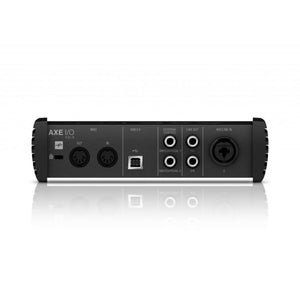

Rear Panel
- MIDI I/O 5-pin DIN connectors
- B-Type USB socket for connecting a computer (Mac/PC)
- 2 x 1/4" TRS External controllers sockets
- 2 x 1/4" TRS Balanced floating line outputs
- 1 Combo socket for MIC input and Line input (auto-selecting)
Package includes
- AXE I/O SOLO
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
Dimensions
Size: 19.5cm x 19.5cm x 5.3cm
Weight: 1.0kg
Compatibility
Computers: 64-bit application. Requires a 64-bit CPU and Operating System.
Mac®(64-bits)
Minimal: macOS 10.11 or later. One free USB port.
Windows® (64-bits)
Minimal: Windows 7 or later. One free USB port.
