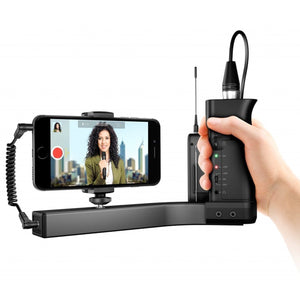

IK Multimedia iKlip A/V Smartphone Broadcast Mount
The IK Multimedia iKlip A/V is a hand-held or tripod mounting system for smartphones and small cam-corders, that has an in-built microphone preamp with gain control, phantom power and a headphone out. You can connect a dynamic or condenser microphone that can be wired or wireless.
Please Note: iPhone/smartphone & wireless equipment NOT included.
Type: Microphone Accessories
-
-
IK Multimedia iKlip A/V Features:
Professional audio and video broadcast recording system for smartphones
XLR mic preamp with phantom power and gain
Integrated wireless receiver support
1/8” TRRS analog audio output
Headphone output for real-time monitoring
Standard UNC 1/4”-20 tripod and camera mount threads
Powered by two standard AA batteries -
IK Multimedia iKlip A/V Specifications:
Holds any iPhone, iPod touch and Smartphone model with screens ranging in size from 3.5” to 6” with case on
Works with Digital Cameras, Field Recorders and devices compatible with standard UNC 1/4”-20 thread
Standard UNC 1/4”-20 thread mount
Frequency response: from 20 Hz to 20 kHz +/- 1.5dB
Noise: -98 dB fullband, phantom power ON
Maximum output level: 2 Vrms
Distortion: 0.025% THD
Phantom max current: 6mA
Battery duration (Alkaline AA): approx 60 hours when phantom is off, approx 20 hours when phantom is on
Material: Thermoplastic / Aluminum
Package includes:
iKlip A/V
1/8” TRRS to 1/8” TRRS cable
Holding bracket
Wireless mic receiver and XLR cable are not included
Dimensions:
Weight: 353g / 12.45oz
1/8” TRRS to 1/8” TRRS cable lenght: 20cm / 7.87”
Holding bracket width: 54mm (min) - 91mm (max) / 2.13” (min) - 3.58” (max)
Wireless mic receiver support size: 62mm x 31mm / 2.44” x 1.22” -
IK Multimedia iKlip A/V System Requirements:
iOS Devices:
Compatible with iPhone 7 Plus*, iPhone 7*, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPhone 3GS, iPod touch (6th, 5th, 4th and 3rd generation). iOS 4.3 or later is required.
* Requires use of Apple's Lightning to 3.5 mm Headphone Jack Adapter (TRRS).
Android Devices:
Compatible with any Smartphone model with screens ranging in size from 3.5” to 6” with case on.
To be compatible, the mobile device must be compliant with the CTIA/AHJ wiring standard, which is illustrated as follows. As of today, all popular Android devices branded Samsung, LG, Motorola, Google Nexus, HTC, Huawei, Sony, Lenovo, Xiaomi and more, use this standard.
** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
