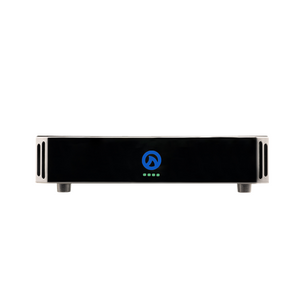

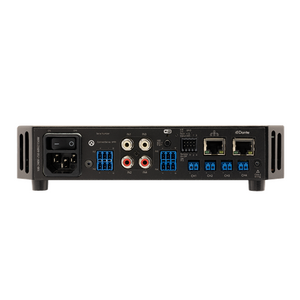

LEA Professional 120w x 4, 70v/100v/lowz connect 124

SMART AMP | 4 CHANNELS | 120 WATTS PER CHANNEL
The CONNECTSERIES 124 is a 4-channel amplifier with 120 watts per channel in a ½ rack space form factor. As part of the Network CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 124 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there’s the Cloud…Network CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.  Register for your free LEA Cloud account at leaprofessional.cloud

POWER RATING

• MODEL: CONNECT 124
• CH COUNT: 4
• 2Ω: 60W
• 4Ω: 120W
• 8Ω: 120W
• 25V: 120W
• 70V / 100V: 120W

FEATURES

• 3 WAYS TO CONNECT
  1. Built-in Wi-Fi Access Point
  2. Existing Wi-Fi Network
  3. Local Area Network
• WEB BROWSER-BASED UI
  Works on any web browser on any device with no software downloads
• CLOUD CONTROL
  Remote control and monitoring from anywhere in the world — no VPN needed.
• DIRECT LOW-Z & HI-Z
  70V or 100V selectable per channel
• SMART POWER BRIDGE
  Double the power any any single channel without sacrificing other amp channels
• UNIVERSAL SWITCH-MODE POWER SUPPLY
  Operation from 100VAC – 240VAC +/-15%
• ANALOG BALANCED OR UNBALANCED INPUTS
  Fully routable balanced or unbalanced RCA analog inputs via input matrix and input mixer in Web UI, SharkWare, or Cloud platform
• 96KHZ ANALOG DEVICES DSP
  Input Routing
  48dB/Oct crossover filters
  8 Parametric EQ filters
  User-adjustable speaker limiters
  Real-time load monitoring
• EXTERNAL I/O PORT
  For Remote ON/OFF and Fault Monitoring, and 4 General Purpose I/O ports coming soon
• HIGHLY EFFICIENT CLASS-D OUTPUT STAGE
  For low AC Current Draw

AUDIO SPECIFICATIONS

• INPUTS
  • Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
  • 4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
  • ***Note - Unbalanced and RCA inputs share the same analog input channel
• THD+N
  • 0.1% (20Hz to 20kHz)
• FREQUENCY RESPONSE
  • 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
• SIGNAL TO NOISE LEVEL
  • 102dB (20Hz to 20kHz referenced to 8Ω)
• CROSSTALK
  • 70dB (20Hz to 20kHz)
• AMPLIFIER OUTPUT CLASSIFICATION
  • Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel

DSP

• DSP ARCHITECTURE
  • Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
• INPUT MATRIX
  • Routable matrix; any input to any output with primary and secondary input priority
• CROSSOVERS
  • Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
• PARAMETRIC EQ
  • 8 Band Parametric EQ per channel
• OUTPUT DELAY
  • 100ms per channel
• OUTPUT PROTECTION
  • DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
• USER ADJUSTABLE LIMITING
  • Peak Voltage and RMS Voltage
• LOAD MONITORING
  • Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

CONTROL, MONITORING, NETWORKING

• USER INTERFACE
  • Web Browser User Interface, 3rd Party API control, Cloud control, or SharkWare
• EXTERNAL I/O
  • External I/O In: Toggles Remote On/Off
  • External I/O Out: Indicates Amplifier Health
  • 4 general Purpose input and output pins for general input
  • Triggering and output statuses - Coming Soon

OPERATION

• AC MAINS
  • 100VAC - 240VAC +/- 15% 50Hz or 60Hz
• POWER SUPPLY
  • Universal Switch Mode Power Supply

PHYSICAL SPEC

• DIMENSIONS (L X W X H)
  • Product: 11.82” x 8.58” x 1.71" (300.11mm x 218mm x 43.5mm)
  • Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm)
• WEIGHT
  • 7lbs / 4.1kg | Shipping: Coming Soon
• COOLING
  • Front to Rear Variable Fan Speed Cooling
  • Fan Noise at idle is 50dB @ 1m
  • Fan Noise at 50% is 57dB @1m
  • Fan Noise at full speed is 63dB @ 1m
