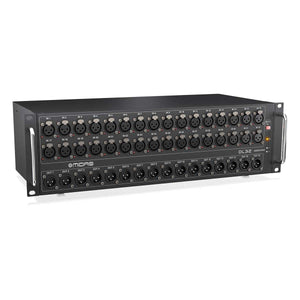

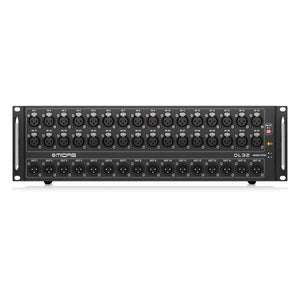

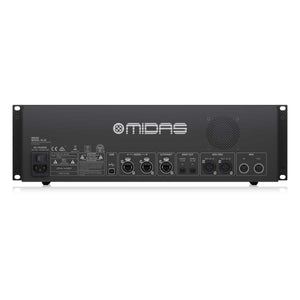

MIDAS DL32 32 Input, 16 Output Stage Box with 32 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces
Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While Klark Teknik, the industry leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.
Type: Digital Snake
Features
-
32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
-
16 electronically balanced low impedance line-level outputs
-
ULTRANET personal monitoring system connectivity for in-ear applications
-
Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
-
Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes no merger or router required
-
Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
-
Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
-
2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
-
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
-
Mute All function for quietly patching any inputs on stage
-
MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
-
Features Neutrik etherCON* AES50 and ULTRANET network ports
-
Rugged 3U rackmount chassis for durability in portable applications
-
Auto-ranging universal switch-mode power supply
-
10-Year Warranty Program*
-
Designed and engineered in the U.K.
