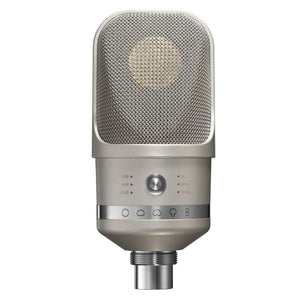

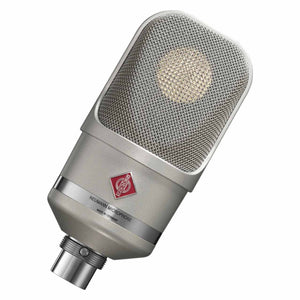

Neumann TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone
The Neumann TLM 107 is a large-diaphragm studio condenser microphone. The TLM 107 is the multi-pattern cousin of the popular Neumann TLM 103 cardioid condenser; although the TLM 107 has a newly designed capsule. The TLM 107 has five fixed polar patterns, selectable on the rear of the body. Incredibly versatile, you can record with the TLM 107 in omnidirectional, wide cardioid, cardioid, hyper cardioid or as a bidirectional microphone. The TLM 107 also offers attenuation and a low cut frequency filter.

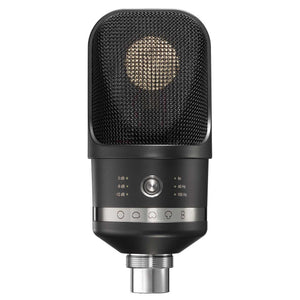

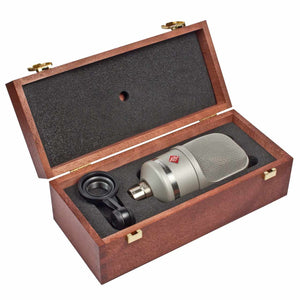

Includes Neumann SG2 swivel mount & wooden box - Available in Nickel or Black
Type: Condenser Microphones
-
-
Neumann TLM 107 PRODUCT FEATURES:
Multi-faceted versatility, no-compromise sound and innovative operation: With five directional characteristics and a novel operating concept, the TLM 107 provides sound without any coloration. Featuring equally impressive level handling and low self-noise, it captures everything from the softest whisper to thundering drums.
Multipattern large diaphragm microphone with 5 polar patterns (omni, wide cardioid, cardioid, hypercardioid, figure-eight)
Navigation switch with LED illuminated display for polar pattern, PAD and low cut
Sound characteristics: transparent, natural reproduction of human voice, outstanding transient response
Balanced sound in all 5 polar pattern settings -
Neumann TLM 107 TECHNICAL SPECIFICATIONS:
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohms: 11 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR1): 22 dB
Equivalent noise level, A-weighted1): 10 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 84 dB
Maximum SPL for THD < 0.5%2): 141 dB
Maximum SPL for THD < 0.5%2) with pre-attenuation -6 dB: 147 dB
Maximum SPL for THD < 0.5%2) with pre-attenuation -12 dB: 153 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3.2 mA
Matching connectors: XLR3F
Weight: 445 g
Diameter: 64 mm
Length: 145 mm
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal
