008605

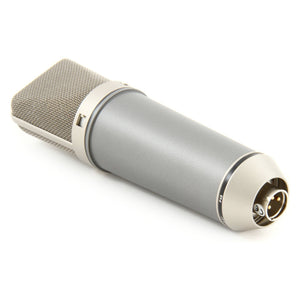

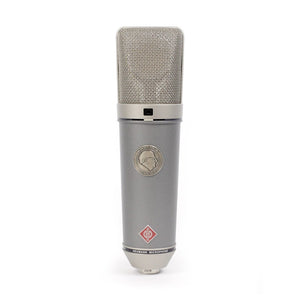

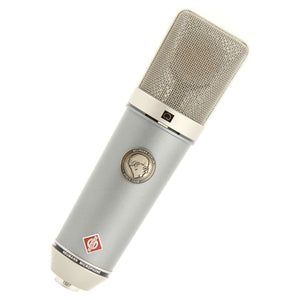

Neumann TLM 67 - Multi-pattern Studio Condenser Microphone

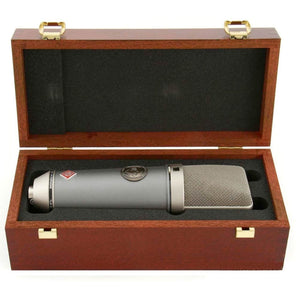

The Neumann TLM 67 is a large diaphragm, side address studio condenser microphone that features three fixed polar patterns. Cardioid, Omni directional and figre-8. The TLM 67 is a modern recreation of the infamous U 67 - a studio workhorse during the 1960’s. The TLM 67 uses the K 67 capsule. Neumann have re-designed the circuit to emulate the tonal character of the original, as a solid-state version of the U 67. The TLM 67 ships with a nice wooden case and mic-clip.
Type: Condenser Microphones
-
-
Neumann TLM 67 Features:
A further development of the classic U 87. The 5 directional characteristics, 2-level low-cut filter and switchable pre-attenuation provide maximum flexibility.
Acoustic features:
The microphone is addressed from the front, marked with the Neumann logo. The large diaphragm capsule has a very smooth frequency response for all polar patterns over a wide acceptance angle. The frequency response curves are flat up to 10 kHz within a pickup angle of ± 100°.
As a result the U 89 i has a very even diffuse-field response for all polar patterns. This is important in a reverberant environment when more reflections arrive at the microphone capsule. The acoustic information is not affected in its tonal quality when recorded by the microphone.
This characteristic is achieved without resorting to corrective resonance effects.
The capsule it is elastically mounted to avoid any structure borne noise that could interfere with its operation.
Feature Summary:
Variable large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Thereby most versatile in all recording situations
Two-stage roll-off filter
Switchable 6 dB pre-attenuation
Extended frequency range in comparison to U 87 Ai
Application Hints:
A microphone for universal usage
Use as spot mic for wind instruments, strings, piano
These are just some of the most common applications. We recommend additional experimentation to gain maximum use from this microphone. -
Neumann TLM 67 Specifications:
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omni/cardioid/figure-8
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 29/24/30 dB
Equivalent noise level, A-weighted1): 16/11/17 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 65/70/64 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 78/83/77 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %2): 110/105/111 dB
Maximum SPL (tube characteristic) for THD < 5 %2): 130/125/131 dB
Maximum output voltage: -1 dBu
Power supply: P48
Matching connector: XLR 3F
Weight: 490 g
Diameter: 56 mm
Length: 200 mm
1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal, k2 dominant
