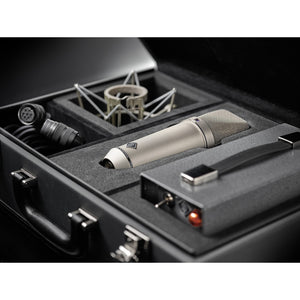

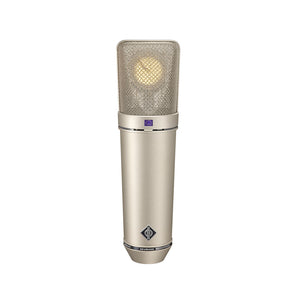

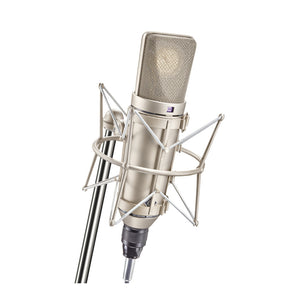

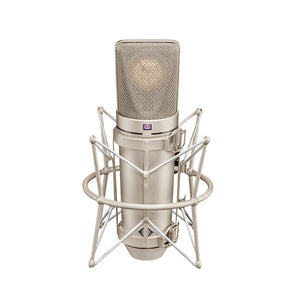

Neumann U67 Studio Tube Microphone Set

Notify me when this product is available:

Introduced in 1960, the U 67 was the quintessential studio workhorse
throughout the formative years of modern music. Today, more than ever,
its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann’s legendary tube microphone is back in production, built to the original specifications. The U 67 is a universal studio microphone suitable for all applications. Its smooth top end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns – Omni, cardioid, and figure-8 – the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.

PLEASE CONTACT US BEFORE ORDERING!

Features

  • Classic tube circuit, transformer balanced

  • Balanced sound in three polar patterns

  • Meticulously reproduced to original specifications

  • Vintage case, handmade in Germany

  • Reissue of the legendary Neumann U 67

  • Superb vocal microphone for male and female singers

  • Versatile microphone for all kinds of instruments

  • Made to original specifications using archived documentation

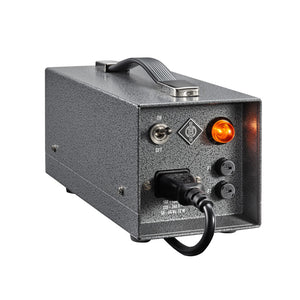

  • New power supply NU 67 V automatically adapts to the local mains voltage

  • Handmade and hand-soldered in German

Specifications



Acoustical operating principle

Pressure gradient transducer

Directional Pattern

Omnidirectional, cardioid, figure-8

Frequency Range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 Kohm

15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8)

Rated Impedance

200 ohms

Rated load impedance

1 Kohms

Equivalent noise level, CCIR 1

32/28/31 dB (Omni/cardioid/8)

Equivalent noise level, A-weighted 2

21/17/20 dB-A (Omni/cardioid/8)

Maximum SPL for THD 0.5% 3

114 dB (cardioid)

Maximum SPL for THD 0.5% with pre-attenuation 4

124 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5

62/66/63 dB (Omni/cardioid/8)

Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6

73/77/74 dB (Omni/cardioid/8)

Maximum output voltage

-9.8 dBu

Power supply

NU 67 V

Matching connector

Microphone: spec. 7pin, Power Supply: XLR 3 F

Weight

560 g

Diameter

56 mm

Length

200 mm
