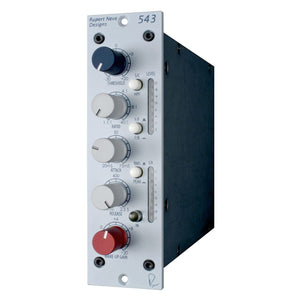

Rupert Neve Designs 543 - 500 Series Compressor
The Rupert Neve Designs 543 is a versatile VCA 500 series mono compressor/limiter, derivative of the RND Portico 5043 compressor. For such a small unit, the flexibility on the 543 is impressive. There are individual controls for threshold, attack, release, makeup gain, side chain high pass filter, along with separate metering for both level and gain reduction. Two 543 modules are able to be linked together to make a stereo bus compressor too.
Type: 500 Series
-
-
Rupert Neve Designs 543 Features:
The 543 Mono Compressor delivers the unobtrusive, musical-sounding dynamic control and brick-wall limiting made famous in the Portico 5043 to the 500 series format. The 543 features a fully controllable compressor-limiter with feed-forward / feedback modes, Peak / RMS detection and a built in side chain high pass filter. With an unrivaled heritage and a tremendous feature set, the 543 yields a combination of rich warmth, flexibility and precision that is sure to resonate in the ears of sound engineers the world over.

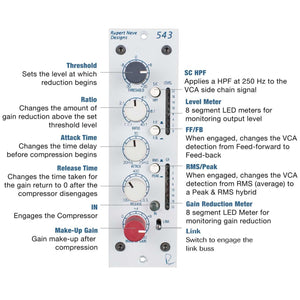

Built around Mr. Rupert Neve’s custom transformer designs, each 543 module encompasses individually controllable threshold, attack, release, makeup gain, ratio, side chain HPF, Feed-Forward / Feed-back selection and Peak/RMS detection modes. With the compressor inactive, the 543 may be used as a transformer-coupled, high-performance line amplifier, and two 543 may be linked for stereo operation as well. The chassis is built to standard 500 series specifications, with power and I/O provided by the rack. -
Rupert Neve Designs 543 Specifications:
Gain Range: Continuously variable from 6 dB to +20 dB.
Threshold Range: Continuously variable from 36 dB to +22 dB.
Ratio Range: Continuously variable from 1.1:1 to Limit (40:1).
Attack Range: Continuously variable from 20mS to 75mS
Release Range: Continuously variable from 100mS to 2.5 Seconds.
FF/FB: Feed-Forward or Feed-Back VCA control.
Maximum Output Level:
Balanced and Floating Transformer Output
Maximum output from 20 Hz to 40 kHz is +23 dBu.
Total Harmonic Distortion and Noise:
@ 1kHz, +20 dBu output level, no load.
Main Output, compressor bypassed
Better than 0.0006%.
Main Output, compressor engaged
Better than 0.02%
Noise:
Measured at Main Output, un-weighted, 22Hz-22kHz, Terminated 40 Ohms.
With Gain at Unity, Compressor disengaged
Better than 103 dBu.
With Gain at Unity, Compressor engaged:
Better than 92 dBu
Frequency Response:
Main Output, Unity Gain
@ 18 Hz, +/- .1dB
@ 150 kHz -3 dB.
Crosstalk
Measured Channel to Channel:
Better than 90 dB @ 15kHz.
METERS:
Monitor INPUT LEVEL and GAIN REDUCTION
Requires 500 series rack / power supply to operate. Sold separately.
