RUP-R6
Rupert Neve Designs R6 6-Space 500 Series Rack
The Rupert Neve Designs R6 500 Series Rack has versatile connectivity and power in abundance! The R6 is serious gear for engineers who demand a high degree of confidence in their 500 series chassis. The R6 throws out more than 1.5 times the required current for a conventional 6-space unit to stop the power rails from failing under extreme loads. The R6 is also equipped with LED current metering to show how much power is being used at any time - this also can assist in identifying or troubleshooting problematic modules. The internal power supply of the R6 has also been double-shielded to avoid magnetic induction - such attention to detail!
Type: 500 Series
-
RUPERT NEVE DESIGNS R6 PRODUCT FEATURES:
Massive Connectivity

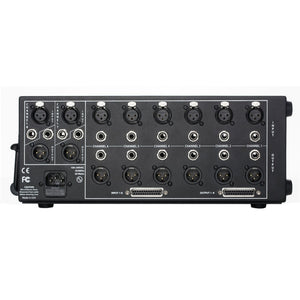

Interchangeable XLR, TRS, and DB-25 I/O connections are provided to ensure that you can connect wherever you go with the backpanel patchbay
Serious Power
Even with modules that overdraw the 500 series specification, the R6 has the reserve power to maintain the voltage
Power Monitoring
An LED Meter monitors the R6 current usage to ensure that you never run short on power. This meter can also be useful for troubleshooting a module that is severely overdrawing its allotment
Channel 7-8 Thru Conversion
The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from/to DB-25, XLR, and TRS connectors
48V Phantom Supply
Provide rock-solid phantom power to your microphones with the R6’s robust 48V buss
“Built For The Road” Frame
A solid steel enclosure, two sets of rugged rubber feet for horizontal and vertical mounting and a collapsible handle make the R6 completely portable and ready for the road
-
RUPERT NEVE DESIGNS R6 TECHNICAL SPECIFICATIONS:
DC Voltage to Units
+/-16VDC and +48VDC for phantom power
Max Current
1000mA for modules, 150mA for 48V phantom power
Power Requirements
100-240VAC, 50/60Hz, 50 Watts
Weight
9.5lbs
Dimensions
13” long x 7.5”wide x 5.5” high
