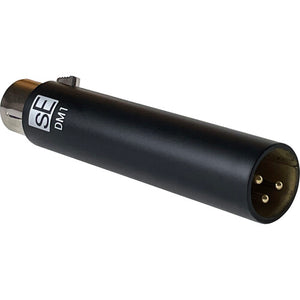

sE Electronics DM1 Dynamite Inline preamp booster- Black

The DM1 DYNAMITE Black: explosive level for all your passive mics.

Some mics need a LOT of gain – and not all preamps are up to the challenge. The DM1 DYNAMITE BLACK is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.

With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

The DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.

For optimum results, we recommend you plug the DM1 directly into your microphone’s output. If necessary, a cable can be used between the microphone and the DM1 – but the shorter the cable, the better the overall performance will be.

• Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
• Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
• Always a consistent +28dB regardless of the connected load to enable mics with a lower output
• Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
• All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
• Gold plated XLR connector for loss-free reliable signal connection
• Perfect for podcasting, recording, or live sound

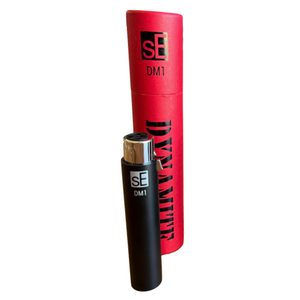

IN THE BOX

• DM1 Black
• sE Logo Sticker
• User manual with warranty card

SPECIFICATIONS

• Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
• Gain: 28 dB (load 1kOhms)
• Max output level (0.5% THD): 8.3 dBV (2.6 V)
• Output noise level: 9 μV (JIS-A)
• Powering: 48 Volts according toIEC 61938
• Electrical impedance: 135 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 3.0 mA
• Connectivity: 3-pin male/female XLR connector
• Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
• Weight: 80 g (2.82 oz.)

SYSTEM REQUIREMENTS

REQUIREMENTS

• input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power

LIMITATIONS

• not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
