$359.00$449.00
SEEL_SE8

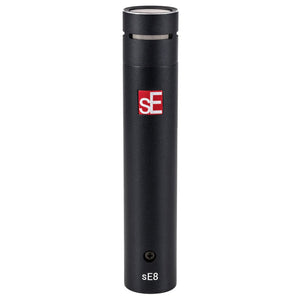

sE Electronics sE8 Small-Diaphragm Condenser Pencil Microphone
The sE8 is a small diaphragm cardioid condenser pencil microphone, for studio or live recording applications. The sE8 has a staggering max SPL of up to 159dB, and dynamic range of 146dB. There is a handy 2-way pad of either -10 or -20 dB, and low cut filter at either 80 or 160 Hz. The sE 8 is available as a stereo pair, and offers outstanding value for money. It captures a transparent and detailed signal, with minimal self noise.
Type: Condenser Microphones
-
-
sE Electronics sE8 PRODUCT FEATURES:
HANDCRAFTED TRUE CONDENSER CAPSULE
gold-sputtered diaphragms ensure maximum reliability
every capsule is handcrafted and individually tuned in our very own factory
ultra-precision electrode design optimized for superb linearity and natural sonics
ultra-thin 3 micron gold-sputtered diaphragm for superior transients
newly-developed backplate design provides smooth, natural sound & truly consistent off-axis response
sophisticated acoustic design with precision components
avoids coloration in demanding applications
THE QUIETEST PENCIL MIC IN ITS CLASS

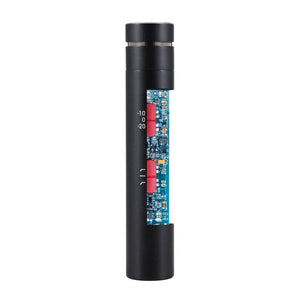

sophisticated electronic design provides extremely low noise without the use of integrated circuits
transformerless design for excellent transparency and clarity
proven Class-A circuitry ensures a high dynamic range without distortion and brilliant transient response

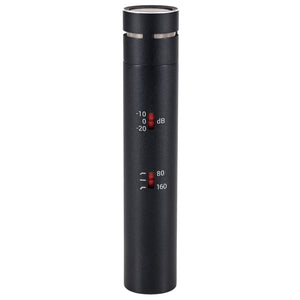

TWO SWITCHABLE PRE-ATTENUATION PADS
The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more.
TWO SWITCHABLE LOW-CUT FILTERS
Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.
ALL-METAL HOUSING WITH GOLD-PLATED XLR CONNECTOR, PREMIUM FINISH & ACCESSORIES
Unlike the cheaply constructed bodies of some small-capsule microphones, the sE8's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish and gold-plated XLR connector ensures a great look and a loss-free, reliable signal connection for years to come.

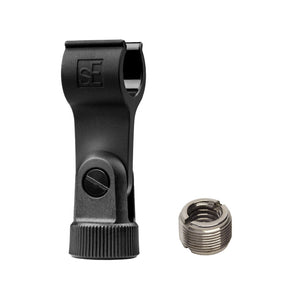

The sE8 also comes standard with a newly-designed mic clip that will securely attach it to any mic stand.
IN THE BOX
sE8 microphone
mic clip (with thread adapter)
wind screen -
sE Electronics sE8 TECHNICAL SPECIFICATIONS:
Capsule Type: Hand-Crafted Small-Diaphragm True Condenser

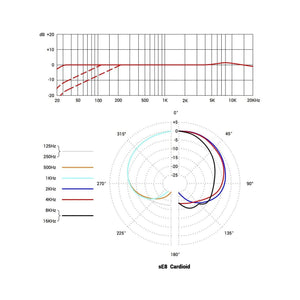

Polar Pattern: Cardioid
Frequency range: 20 Hz - 20 kHz
Sensitivity: 25 mV/Pa (-32 dBV)
Max SPL: 139 / 149 / 159 dBSPL (0/10/20 dB pad) (0.5% THD @ 1kHz)
Equivalent noise level: 13 dB(A)
Dynamic range: 126 / 136 / 146 dB (0/10/20 dB Attentuation pad)
Signal to Noise Ratio: 81 dB
Low-cut filter: 80 / 160 Hz, 6 dB/Oct, switchable
Attenuation Pad: 10 / 20dB, switchable
Powering: 48 Volts according to IEC 61938
Electrical Impedance: 110 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 2.7 mA
Connectivity: 3-pin male XLR connector
Dimensions: Diameter: 23mm (0.91 in), Length 120mm (4.72 in)
Weight: 141 g (4.97 oz.)
