Sennheiser XSW-D Instrument Base Set

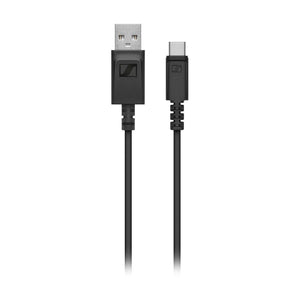

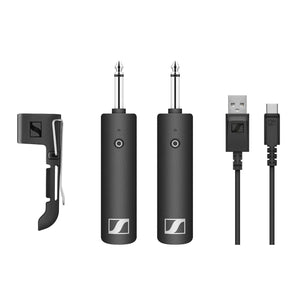

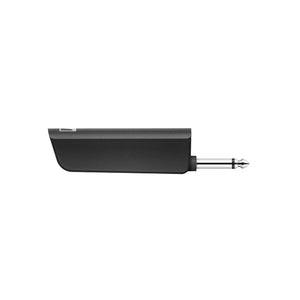

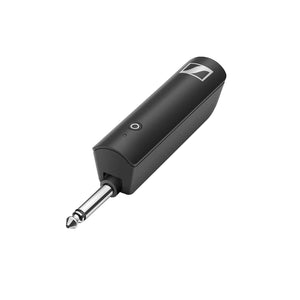

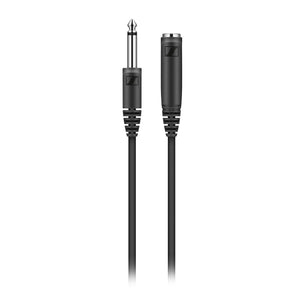

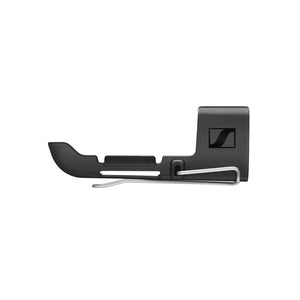

XS Wireless Digital Instrument Base Set. One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4”) transmitter, XSW-D 6.3mm (1/4”) receiver, extension cable 6.3mm (1/4“), belt clip and USB-A to USB-C charging cable
Type: Wireless Systems
-
-
Product Features:
One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75m range (250ft) in optimal conditions
Up to 5 hours battery life on a single charge
Switch between multiple transmitters linked to one receiver
Configure any combination of transmitters and receivers
Mute from either transmitter or receiver -
Technical Specifications:
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
THD, total harmonic distortion < 0.1 %
Charging time typ. 3 h
Audio output max. 12 dBu
Operating temperature -10 °C to +55 °C (14 °F to 131 °F)
Signal-to-noise ratio ≥ 106 dB
Operating time up to 5 h
Modulation GFSK with TDMA
Battery Specification Li-Ion
Capacity 850 mAh
Codecs aptX® Live
Frequency range 2,400 - 2,483.5MHz
Max. Input voltage typ. 5.0 V
Transmission power max. 10 mW
Voltage 3.7 V
Operating relative humidity 95 % (non-condensing)
Latency < 4 ms
Temperature Range 0 °C - 60 °C (32 °F - 140 °F)
Audio frequency response 6.3 mm Jack: 10 - 18,000 Hz
