HZ-SRP350

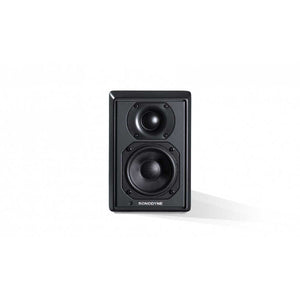

The Sonodyne SRP 350 is the starting reference. In a world where majority of music is experienced via multimedia, this SRP serves as an ideal reference. It is also an excellent solution for high quality multichannel audio in premium spaces. The enclosure is pressure die cast aluminum that maximises rigidity and lends it a unique form. The tweeter is a silk dome. The 3.5" glass fibre cone woofer produces impressive LF and transient response. A new 15 + 15 watt biamplifier drives the transducers optimally while providing adequate headroom and dynamics. Room compensation HF and LF tilts are available on the rear along with a power switch and level control. Tapped inserts at the rear and bottom allow for various mounting options.
Type: Active Studio Monitors
DESCRIPTION | 2 way bi-amplifier speaker |
---|---|
ENCLOSURE | Pressure die-cast aluminum, sealed |
TRANSDUCER COMPLEMENTS: HF | Magnetically shielded 26mm silk dome tweeter mounted on waveguide |
TRANSDUCER COMPLEMENTS: LF | Magnetically shielded 3" glass fibre cone woofer |
AMPLIFIER POWER BEFORE CLIPPING | LF: 15 W, HF: 15 W |
AMPLIFIER THD AT RATED POWER | < 0.1 % |
MAX SPL @ 1M | 95 dB |
FREQUENCY RESPONSE | 95 Hz ~ 22 kHz (+/-2 dB) |
USABLE FREQUENCY RANGE (-10 dB) | 80 Hz ~ 25 kHz |
CROSSOVER FREQUENCY | 2.7 kHz |
CMRR | > 65 dB |
INPUTS | Fully balanced through XLR & TRS sockets, unbalanced RCA |
INPUT LEVEL FOR 90 dB SPL @ 1M | +2 dBU |

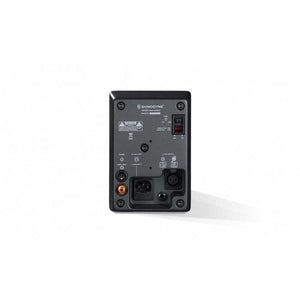

CONTROLS - REAR | Gain, Power, Bass tilt, Treble tilt |
PROTECTION | Over current, Overheat , RFI, Switch on/ off transients |
INDICATOR | Power ON /OFF |
GAIN CONTROL RANGE | -∞ to +6 dB, 0 dB at center position |
SIGNAL TO NOISE RATIO (AT UNITY GAIN) | > 90 dB, referred to full output |
FINISH | Powder coated (grey/white/black) |
COLOURS | Grey/ White/ Black |
DIMENSIONS (HxWxD) mm | 184 x 125 x 120 |
POWER CONSUMPTION | 45 VA Max. |
POWER REQUIREMENT | 230 VAC, ±10%, 50 Hz; 120 V optional |
NET WEIGHT | 2.5 kg |
WALL MOUNT BRACKET | SRP WB1 |
MOUNTING OPTIONS | 2 x M6 inserts on rear 4 x M6 inserts on base |
