$3,799.00$4,469.41
SPL-GOLDMIKEMK2-PRAD
SPL GoldMike Mk2 Dual-Channel Microphone and Instrument Preamplifier with ADC card

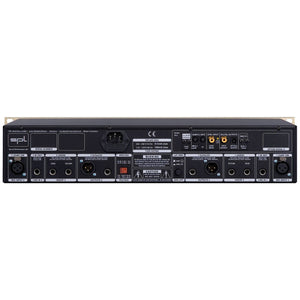

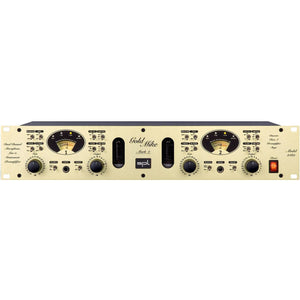

The spL GoldMike Mk2 is a dual channel Class-A microphone preamp. It features a hybrid design, with solid state and tube gain stages. The circuitry is completely discrete, with each transistor tailored for its specific function. The GoldMike Mk2 has a very convenient layout, boasting lots of parameter adjustments enabling you to pull a unique sound each tracking session. There are also front panel instrument inputs, and the rear panel includes mic inputs, inserts, analog and digital outputs. There are blank panels for an optional A-D convertor expansion card.
Type: Preamps/Channel Strips
-
-
SPL GoldMike Mk2 Features:
Discrete Class A solid stage
Tube drive in three different intensity levels
Flair presence enhancement in two switchable settings
Switching inserts
Pre-output limiter stage (extremely fast diode-based operation, perfect for A/D converter protection)
VU metering with three different, switchable display ranges
Front panel instrument input, separate rear-side microphone and line inputs
Phantom power, phase reverse, pad and high-pass filter (50Hz)
Frequency response ‹10Hz bis 90kHz (-3dB)
THD+N (Input level -30dBu, 30dB Gain) 0,016%
Noise (A-w., R=40Ohm, 30dB Gain) -91,2dBu
Dynamic range (30dB Gain) 110dB
E.I.N. 128dBu
Max. output level (sym., XLR+Jack) +26,8dBu
Options include 24/192 AD converter and in/output transformers by Lundahl
Made in Germany -
SPL GoldMike Mk2 Specifications:
Frequency response: ‹10Hz bis 90kHz (-3dB)
Input impedance:
Microphone, XLR: 2.8kOhm
Line In, TRS: 10kOhm
Instr. In TRS: 1mOhm
Output impedance (XLR and TRS): 50Ohm
THD+N:
Input level -30dBu, Gain 30dBu: 0.016 %
Input level -40dBu, Gain 40dBu: 0.017 %
Input level -50dBu, Gain 50dBu: 0.022 %
Input level -60dBu, Gain 60dBu: 0.048 %
Noise (A-weighted, R=40Ohm):
Gain 30dB: -91.2dBu
Gain 40dB: -86.6dBu
Gain 50dB: -78.7dBu
Gain 60dB: -69.3dBu
Dynamic range (Gain 30dB): 110dB
E.I.N.: 128dBu
Max. input level:
Microphone, XLR: +7dBu
Microphone, XLR +PAD: +28dBu
Line In, TRS: +23dBu
Instr. In TRS: +7dBu
Instr. In TRS +PAD: +14dBu
Max. output level:
Balanced, XLR+ TRS +26.8dBu
Unbalanced, XLR+ TRS +21.5dBu
CMRR:
1 kHz, Gain 30dB: ›75dB
10 kHz, Gain 30dB: ›75dB
Power consumption: 25W
Physical:
WxHxD: 482 x 88 x 210mm; 19" x 3.46" x 8.27"
Weight: 4.1kg/9lbs
0dBu = 0.775V. Subject to change without notice.
