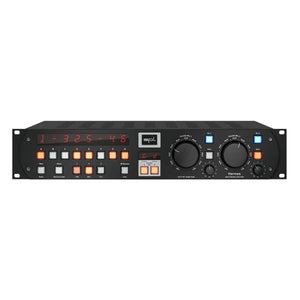

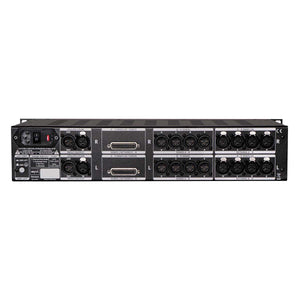

SPL Hermes Mastering Router with dual Parallel Mix - Black

The SPL Hermes revolutionizes Mastering. Now it is possible to route an audio signal through up to eight dual-channel processors in any order. User-definable presets allow the comparison of complex processing chains with just a flip of a button.

FEATURES

• Mastering router for 8 dual-channel processors

• Two Parallel Mix stages

• Create, store and compare complex processing chains

• With gain compensation

• Fast comparison of up to 4 processing chains

• Can be assigned to any device

• Fully passive routing using

• 120V Technology

• Gold-plated and gas-capsuled relays

• Label mode to enter device names

SPECIFICATIONS

Inputs

Max. Input Level: +32,5 dBu
Max. Input Level (Parallel Mix, Gain active): +28 dBu
Input Impedance: 20 kOhm (bal.)

Outputs (Speaker Output)

Max. Output Level: +32,5 dBu
Output Impedance: ‹ 600 Ohm
Noise (A-weighted): -121 dBu
Noise (A-weighted, Parallel Mix active): -104 dBu
Noise (A-weighted, Parallel Mix, Gain active): -102 dBu
Crosstalk (at 1 kHz at 0 dBu): -130 dB
Crosstalk (at 1 kHz at 0 dBu Parallel Mix active): -110 dB
Crosstalk (at 1 kHz at 0 dBu Parallel Mix, Gain active): -80 dB
THD & N (at +20dBu): › -112 dBu
Common-Mode-Rejection (at 0 dBu): -75 dB
Transmission Bandwidth: 10 Hz-200 kHz 10 Hz = -0,12 dB; 100 kHz = -0,3 dB; 200 kHz = -1,2 dB

Power Consumption:

0,17 Amp, 230V/50Hz, 30 Watt, 37,6 VA
0,34 Amp, 115V/60Hz, 30 Watt, 37,6 VA

Fuses:
230V/50Hz: 1 Amp
115V/60Hz: 2 Amp

Dimensions

Standard EIA 19 Inch Housing/2U: 482 x 88 x 300 mm / ca. 19" x 3,5" x 11,8" (front panel excl.)

Weight: 9kg/ 19,84 lb
