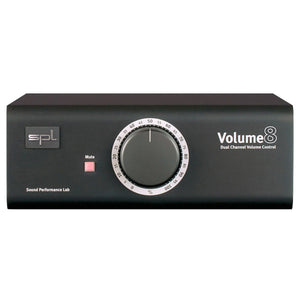

SPL Volume 8 - 8-channel Volume Controller

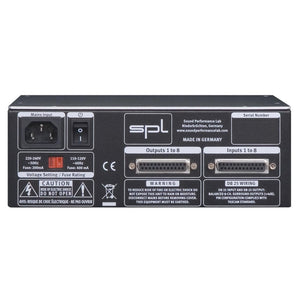

The SPL Volume 8 is an active monitor controller, with a very simple and elegant design. The Volume 8 features 2 x DB-25 connectors on the rear panel. This gives you 8 analog in and out, making it possible to use in a surround sound monitoring system.
Type: Monitor Controllers
-
-
SPL Volume 8 Features:
As a cost-effective alternative to our full-featured Stereo and Surround Monitoring Controllers MTC and SMC, the Volume 8 focuses on high quality active volume control. Users who do not need additional monitoring functionality provided by the SMC will find the Volume 8 an cost-effective solution without compromises. The Volume 8‘s design is based on active circuitries to avoid nonlinear frequency response introduced by impedance changes with passive designs when changing levels.
The Volume 8 serves as a system-independent analog volume regulator in all areas of audio processing and playback, including
Stereo- and Surround Music production
Multichannel movie and video post production
Multichannel video computer games production
Multichannel Hi-fidelity applications -
SPL Volume 8 Specifications:
Inputs & Outputs
Instrumentation amplifier, electronically balanced (differential), transformerless
Nominal input level: +4dBu
Input impedance: =22kOhm
Output impedance: ‹600Ohm
Max. input level: ›+20dBu
Volume control range: -80dB bis -4dB
Measurements
Frequency range: 10Hz-100kHz (100kHz = -3dB)
CMRR: ›60dBu@1kHz
THD & N (at +15dBu input level): ›-100dBu
S/N (A-weighted): -102dBu
Crosstalk L/R (at 1kHz): ›-80dBu
Dynamic range: 120dB
Power supply
Toroidal transformer: 15VA
Fuses: 250mA (230V), 500mA (115V)
Voltage selector: 230V/50Hz; 115V/60Hz
Power consumption: 15W
Dimensions & Weight
(W x H x D): 215 x 80 x 220mm
Depth incl. Potentiometer, Sockets: 245mm
Weight: 1.6kg
0dBu = 0.775V. Subject to change without notice.
