DA-6400

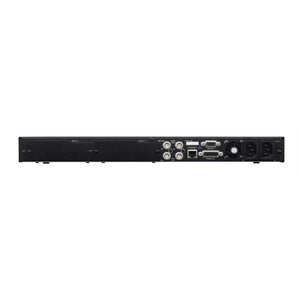

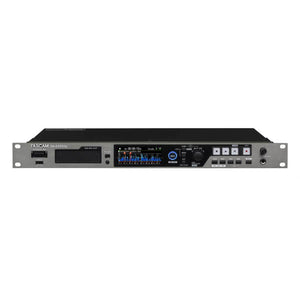

TASCAM DA-6400 Compact 64-channel digital multitrack recorder/player for Live and Broadcast applications
TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.
Type: Multitrack Recorders
-
-
Product Features:
Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
The perfect backup recording system for synchronized capture with Pro Tools systems
2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.
(Note: HDD support currently under development)
Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
AK-CC25 with TASCAM 240GB SSD drive included with unit
Hi-visibility Color LCD (320×120 pixels)
BWF support for storing time information with files
Two I/O slots for optional audio interface cards:
IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
IF-MA64/BN 64-channel MADI coaxial interface card
IF-DA64 64-channel Dante interface card
IF-AE16 16-channel AES/EBU interface card
SMPTE LTC timecode input and output for location synchronization
Firmware upload over USB port
Parallel remote control input
RS-422 serial remote control (9-pin serial protocol compliant)
Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
SNTP server support for automatic adjustment of the internal clock over a network
Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
EIA 1U rackmount size
IEC 3-pin inlet
iPad and computer applications for remote control
AC power redundancy built in (DA-6400dp only) -
Technical Specifications:
Recording media SSD
Note: HDD support also planned in addition to the SSD.File system FAT32 File formats BWF (.wav)
Number of channels 64 (1×Fs), 32 (2×Fs) Sampling frequencies 44.1k / 48k / 88.2k / 96k Hz Quantization bit rate 16 / 24-bit Clock reference INTERNAL, WORD IN, VIDEO IN Timecode frame 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF TIME CODE IN Connector BNC Signal voltage amplitude 0.5V to 5Vp-p Input impedance 10kΩ Format SMPTE 12M-1999 compliant TIME CODE OUT Connector BNC Signal voltage amplitude 2Vp-p Output impedance 600Ω Format SMPTE 12M-1999 compliant WORD/VIDEO IN Connector BNC Input voltage amplitude (WORD) 0.5V to 5Vp-p TTL equivalent Signal voltage amplitude (VIDEO) 1Vp-p Input impedance 75Ω ±10% Input frequency (WORD) 48kHz Input signal (VIDEO) 23.976 / 24 / 25 / 29.97 / 30 Frame (NTSC/PAL Black burst, HDTV Tri-Level) WORD/VIDEO THRU/OUT Connector BNC Output voltage amplitude 5V TTL equivalent Output frequency (WORD) 48kHz ETHERNET Connector RJ-45 Protocol 100BASE-TX, 1000BASE-T RS-422 Connector D-sub 9 pin (female, inch-standard) PARALLEL Connector D-sub 15 pin (female, inch-standard) USB Connector USB2.0 A-type Protocol USB 2.0 HIGH SPEED (480Mbps) PHONES Connector 1/4" (6.3mm) Stereo Phone jack × 1 Maximum output level 45mW + 45mW or higher Power AC 100 - 240V, 50/60Hz
*DA-6400dp has 2 power supply inletsPower consumption 21W (At the time of IF-MA64/EX use) Dimensions (W×H×D) 19.0" × 1.766" × 12.0" / 482.6 × 44.7 × 304.8 mm Weight DA-6400 8.6 lbs. / 3.9 kg DA-6400dp 8.8 lbs. / 4.0 kg Operating temperature 32˚F to 104˚F / 0˚C to 40˚C Standard accessories TASCAM SSD, SSD media case, Power cable×1 (DA-6400), Power cable×2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner’s manual (with warranty)
