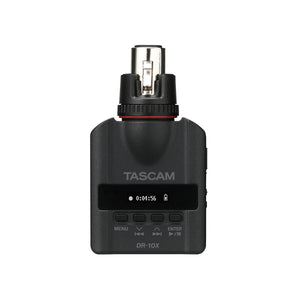

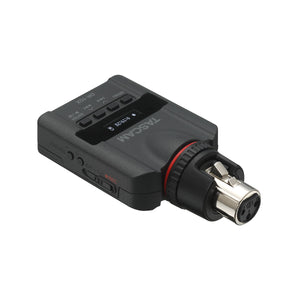

DR-10X
TASCAM’s compact DR-10X attaches to a handheld microphone for the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution. Offload recordings through the microUSB connection or by removing the microSD card.
Type: Portable Recorder
XLR plug-on connection
Compatible with dynamic mics as well as bettery-powered condenser mics
48kHz/24-bit linear PCM mono recording
WAV files (compatible with BWF format)
Media: microSD/SDHC cards (supports 32GB capacities)
Sliding record switch and hold function to prevent misoperation during recording
Dual recording function
automatic file closing function to prevent the loss of already recorded data
XLR connector also can use as external input for external input
High/Mid/Low recording level settings
Low-cut filter
Limiter
Automatic level function
With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
Playback function allows recorded data to be checked immediately
Headphone output
Locking mechanism assure a tight connection with the microphone body
Easy-to-read organic EL display
micro USB B port enables easy data exchange with computers
Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
Unit settings can be created and transferred as a computer text file
Settings can be transferred between multiple DR-10X units using the infrared transmission function
Firmware can be updated using a microSD card
RoHS-compliant product
Recording media | microSD card (64MB to 2GB), microSDHC card (4GB to 32GB) |
Media discharging | Push-Push type (Guard cover mounted) |
Recording format | |
V1.00 | |
WAV | 44.1k / 48k Hz, 16 / 24-bit mono/poly WAV (BWF format) |
V2.00 | |
WAV | 44.1k / 48k Hz, 16 / 24-bit mono/poly (BWF format) |
MP3 | 44.1k / 48k Hz, 24-bit mono/poly |
Recording | 128k / 192k bps |
Playback | 32k to 320k bps |
Analog audio Inputs | |
Connector | XLR-3-31 × 1 |
Input Impedance | 10kΩ or more |
MIC input gain | LOW / MID / HIGH |
PHONES | |
Connector | 1/8" (3.5mm) Stereo Mini jack (DUAL MONO) × 1 |
USB | |
Connector | USB Micro-B type 4pin × 1 |
Maximum Output | USB2.0 HIGH SPEED mass storage class |
Power | 1 AAA batteries (Alkaline or NiMH), USB bus power |
Power consumption | |
Battery operation time | |
Alkaline batteries (EVOLTA) | Aprrox. 10 hours |
Battery (RTC) | Lithium × 1(built in with soldering) |
Dimensions | 2.1" × 3.7" × 1.1" / 52 × 94.4 × 28 mm |
Weight | 2.4 oz. / 68.3 g (including batteries), 1.99 oz. / 56.3 g (excluding batteries) |
Accessories | USB cable, Owner's Manual (including warranty) |
Last update:September 30, 2015 |
Maker | Series | Model | Capacity | Result |
SanDisk | SanDisk® microSDHC™ Memory Card (Class4) |
SDSDQ-008G-J35U | 8GB | OK |
SDSDQ-004G-J35U | 4GB | OK | ||
TOSHIBA | EXCERIA™ UHS-I microSDHC™ Memory Card (U3, Class10) |
MUH-B016G | 16GB | OK |
Maker | Series | Model | Capacity | Result |
SanDisk | SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Cards (Class10) |
SDSDQUP-016G-J35A | 16GB | OK |
SDSDQUP-008G-J35A | 8GB | OK | ||
SanDisk Ultra® microSDHC™ UHS-I Memory Cards (Class10) |
SDSDQUL-016G-J35A | 16GB | OK | |
SDSDQUL-008G-J35A | 8GB | OK | ||
Lexar | Lexar® High-Performance microSDHC™ UHS-I Card (633x) (Class10) | LSDMI16GBBJP633R | 16GB | OK |
Lexar® High-Performance microSDHC™ UHS-I Card (300x) (Class10) | LSDMI16GBBJP300A | 16GB | OK | |
Panasonic | Premium microSDHC™ UHS-I Card (Class10) R:45MB/s |
RP-SMGA32GJK | 32GB | OK |
RP-SMGA16GJK | 16GB | OK |
Maker | Series | Model | Capacity |
---|---|---|---|
Lexar | Lexar® High-Performance microSDHC™ UHS-I Memory Card (300x) (Class10) | LSDMI16GBBJP300A | 16GB |
Lexar | Lexar® High-Performance microSDHC™ UHS-I Memory Card (633x) (Class10) | LSDMI16GBBJP633R | 16GB |
Panasonic | Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s | RP-SMGA16GJK | 16GB |
Panasonic | Premium microSDHC™ UHS-I Memory Card (Class6) R:45MB/s | RP-SMGA32GJK | 32GB |
SanDisk | SanDisk Standard microSD™/microSDHC™ Memory Card | SDSDQ-004G-J35U | 4GB |
SanDisk | SanDisk Standard microSD™/microSDHC™ Memory Card | SDSDQ-008G-J35U | 8GB |
SanDisk | SanDisk Ultra® microSDHC™ UHS-I Memory Card (Class10) | SDSDQUL-008G-J35A | 8GB |
SanDisk | SanDisk Ultra® microSDHC™ UHS-I Memory Card (Class10) | SDSDQUL-016G-J35A | 16GB |
SanDisk | SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10) | SDSDQUP-008G-J35A | 8GB |
SanDisk | SanDisk Ultra® PLUS microSDHC™ UHS-I Memory Card (Class10) | SDSDQUP-016G-J35A | 16GB |
SONY | microSDXC/microSDHC UHS-I Memory Card SR-UY3A Series | SR-16UY3A New | 16GB |
SONY | microSDXC/microSDHC UHS-I Memory Card SR-UY3A Series | SR-32UY3A New | 32GB |
TOSHIBA | EXCERIA™ UHS-I microSDHC™ Memory Card (U3, Class10) | MUH-B016G | 16GB |
Transcend | microSDXC/SDHC300S | TS16GUSD300S New | 16GB |
