$379.00$519.00
DR-10CS

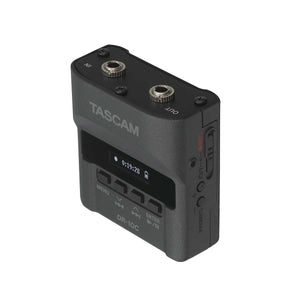

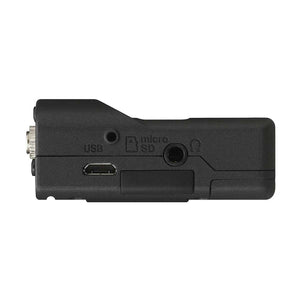

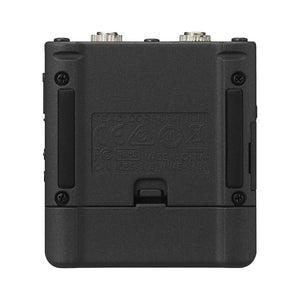

Tascam DR-10C PCM recorder for Sennheiser Wireless System
Type: Portable Recorder
The DR-10C-series recorders connect to your lavalier microphone to create a compact recording system that fits on a belt pack. The DR-10CS is designed for use with Sennheiser microphones.
The DR-10C recorders have both inputs and outputs, so they can either be used standalone or with a wireless transmitter. When used with a transmitter, the unit acts as a backup to protect against wireless dropouts during recording. For lectures or worship services, the DR-10C can record the entire program before it gets to the front of house system. And for events like weddings and reality TV production, the DR-10C is a compact recording system for body mics.
The lightweight DR-10C runs for hours on a single AAA battery. It records to standard microSD media. Recording features include auto-gain and a low-cut filter for simple setup. Its Dual Recording feature records a safety track of your audio at a lower level, so in case of distortion you have a non-clipped backup.
Features
- Micro linear PCM recorder for lavalier microphones
- Can be connected between a lavalier microphone and a wireless transmitter to provide a backup recording
- Records to microSD/microSDHC card (up to 32 GB)
- Mono/poly recording at 44.1/48 kHz sample rate and 16/24-bit resolution
- BWF (WAV) format allows inclusion of time information within audio files
- Recording and playback of MP3 format files
- Sampling rate: 44.1/48 kHz, resolution: 16/24 bit
- Bit rate: 128/192 kbit/s (recording), 32–320 kbit/s (playback)
- Dual recording function allows two files to be recorded simultaneously at different levels to provide a safety track in case of distortion (level reduction for secondary recording selectable –6/–12 dB)
- Hold function prevents accidentally switching off the recorder
- Switchable limiter to prevent clipping
- Switchable low-cut filter conveniently reduces low-frequency noise
- Auto gain control
- Time Track increment function writes new track after a preset amount of time (switchable on/off)
- Playback function for checking recordings via headphones
- Headphones output
- A warning sound can be output, when the unit is low on battery, low on recording space or when recording cannot be started
- Built-in clock for storing time information with recordings
- OLED display with great visibility
- Micro USB-B connector for easy data transfer with a computer
- Power supply through one AAA battery/rechargeable or USB connection
- More than eight hours recording with a single AAA battery
- Settings can be created in a text file on a computer and transferred to the DR-10CS via USB
- Infrared data communication allows setting information to be transferred to other DR-10C recorders
- Firmware update possible using the microSD card
- DR-10CS for Sennheiser mics
Specifications
| General | |
|---|---|
| Recording media | microSD card (64 MB – 2 GB) microSDHC card (4–32 GB) |
| Recording/playback formats | BWF-compatible WAV format, 44.1/48 kHz, 16/24 bits, mono/poly MP3 format, 44.1/48 kHz, 128/192 kbit/s (recording) 32–320 kbit/s (playback) |
| Inputs and outputs | |
|---|---|
| Analogue input (microphone) | DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male |
| Maximum input level | –12 dBV |
| Minimum input level | –53 dBV |
| Mic input gain | 10 dB to 35 dB (according to MODEL SELECT setting) |
| Input impedance | 33 kΩ or higher |
| Analogue output (passed to the transmitter) | DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male |
| Analogue output (Headphones jack) | 3.5-mm mini stereo jack (dual mono audio output) |
| USB port | Micro-B connector, USB 2.0 High Speed Mass Storage Class |
| Audio performance, input to phones output | |
|---|---|
| Frequency response | 20 Hz – 22 kHz, +1/-3 dB |
| Distortion | 0.05 % (1 kHz sine wave, maximum input level) |
| S/N ratio | 88 dB or higher (PHONES level max., MIC GAIN set to LO) |
| Power supply and other specifications | |
|---|---|
| Power supply | 1 AAA battery (alkaline, NiMH or lithium) USB bus power from a computer |
| Power consumption | 0.45 W (maximum) |
| Current consumption （USB bus power) | 0.25A (maximum) |
| Date and time data retention | Secondary lithium battery (built-in) |
| Dimensions (W × H × D) | 52 x 56 x 25 mm (excluding protrusions) |
| Weight | 63 g (with battery) 51 g (without battery) |
| Permissible operating temperature range | 0-40 °C |
| Battery operation time | |
|---|---|
| Conditions: WAV recording at 48 kHz/24 bit, continuous operation, JEITA recording times, in hours: minutes | |
| Alkaline battery (Evolta) | |
| 10:00 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 9:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
| NiMH battery (Eneloop) | |
| 8:00 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 7:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
| Lithium battery (Energizer Ultimate Lithium) | |
| 15:30 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 14:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
