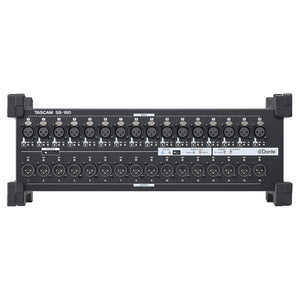

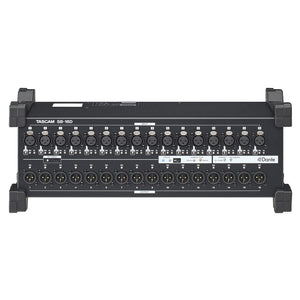

Tascam SB-16D 16-in/16-out Dante analog converter with built-in 32-bit ADC & Class 1 HDIA mic preamps.

Offering the same performance and hardware quality as TASCAM Sonicview mixers, TASCAM SB-16D Dante-networked 16-in/16-out stage boxes offer all the advantages of Dante networking, combined with seamless integration with TASCAM Sonicview mixers. The stage boxes can be used as a floor stage box or rack mounted, and multiple stage boxes can be used simultaneously in a Dante network.

Key Features

• 16 in/16 out Dante enabled stage box with redundancy
• 16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
• 16 XLR line outputs with SIG OL LED output signal indicators
• Up to 96 kHz sampling and 32 bit precision

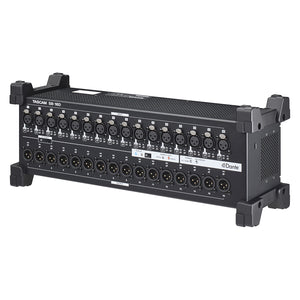

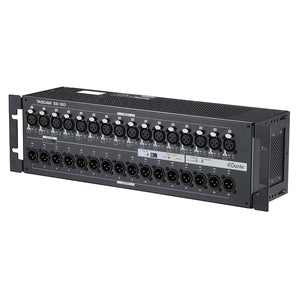

• Supports both floor installation and 3U rack mounting
• Fully controllable from connected TASCAM Sonicview mixers
• Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS

Other Features

• Equipped with DC input and supports redundant power supply (DC power supply not included)
• Equipped with 8 in/8 out expansion GPIO terminals, expandable to 16 in/16 out when connected to a TASCAM Sonicview mixer
• Switchable reference level
• Equipped with etherCON compatible connectors as Dante connection
• Dante Domain Manager support
• AES67 interoperability
• SMPTE ST 2110 interoperability

When a SB-16D stage box is connected to a TASCAM Sonicview 16 or 24 mixer, microphone gain can be remotely controlled from the mixing console, and all SB-16D I/O comes up on the TASCAM Sonicview VIEW touch screens for hassle-free ease of use. In addition, the SB-16D is equipped with 8-in/8-out GPIOs, which expand to 16-in/16-out GPIOs when connected to a TASCAM Sonicview mixer, facilitating parallel control.

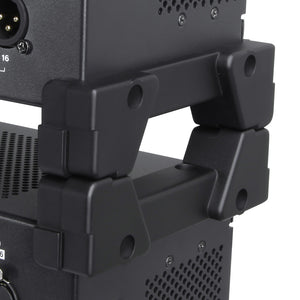

Easily accommodate large ensembles and extensive installed Dante systems using the SB-16D's 16 XLR mic/line inputs and 16 XLR line outputs. Need more I/O? Simply network multiple SB-16Ds.
The mic/line inputs are extremely quiet, achieving a -128 dBu EIN with a +32 dBu maximum input level. Each input channel has +48V phantom power and an SIG OL LED for input-level monitoring. Each line output also is equipped with SIG OL LEDs.

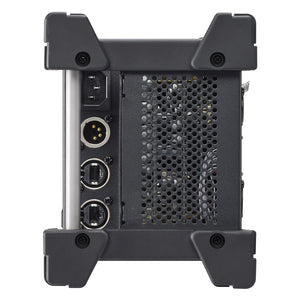

The SB-16D supports Dante Domain Manager in addition to AES67 and SMPTE 2110 interoperability. Two Dante ports equipped with etherCON-compatible Dante connectors enable redundant streams with robust connections.
For additional system reliability, a DC power input is provided that supports a redundant power supply (not included).

Included Items

• SB-16D x 1
• Power cord (JAPAN USA/EUROPE/OCEANIA) x 3
• Rack mount angle(mounting screw)set x 1
• Rack mount screw kit x 1
• TASCAM ID registration guide x 1
• Owner's Manual with warranty x 1
