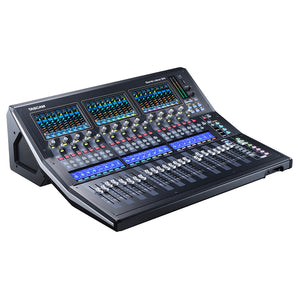

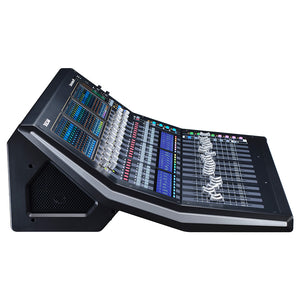

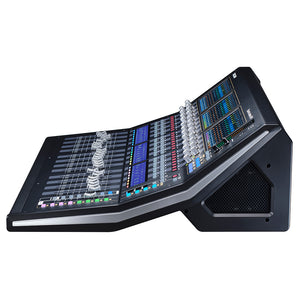

TASCAM Sonicview 24 Next-Generation Digital Mixing console

TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview, TASCAM has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customisable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

Two TASCAM Sonicview models are available, which differ in frame size and the number of physical inputs, mic preamps, faders, and touch screens. The TASCAM Sonicview 16 offers 16 physical input channels with motorised faders and TASCAM's top-of-the-line Class 1 HDIA microphone preamps, while the TASCAM Sonicview 24 provides 24. The TASCAM Sonicview 16, with its smaller frame size, can be rack-mounted. Internally, the architecture of the two models are the same, with a generous 44 input channels (40 mono channels and 2 stereo channels), 4 stereo FX return channels, 22 flex output buses, and the L/R main bus.

The TASCAM Sonicview 24 offers motorised channel faders in three banks of eight, plus a motorised stereo fader for the main bus. Above each bank of channel faders is a colour touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.

 Key Features

• Multiple displays with three 7-inch touch panels
• 44 input channels (or 40 mono input channels and 2 stereo input channels) and 4FX return
• 22 flexible output buses and main L/R bus with 31-band graphic EQ
• 96 kHz, 54-bit float-point FPGA mixing engine
• Ultra-low latency: 2 x samples (20.8µS) in mixing engine, 0.51 ms analog-to-analog
• 32-bit/96 kHz AD/DA conversion
• TASCAM Class 1 HDIA microphone preamplifiers
• 32-in/32-out, 32-bit/96 kHz USB audio interface
• 64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
• 24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
• 4 multi-effects processors
• TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing
• 2 TASCAM expansion slots
  ・Optional SDXC multi-track recording, MADI, Dante, AES/EBU, and analog outputs cards available.

Other Features

• Hardware mixing surface and mixing engine operating system are independent of each other for high stability and continuous audio flow
• Library: Snapshot/Effect/Module/Parametric EQ/Graphic EQ/Gate/Compressor
• 18 assignable user keys, 7 custom fader layers, 8 DCA groups
• 24+1 100mm motorized faders
• 24 encoder knobs with color LED
• 24 LCDs with color LED display channel name, input level, and gain reduction meter
• 2 ch internal recording/playback with SD card or USB flash drive

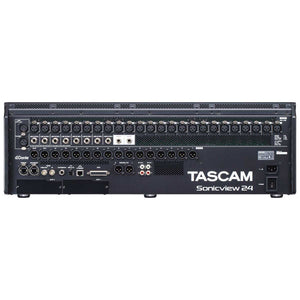

• 8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
• XLR monitor outputs
• 1/4-inch and 1/8-inch headphone outputs
• Word clock In and Out/Thru
• 1000BASE-T gigabit Ethernet
• 8-in/8-out GPIO on DB25
• TRS footswitch jack
• XLR 4-31 lamp connector
• Power switch with guard
• Optional SB-16D 16-in, 16-out Dante-enabled stage box
