VSVSM2-B

Vertigo VMS-2 Mix Satellite

Choose Version

The VSM-2 is a creative fully analog Mix and Mastering tool. The VSM offers MS, Blending and two sophisticated coloration generators in 2U size. The VSM-2 is also available in a “basic version” without harmonic Generators.

This represents a „All In One“-solution for Mastering studios with no more need to invest in mastering consoles, switching devices, monitor controllers, MS En & de-coders etc.

Like all Vertigo Sound products, the VSM-2 is manufactured to the highest industry standards to guarantee the utmost performance and maximum durability.

Special Order - typically 2 weeks from order



    • Product Features:

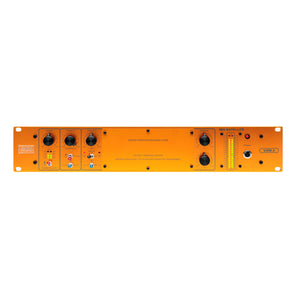

      VSM-2 Basic:

      All analog, latency free processing

      Two fully balanced inserts on XLR offering MS En & DE-coding

      Level compensated MS En & DE-coding

      Insert 1 provides Dry-Wet Mix control „Parallel Compression“ for LR and MS

      Insert 2 provides „M&S Stereo Width“ control

      Level compensated AFL Solo for M and S-Signal

      All controls can be easily recalled via stepped controls, pointer knobs & fine scales

      Hardwire bypass for all and each processing stage

      Excellent headroom with up to +30dbu at the Ins & Outs

      Level matching of the inputs and outputs

      Fast input and output metering plus various clip leds

      Colour coded switch controls for easy intuitive operation

      Superior crafted & anodized frontplate in „sun orange“ & blue metallic silk screen print

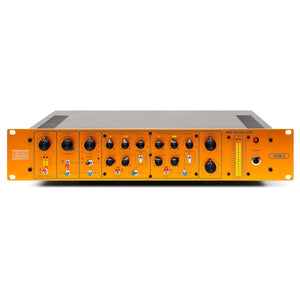

      VSM-2 „full version“ additional features:

      Two independent stereo coloration circuits

      Stereo & M or S Generation of pure 2nd & 3rd harmonics

      Each coloration generator is independantly switchable to M, S or LR

      Excessive harmonic filtering possibilties for each harmonic generator

      RMS LED level control for equal level of harmonic generators

      Unique „Track“ mode for processing individual instruments

      Soft & Hard clip switching capability

    • Technical Specifications:

      All Ins & Outs electronically balanced

      Dynamic Range: 128 db

      Frequency response: 10 Hz … 100 kHz (+- 1 db)

      Max. Output Level: + 30 dBu

      THD at +28dbu <= 0,003%

      Signal to Noise Ratio at + 6 dBu = 104 db (20..20 kHz, unweighted, RMS)

      Noise: – 98 dBu (20 Hz – 22 khz – unweighted, RMS) @ 0 db Unity Gai

      Power consumption: max 30 Watts
