AH ZED12FX

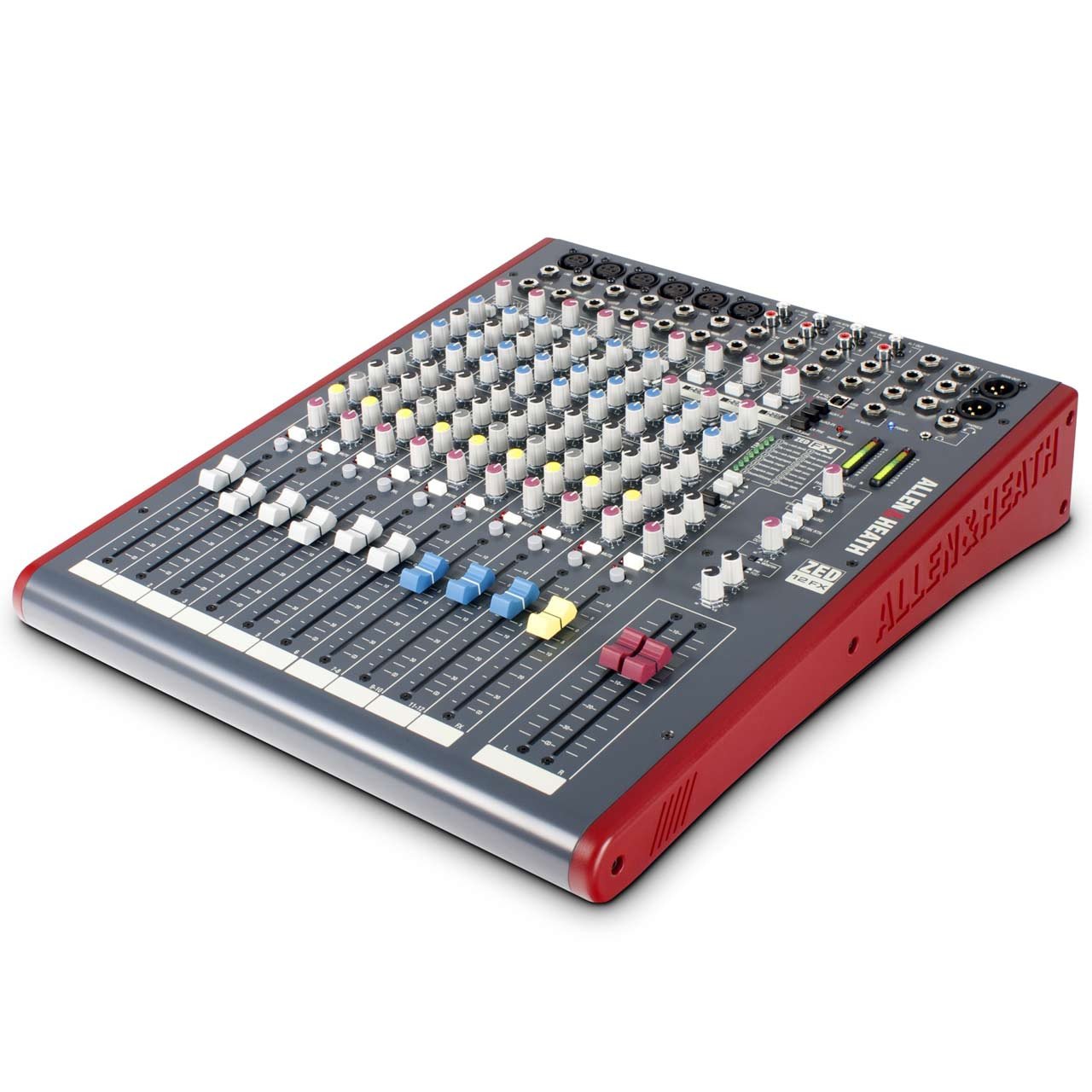

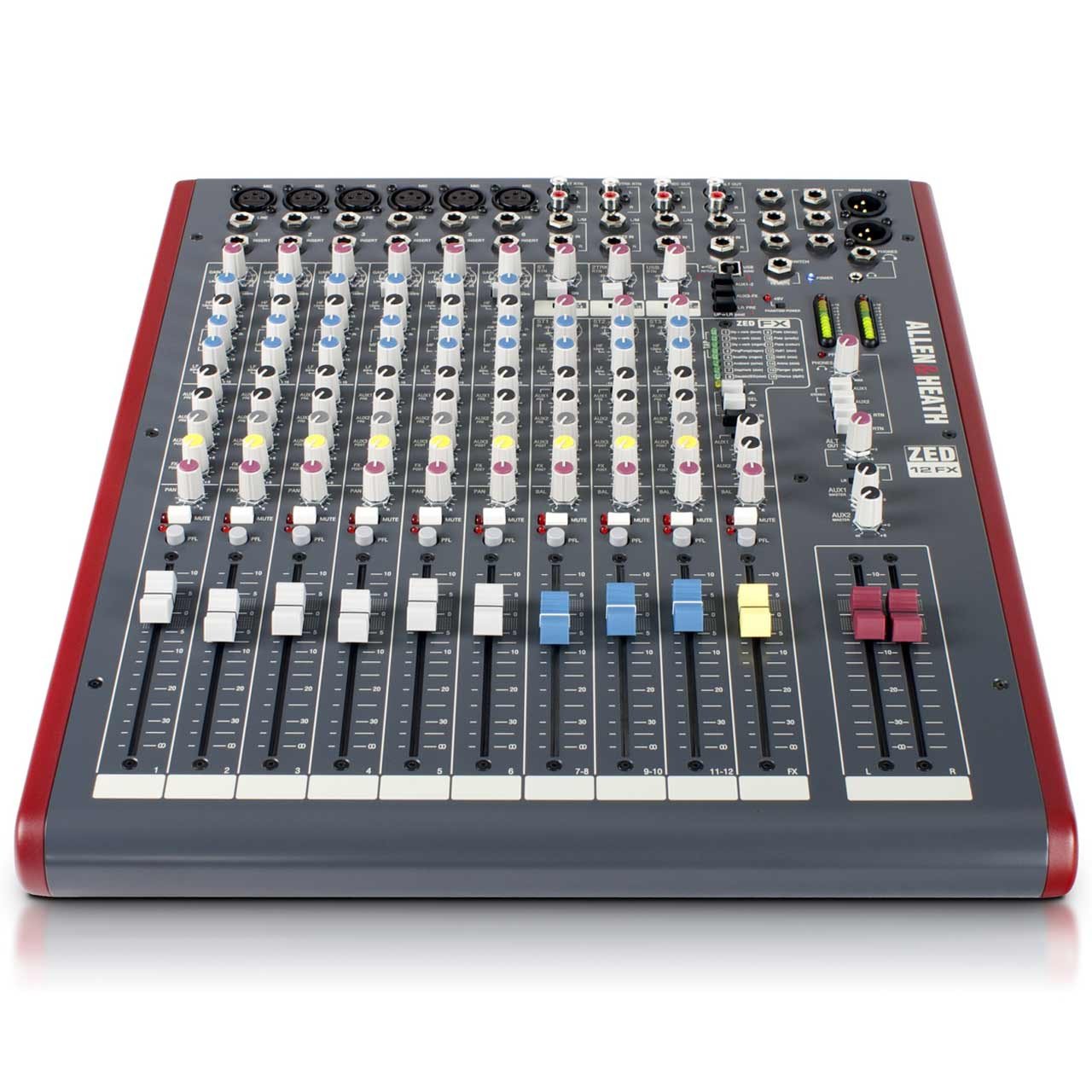

Allen & Heath ZED-12FX - Analogue Mixer With USB
The ZED-12FX is ideal for small theater shows, presentations and live bands. Recording applications could include input-mixer, monitor-mixer or live-recording via USB. Super simple to use and super clean audio-signal quality with low noise. Sonar LE included free! ZED-12FX is ideal for groups who need to travel light. Even with its small footprint, the 12FX squeezes in 4 auxiliary channels and swept semi-parametric EQ on top of the already impressive feature set including configurable USB audio in/out makes it easy to capture stereo recordings.
Type: Analog Mixers
-
-
ZED-12FX PRODUCT FEATURES:
USB audio flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:
Send options
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4
Return options
1) To Stereo 3 channel
MusiQ
ZED-12FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.
ZED-FX

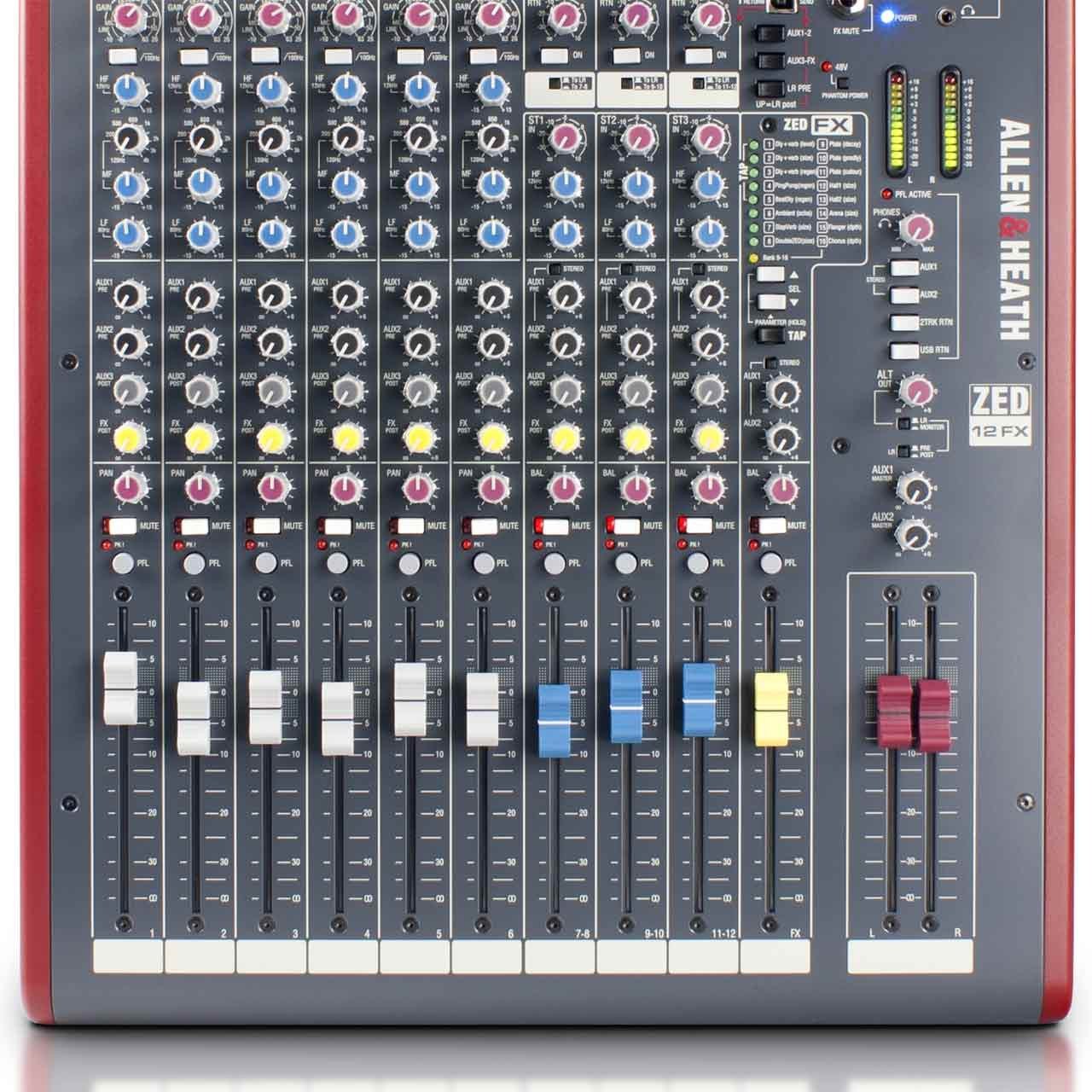

ZED-12FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.
DuoPre
Based on the proven pre-amps from the hugely successful PA series, ZED-12FX has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance. -
ZED-12FX TECHNICAL SPECIFICATIONS:
6 mono channels
3 stereo channels with 2-band EQ and inputs for extra sources
16 internal time-delay effects
Neutrik mic XLR
Neutrik 1/4 inch jacks
Channel insert
Super wide gain ‘DuoPre’ mic line input
3 band EQ with MusiQ
2 pre-fade Aux sends
1 post-fade Aux send
1 internal FX send
Illuminated mute
Sound image pan
Illuminated PFL & peak warning indicator
ALPS 100mm faders
Stereo returns & playback
All inputs with level control
12 bar meters
Mono/stereo function on auxes 1&2
Monitor output section
Alt stereo output source
Configurable USB stereo audio in/out
Cakewalk SONAR LE bundled with mixer
Rack ears available -
ZED-12FX SYSTEM REQUIREMENTS:
SONAR LE – Provided Free!
We’ve included Cakewalk SONAR LE with this ZED mixer so you can start recording your own music today with the most complete introductory music production software for Windows PC. Based on Cakewalk’s award-winning SONAR X3 digital audio workstation, SONAR LE has been enhanced with cutting-edge instruments, effects, and creative tools to make creating your own music as simple and intuitive as possible, no matter what your experience level.
You can use SONAR LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
Key Features
32 audio tracks
64 MIDI tracks
Seamlessly record, edit and mix using award-winning Skylight Interface
Edit audio and MIDI intelligently with Smart Tool
Premium Cakewalk instruments including full Studio Instruments suite and Square I
Mix using a professional Console view and 10 studio-quality effects
1 GB of content including loops, MIDI Groove Clips and templates
Save and share music using Gobbler,YouTube Export and SoundCloud
SONAR LE System Requirements
Minimum system requirements
Windows 7 or Windows 8 (32 and 64-bit). XP and Vista are no longer officially supported
Intel Core 2 Duo E8200 2.67 GHz / AMD Phenom Quad Core 9750 2.4 Ghz or higher
2GB of RAM
1280x800 minimum screen resolution
4.5GB for minimal install, 20GB recommended
Broadband internet connection for download
Gobbler requires internet connection
