$11,999.00$14,116.47

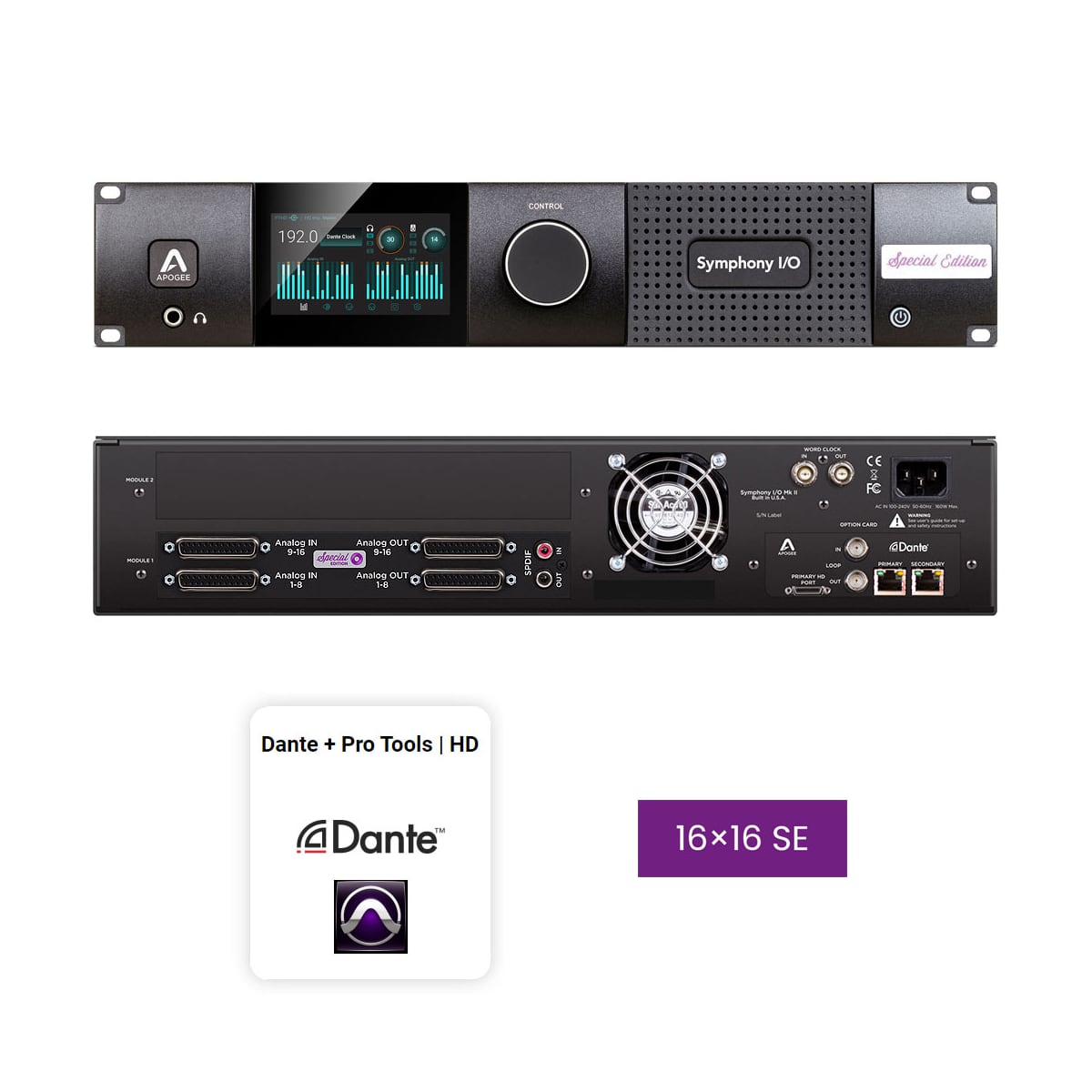

APO-S2-D-16X16SE
Apogee Symphony MKII Dante W/ 16 Analogue In + Out
With the Symphony I/O Mk II Dante + Pro Tools HD option card and a simple Ethernet cable, Symphony I/O Mk II can be easily connected and shared across post-production, broadcast, live sound or recording studio networks, unleashing legendary sound quality on the world’s most popular audio-over-IP solution. The Symphony I/O Mk II Dante option card also includes Pro Tools connectivity for integration of Pro Tools | HD systems into a Dante network environment. No other Dante-enabled audio interface offers this level of quality, flexibility and modularity.
The Symphony I/O Mk II Dante option card uses Audinate’s Brooklyn II module which features plug-and-play media networking for up to 32 bidirectional channels at 96kHz and 16 bidirectional channels up to 192k. The system can be configured with a number of custom options ranging from 8-32 analog I/O channels. Symphony I/O MK II Dante allows up to 32 channels with Pro Tools and redundant Dante connectivity to be fitted into a single two-space rack device providing the smallest footprint available with this feature set.
Features
-
Best AD/DA conversion of any Thunderbolt audio interface
-
Up to 32 channels of modular analog I/O with optional 8-mic preamps
-
Best per-channel value of any interface in its category
-
Choice of Thunderbolt, Pro Tools HD (Mac/PC) or Waves SoundGrid connectivity
-
Ultra-low latency performance
-
Intuitive touchscreen display and front panel control
-
Designed in California, Built in the U.S.A.
Ultimate Sound Quality – Features Apogee’s Flagship AD/DA conversion and optional mic preamps I/O Flexibility – Up to 32 channels of analog inputs and outputs per unit with optional 8 mic preamp module
Pro Tools HD Peripheral Port – Up to 32 bidirectional channels up to 192kHz. Route Symphony I/O module inputs or Dante Rx to Pro Tools inputs by blocks of 8 channels. Pro Tools HD outputs are routed to Dante Tx and I/O module outputs
Interoperable networking technology – Works seamlessly with any other Dante-powered device
Up to 32 bidirectional channels at 96kHz – 16 bi-directional channels at 192kHz

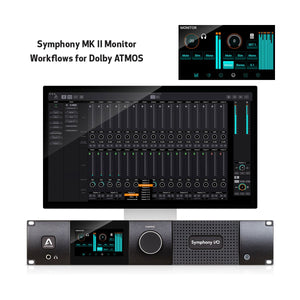

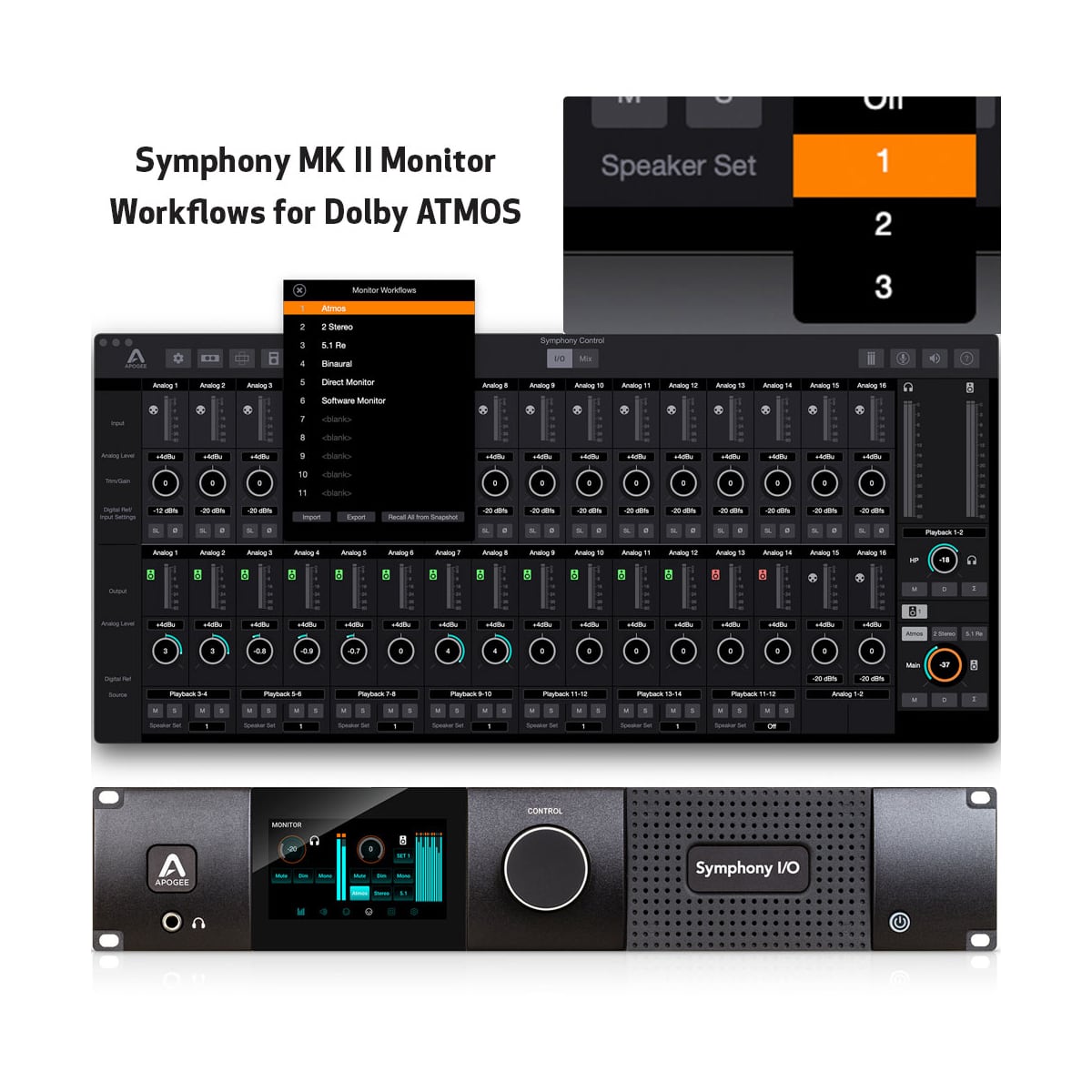

Monitor Workflows with Dolby Atmos and Sony 360
Mixing for Dolby Atmos and other immersive 3D formats is rapidly becoming an essential skill for the modern creator and engineer. As streaming services highlight immersive content and record companies require immersive audio deliverables, you may be asking yourself “How do I get started”?
With Symphony I/O Mk II Thunderbolt’s Monitor Workflows, you’ll effortlessly configure and operate your monitoring system for Dolby Atmos, Sony 360 Reality Audio and other immersive audio systems with control of up to 32 Speaker outputs.
SPECIFICATIONS
Inputs
- Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
- Coax IN: S/PDIF on 1 RCA connector
Outputs
- Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
- Coax OUT: Supports SPDIF on 1 RCA connector
Connection: Dante + Pro Tools | HD
Performance: 44.1kHz – 192kHz
Compatibility: macOS or Windows
Control: Front panel touchscreen
Type: DANTE Interface
