$3,799.00$4,469.41
APO-S2-2X6SE

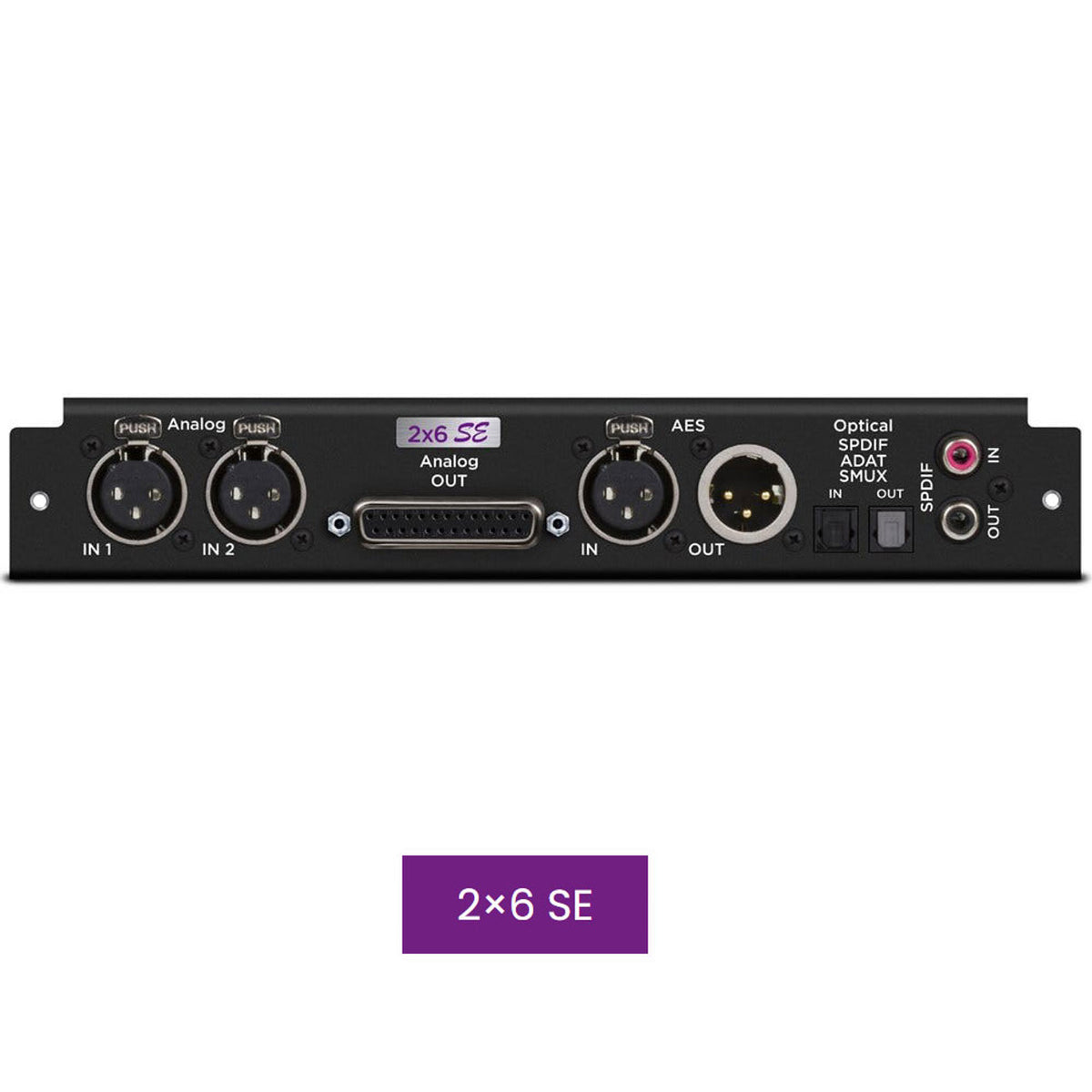

Apogee Symphony MKII Module 2×6 Analog I/O + 8×8 Optical + AES I/O
Type: Sound Module
Inputs
-
- Analogue IN: 2 balanced inputs on 2 female XLR connectors
- AES IN: Stereo input on 1 female XLR connector
- Optical IN: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector
A/D
- THD+N of -116dB @23dBu (0.00016%) unweighted
- Dynamic range: 124 dB (A) of dynamic range
- Maximum input levels:
- +4dB setting: +24dBu
- -10dB setting: +6dBV
- Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
- Input impedance: 10K
Outputs
- Analogue OUT: 6 balanced outputs on 1 DSUB 25-pin connector
- AES OUT: Stereo output on 1 male XLR connector
- Optical OUT: Supports ADAT, SMUX & S/PDIF
- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector
D/A
- THD+N of -118dB @ 22dBu (0.00013%) unweighted
- Dynamic range: 131dB (A) dynamic range
- Max output levels – ∞ to +24dBu
- Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
- Output impedance: 25 Ohm
