AT ATM350D KIT
Audio-Technica ATM350D Cardioid Condenser Instrument Microphone

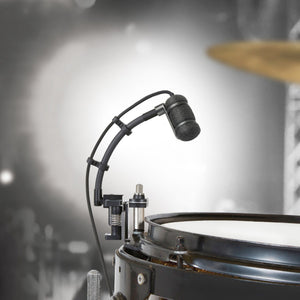

The Audio-Technica ATM350D cardioid condenser mic set, ships with a spring-lock clamp that is specifically designed for attaching the mic to individual drums, such as toms and snares. This design makes moving the microphone and clamp very easy, and the spring ensures a super tight grip once set. The ATM350D has a 5-inch gooseneck for placement. The mic itself can handle SPL up to 159dB. Multiple Audio-Techica ATM350D sets provide an outstanding system for close-miking drum kits with condenser microphones for studio and live applications.
Type: Condenser Microphones
-
-
Audio-Technica ATM350D Features:
Low-profile mic design for minimum visibility
Crisp, clear, well-balanced microphone response, even at high SPLs
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

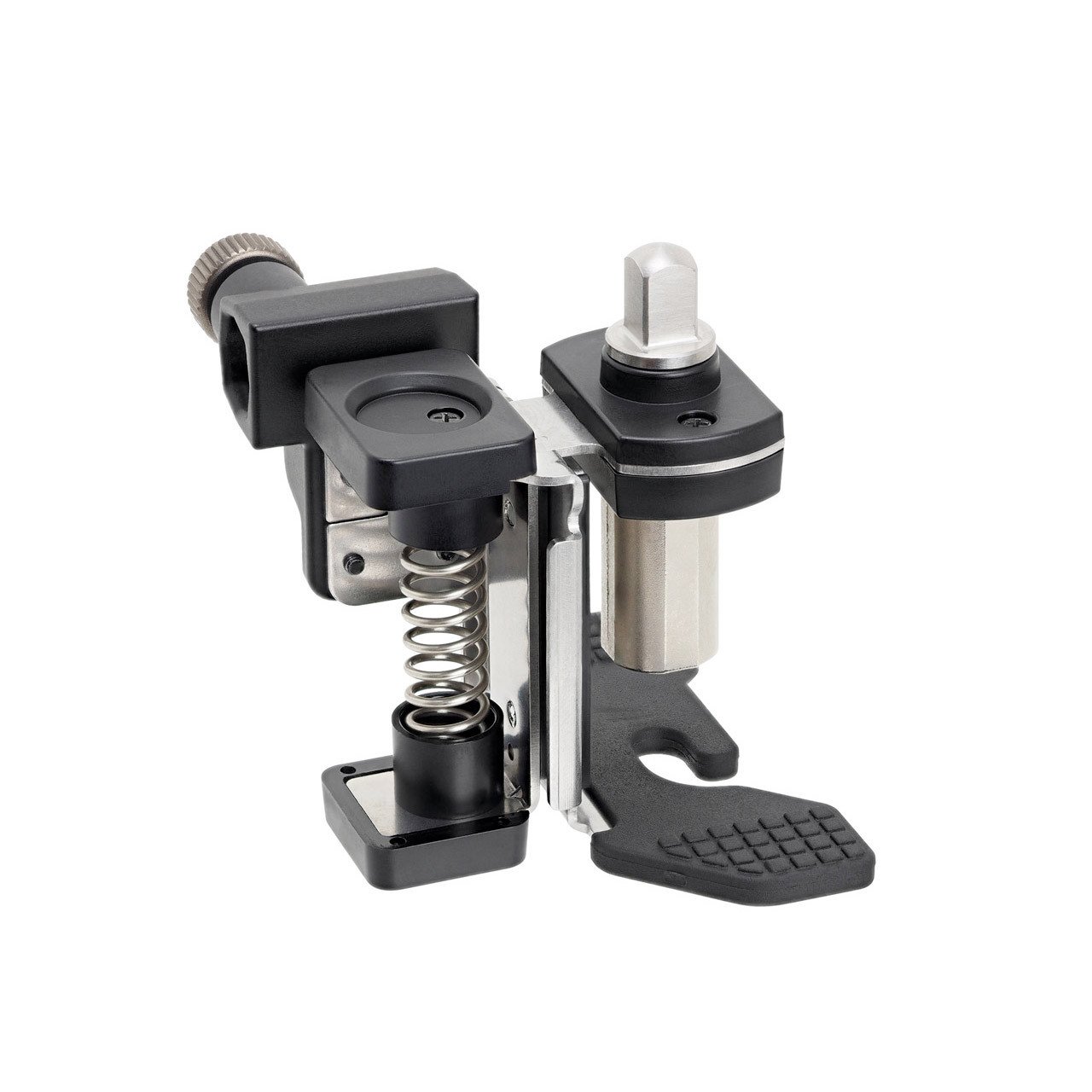

UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphone

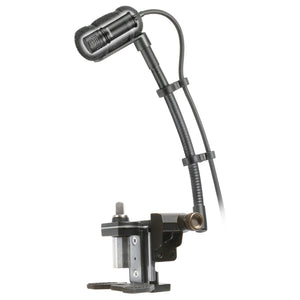

Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
Interchangeable elements available for hypercardioid and omnidirectional polar patterns
Included violin mount with hook-and-loop fastener provides an additional mounting option -
Audio-Technica ATM350D Specifications:
ATM350D Clip-on condenser Inc:
AT8543 PS, AT8490 gooseneck, AT8468 velcro, AT8491D drum mount
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE
200 ohms
MAXIMUM INPUT SOUND LEVEL
159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11– 52V DC, 3.5 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
14.5 g
WEIGHT (POWER MODULE)
90 g
DIMENSIONS (MICROPHONE)
37.8 mm long, 12.2 mm maximum body diameter
DIMENSIONS (POWER MODULE)
92 mm long, 18.9 mm diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
4.0 m long (permanently attached to microphone), 3.2 mm diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS
UE-H hypercardioid (100°); UE-O omnidirectional (360°)

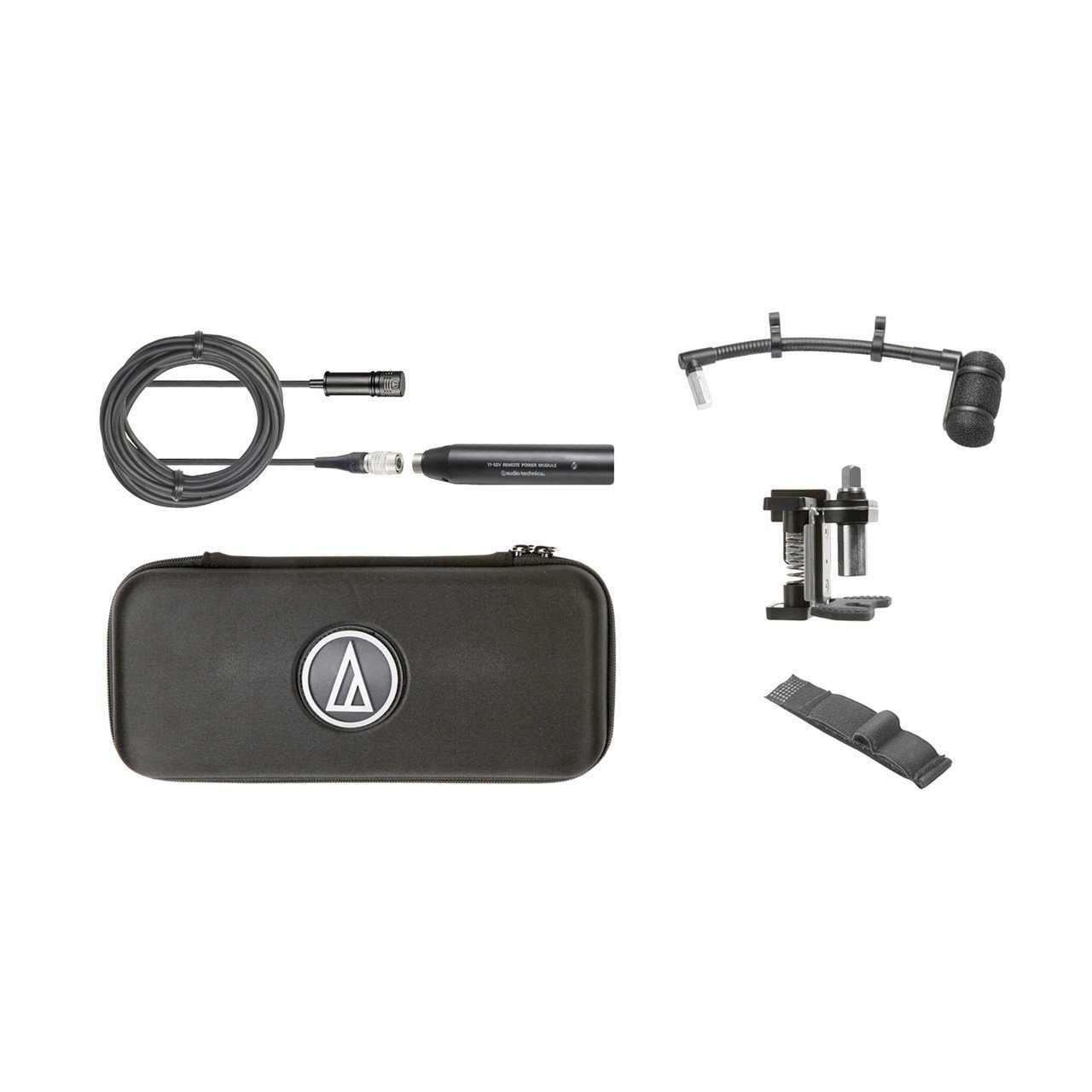

ACCESSORIES
ATM350a cardioid condenser microphone; AT8543 power module; AT8491D UniMount® drum mount; AT8490 UniMount® 5″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
