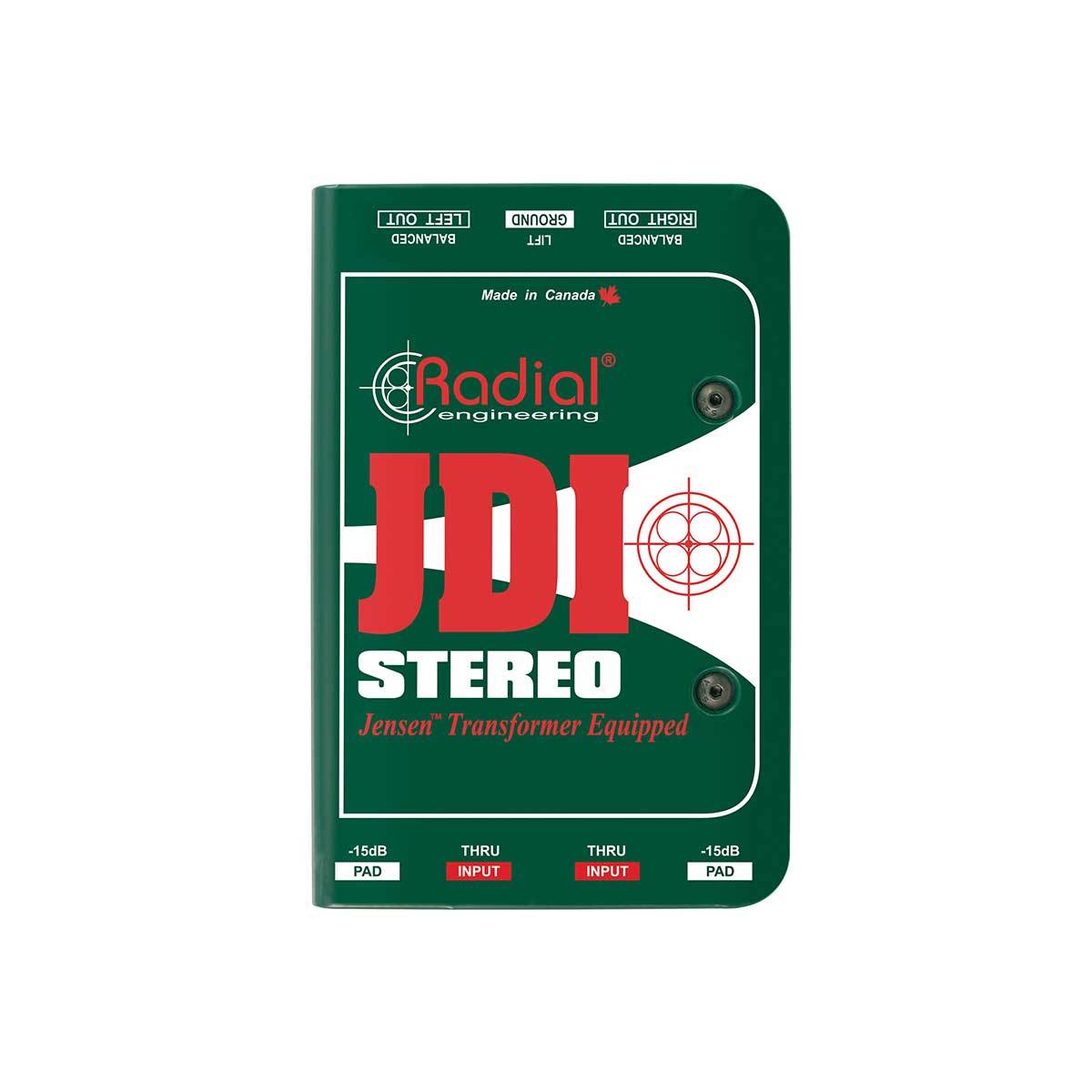

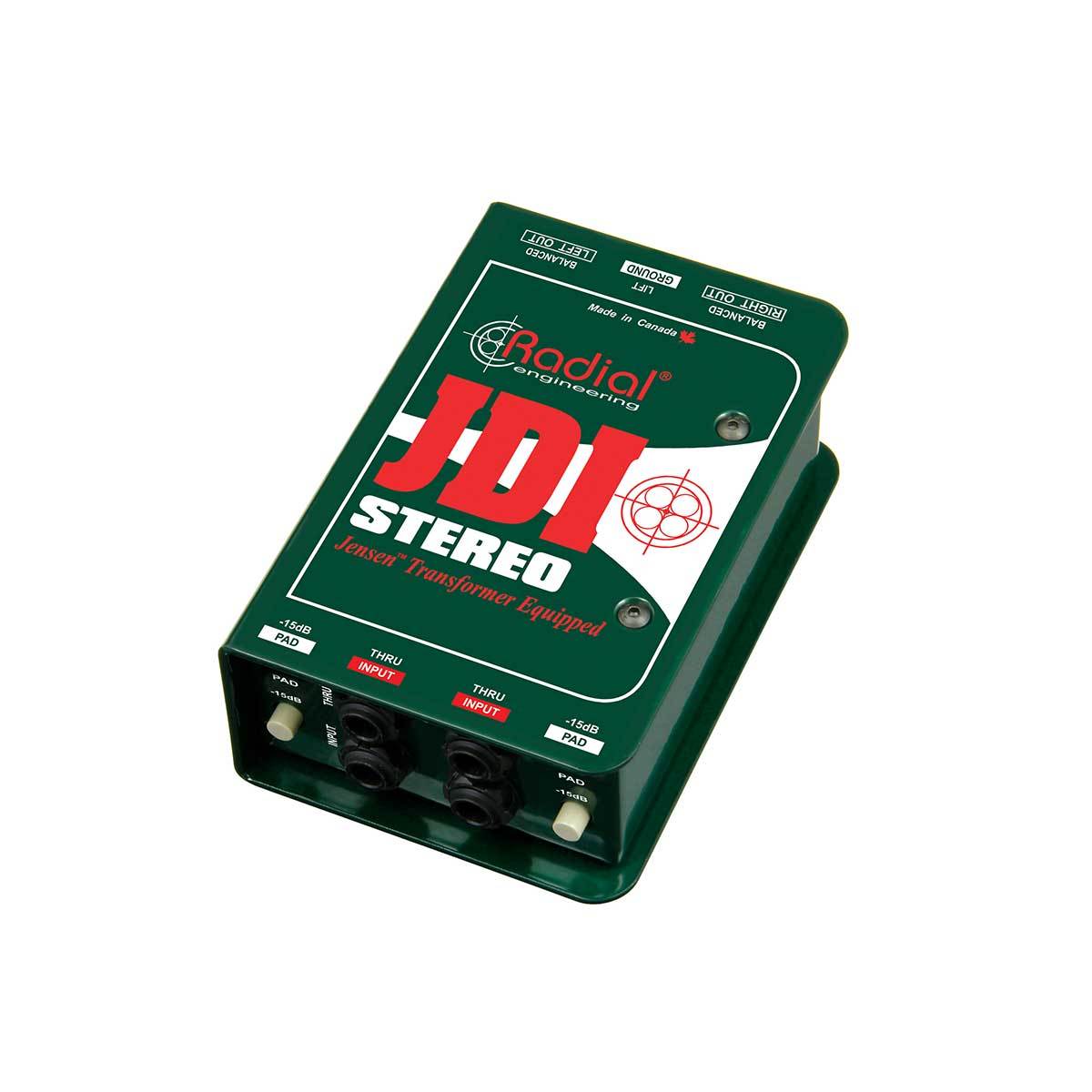

Radial Engineering JDI Stereo Passive Stereo DI Box

The Radial JDI Stereo brings unprecedented sonic transparency and accuracy to any stereo instrument – providing the artist with the freedom to focus on their music.

• FEATURES
• TECH SPECS

• Product Features:

  Jensen transformer equipped passive DI
  Eliminates hum and buzz from ground loops
  Virtually zero phase & harmonic distortion
  Exceptional signal handling and noise rejection
  Compact stereo format for twice the performance

• Technical Specifications:

  Audio circuit type:	Passive, transformer based
  Transformer:	Jensen JT-DBE
  Number of channels:	Two channels (dual mono)
  Frequency response:	20Hz ~ 20KHz (± 0.2dB)
  Dynamic range:	135dB
  Total harmonic distortion:	0.05% from 20Hz ~ 20kHz @-10dB
  Phase Deviation:	0.3° @ 100Hz; 3° @ 20Hz
  Input Impedance:	140k Ohms, unbalanced
  Output Impedance:	150 Ohms, balanced
  Maximum Input:	+21dB @ 20Hz ~ 20kHz
  Features
  Input pad, Ground lift

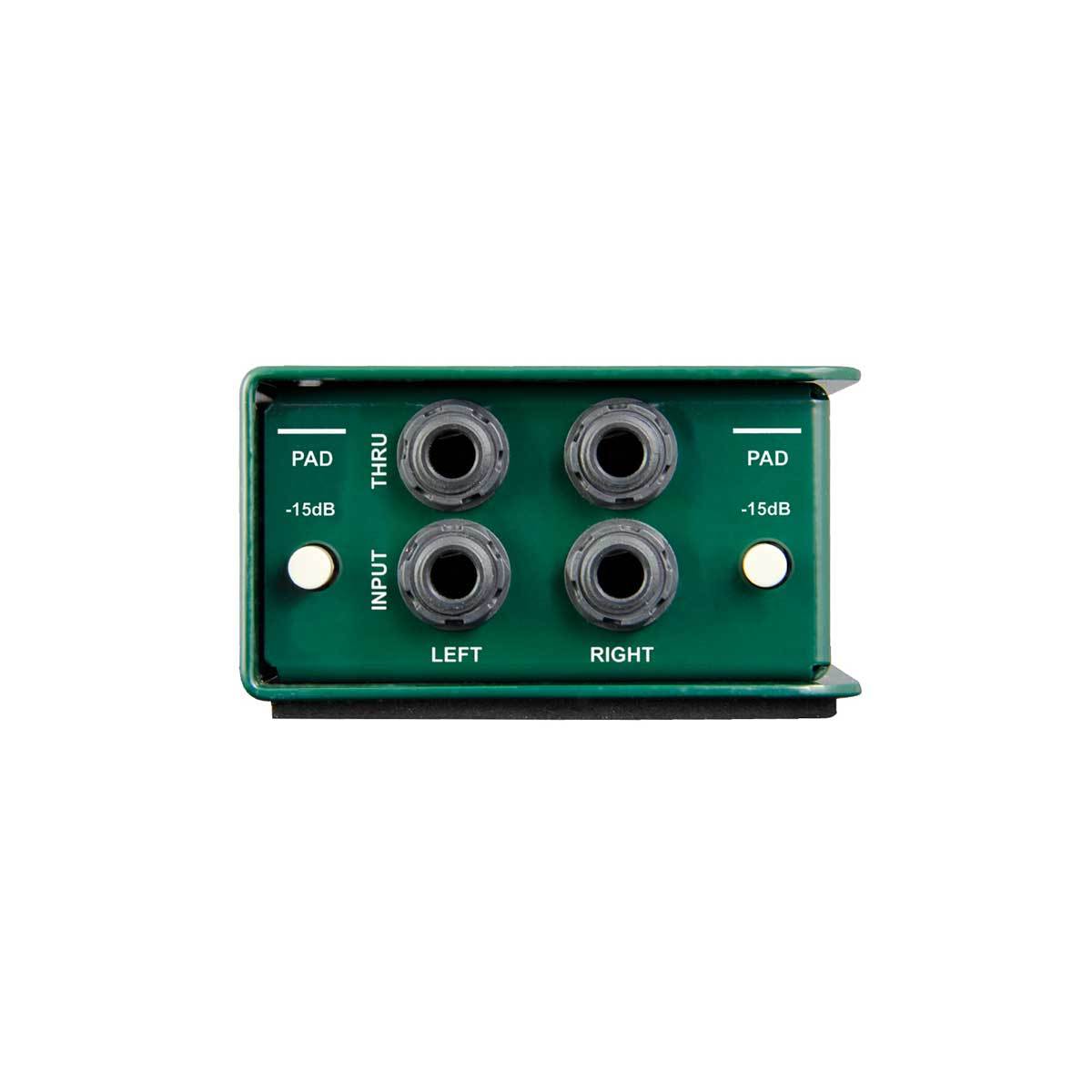

  Input Connectors:	Unbalanced 1/4"

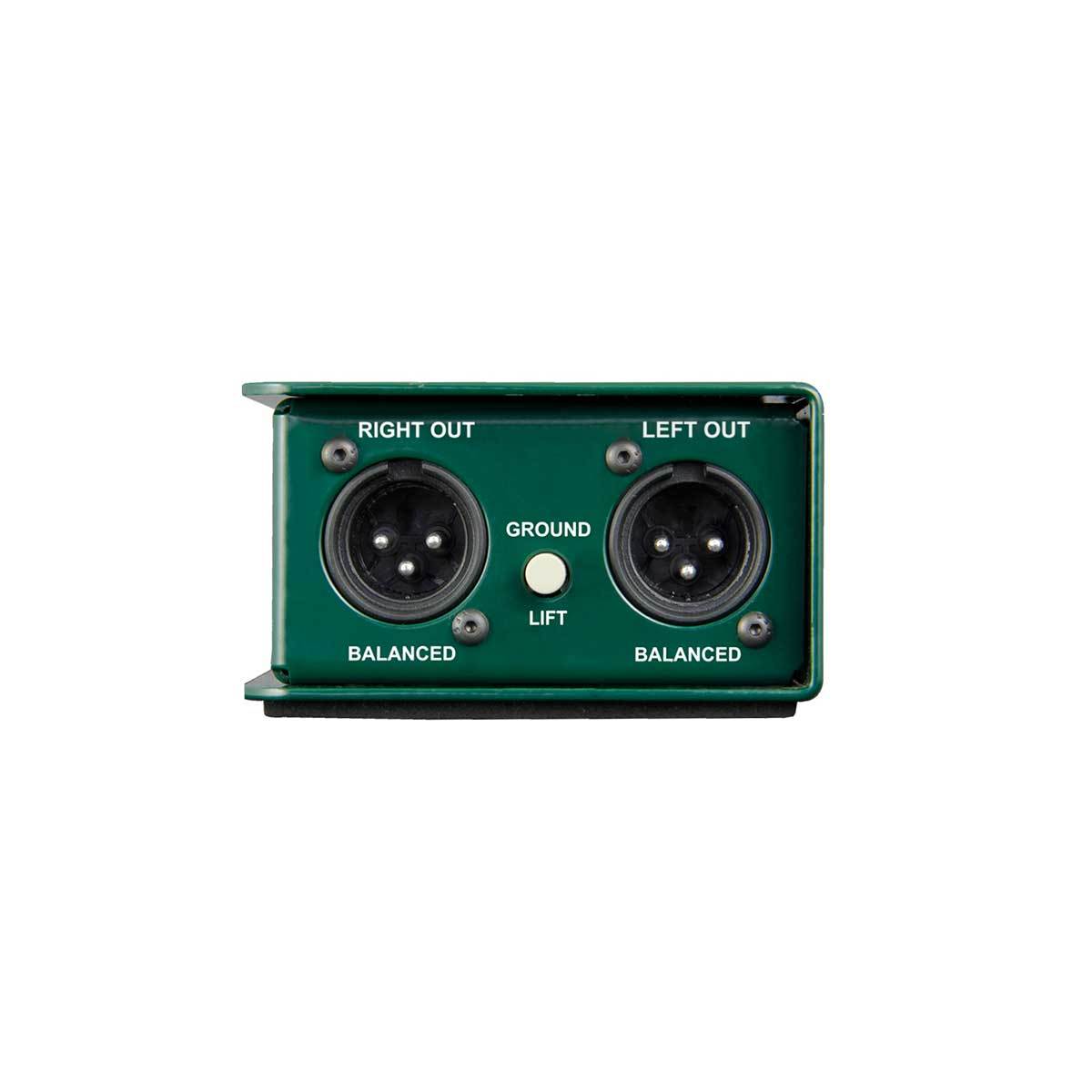

  Output Connectors:	XLR out, 1/4" thru
  General
  Construction:	14 gauge steel chassis & outer shell
  Size (L x W x D):	5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
  Weight:	1.55 lbs (703 grams)
  Shipping size (L x W x D):	6.5" x 4" x 3" (165mm x 102mm x 76mm)
  Shipping weight:	1.92 lbs (870.9 grams)
  Power:	Passive, no power required
  Conditions:	For use in dry locations only between 5°C and 40°C
  Warranty:	Radial 3-year, transferable
