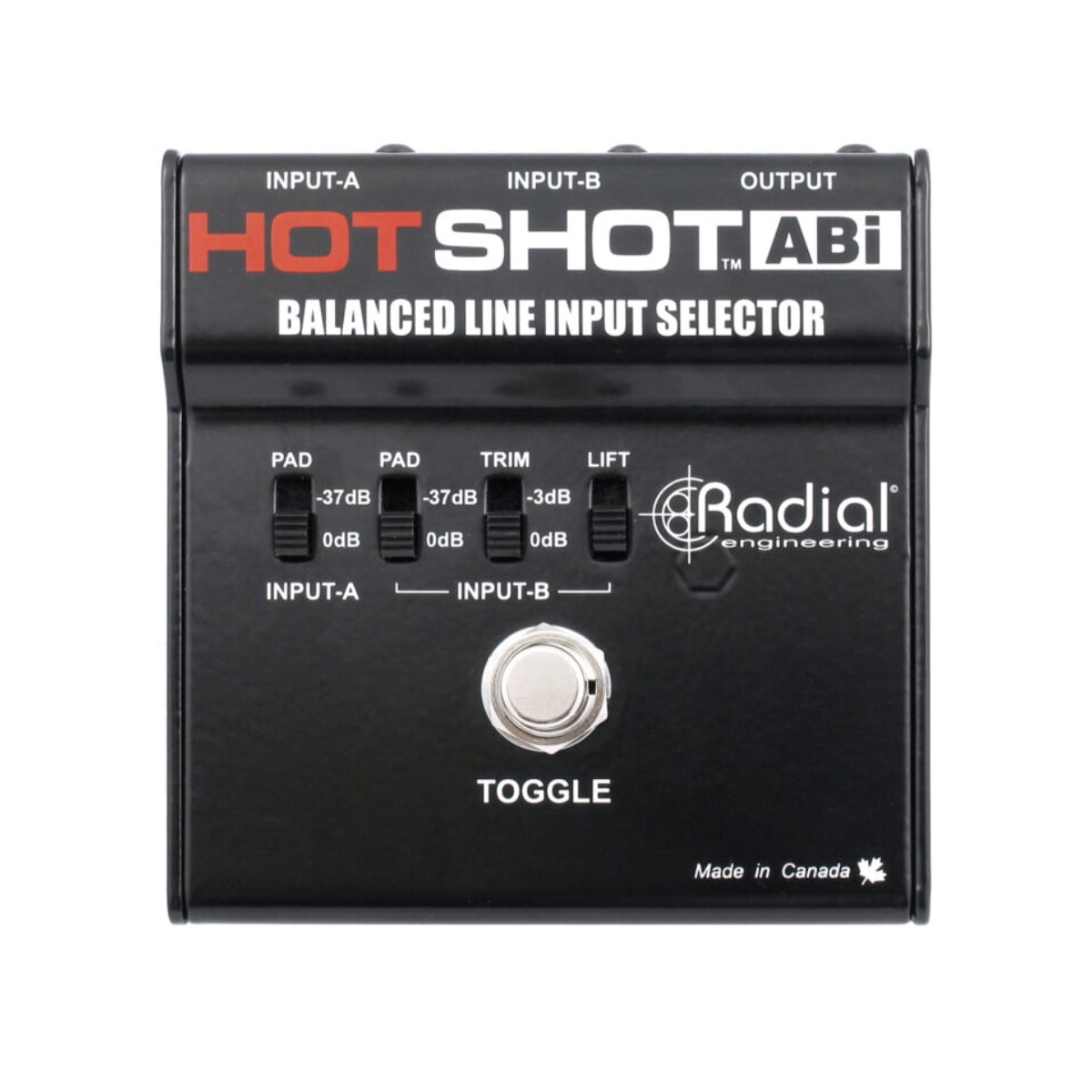

RA-HOTSHOT-ABI
The HotShot ABi is a balanced signal selector that allows you to instantly select between two sources by depressing a latching footswitch
The HotShot ABi makes it easy to select between two balanced inputs on stage, with a single latching footswitch to toggle from one source to the other. This allows an artist to switch between two dynamic microphones during a performance, freeing up input channels on your mixer. The latching footswitch also opens the door for other useful applications, including using the ABi as a mute to turn off a microphone, select between two wireless receivers, or switch between two mono-playback devices.
Audio circuit type: | Passive, true-bypass | |
Frequency response: | 20Hz ~ 20kHz | |
Dynamic range: | Unlimited | |
Features | ||
Input pad, Ground lift | ||
Input Connectors: | Two XLR inputs | |
Output Connectors: | One XLR output | |
General | ||
Construction: | 14-Gauge Steel | |
Size (L x W x D): | 3.9" x 3.6" x 2" (99 x 92 x 51mm) | |
Weight: | 1.25 lb (0.56 kg) | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
Type: Pedals & Effects
