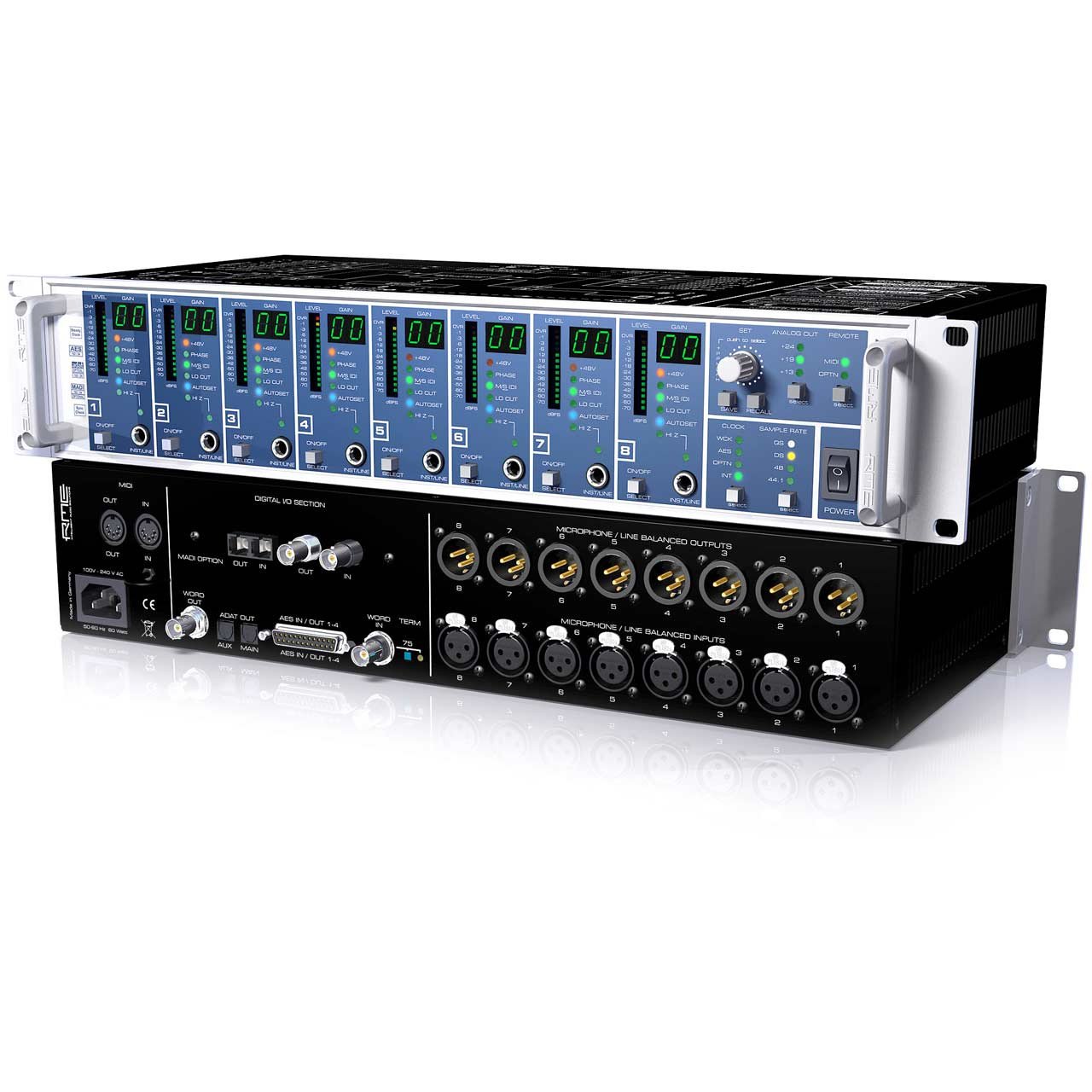

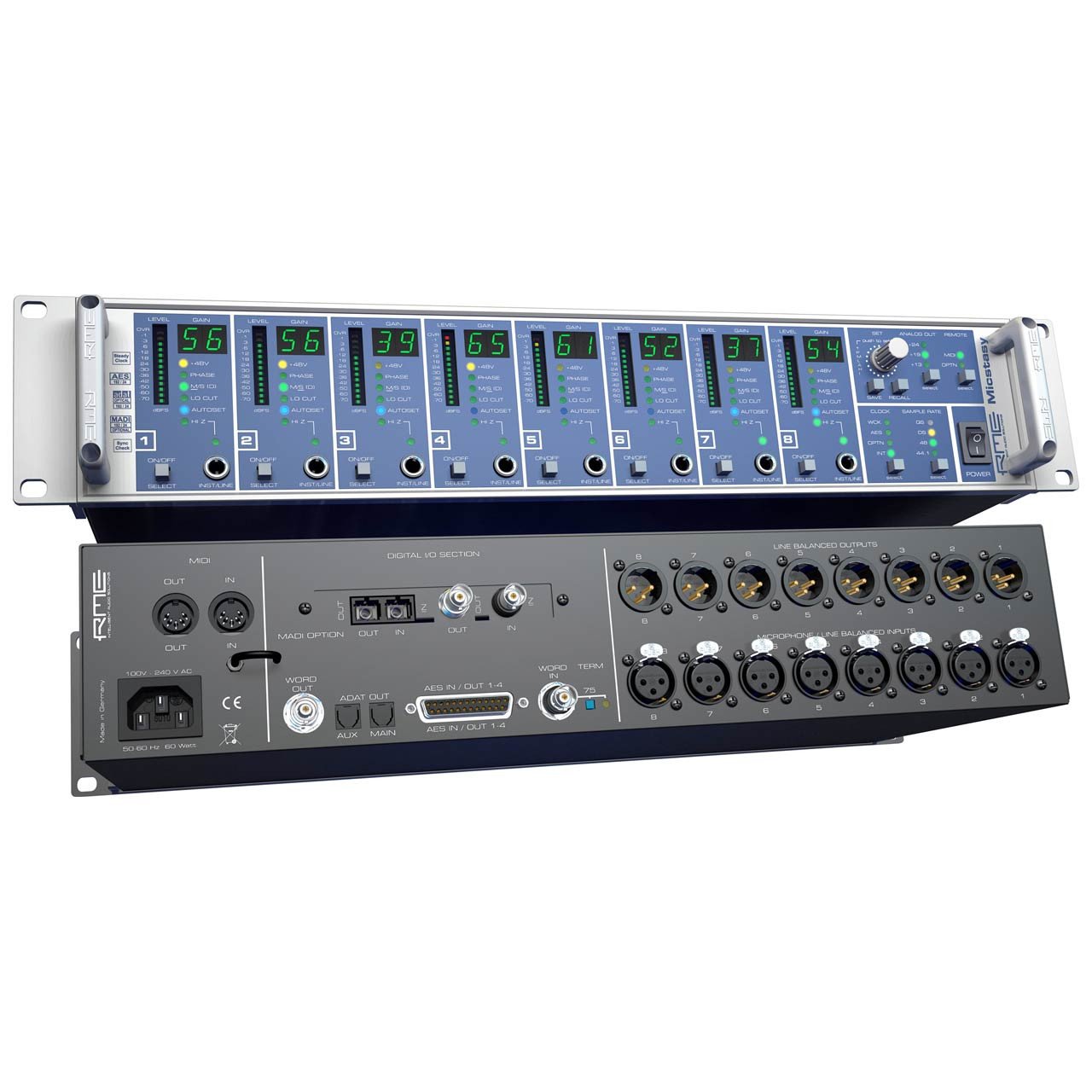

RME Micstasy 24-Bit/192kHz 8-Channel Full Range Preamp & AD Converter

Name: RME Micstasy 24-Bit/192kHz 8-Channel Full Range Preamp & AD Converter
Brand: RME
SKU: RME-MICSTASY
Price: 6099.0 AUD
Availability: OutOfStock

Or Rent From

$59.08 per weekReturn any time after minimum rental agreement

Apply Now Learn More Apply to Purchase Info

Type: Preamps/Channel Strips

VIDEO
FEATURES
TECH SPECS

RME Micstasy Features:
8 balanced XLR mic/line inputs with 85 dB gain range
Analog input level from -56.5 dBu up to +30 dBu
High-end circuitry with 4 relays per channel, super low-noise microphone front-end
Near click-free gain changes in steps of 0.5 dB
Large frequency range (200 kHz) with special EMI input filtering
8 balanced TRS line / instrument inputs with Hi-Z option
8 balanced XLR line outputs, maximum level +27 dBu
4 x AES/EBU Out via D-sub, 8 channels @ 192 kHz
2 x ADAT Out, 8 channels @ 96 kHz (SMUX and SMUX4)
Optional MADI I/O (I64 MADI Card) with serial cascading and digital return path
Symmetrical hi-pass (Lo Cut) with super-low THD, 18 dB/oct

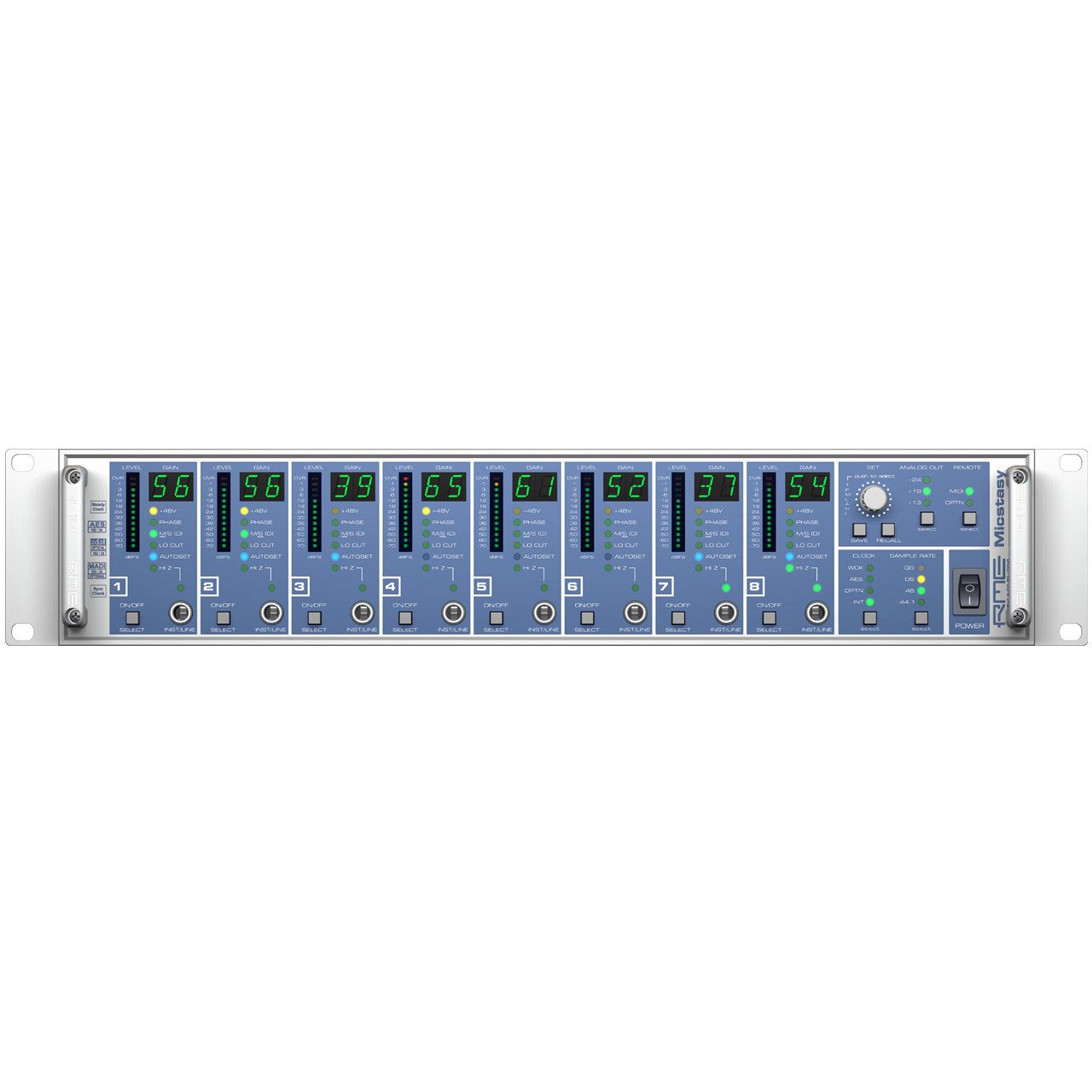

LED level meter with 13 LEDs per channel
M/S de-/encoding for the digital output
AutoSet: Automatic gain reduction with multiple linking
Current state can be stored to 8 user presets
Fully remote controllable

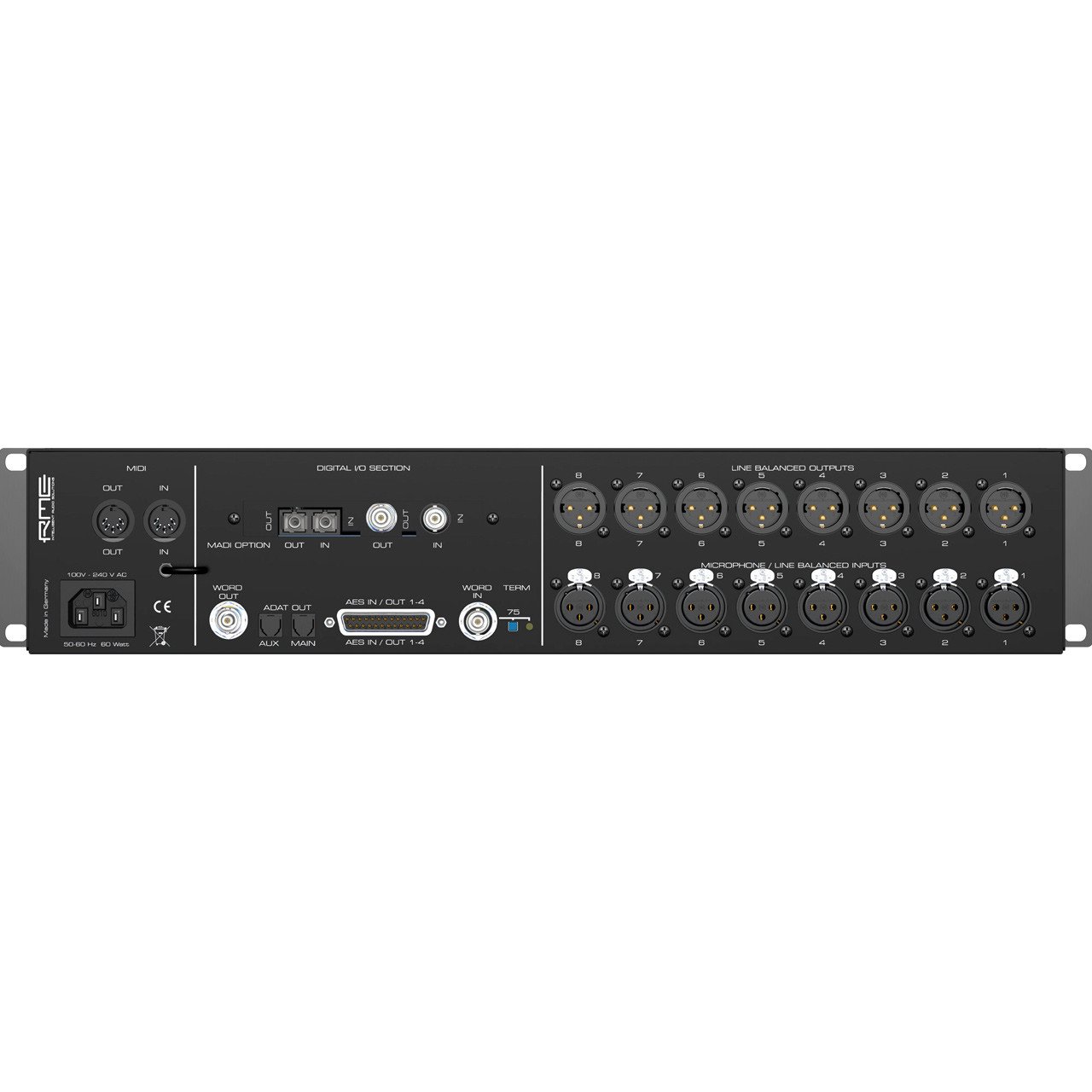

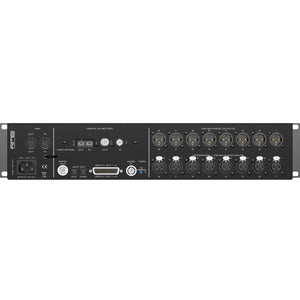

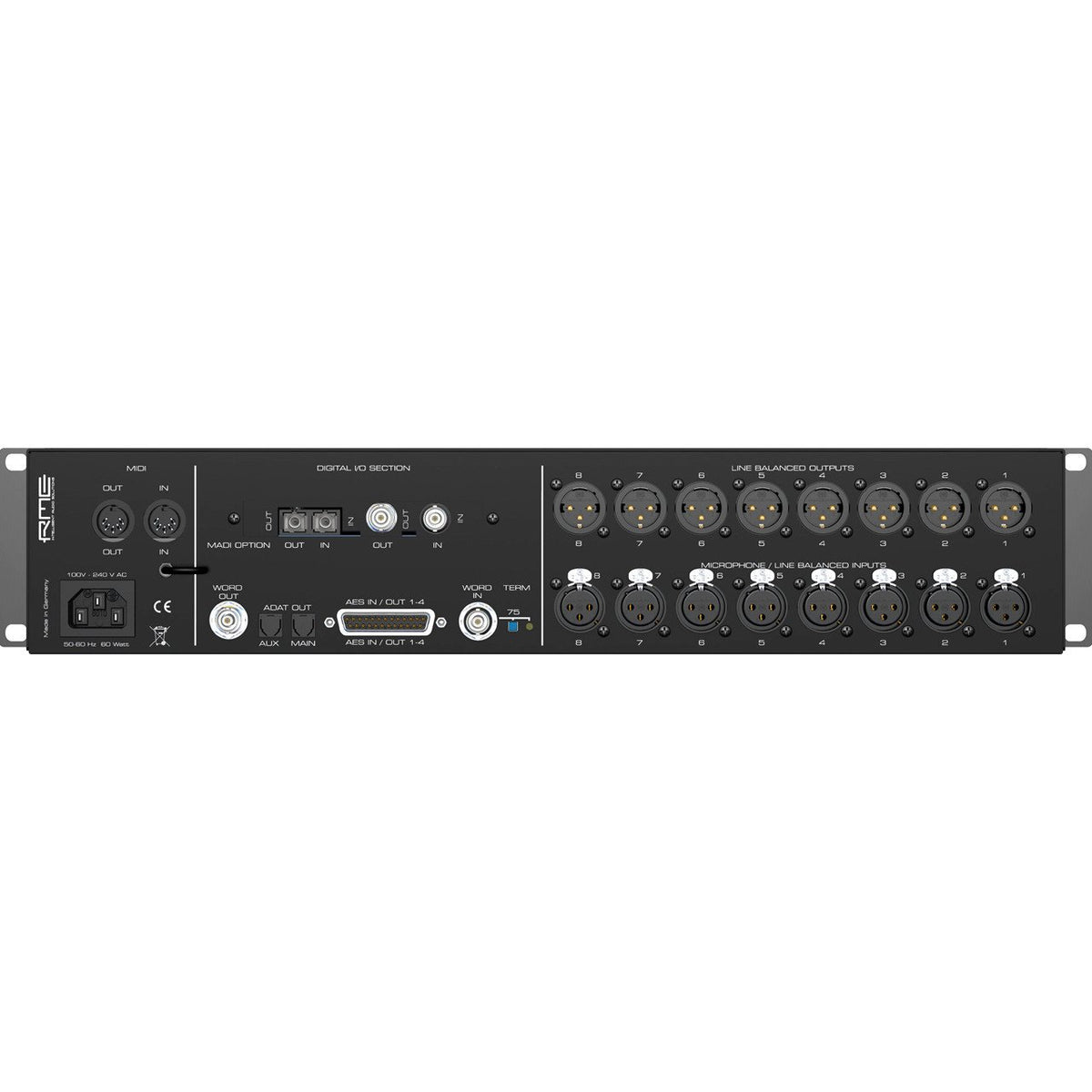

Connectivity:
8 x Analog Input Preamps (XLR/Line with 85 dB gain range)
8 x Analog Output (XLR)
4 x AES/EBU Out (8 channels @ 192 kHz)
2 x ADAT Out (SMUX and SMUX4)
MIDI I/O
Word clock I/O
optional: MADI I/O (I 64 MADI Card)
RME Micstasy Specifications:
Frequency response -0.1 dB: 20 Hz - 100 kHz
EIN @ 30 dB Gain @ 150 Ohm: 122.3 dBu
EIN @ 40 dB Gain @ 150 Ohm: 126.5 dBu
EIN @ 50/60/70 dB Gain @ 150 Ohm: 127.4 dBu
THD+N @ 30 dB Gain: < -100 dB, < 0.001 %
Signal to Noise ratio AD (SNR) @ +30 dBu: 115.2 dB RMS unweighted, 118.5 dBA
Signal to Noise ratio AD (SNR) @ +21 dBu: 112.7 dB RMS unweighted, 116 dBA
Signal to Noise ratio AD (SNR) @ +13 dBu: 110 dB RMS unweighted, 113 dBA
Sync sources: Internal, AES, word, Option (MADI)
Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (external clocks)
Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
Jitter: Typical < 1 ns for internal, word clock, AES and MADI input
Jitter suppression: >30 dB (2.4 kHz)
Jitter sensitivity: all PLLs operate error-free even at 100 ns
Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
Dimensions: (WxHxD) 483 x 88 x 200 mm
Warranty: 2 years
