MA300

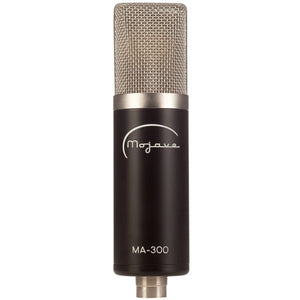

Mojave MA-300 Multi Pattern Vacuum Tube Condenser Microphone

The Mojave MA-300 is based upon the hugely popular MA-200 designed by David Royer, but also includes a variable pickup pattern selector, 15dB pad and switchable bass roll-off - a highly versatile studio mic. The MA-300 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artefacts that are often encountered with modern condenser microphones.


    • Mojave MA-300 PRODUCT FEATURES:

      Utilizing hand-selected, double diaphragm 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-300 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-300 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-300 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

      Features:

      • Remotely controlled, continuously variable polar pattern selector
      • Switchable 15dB pad
      • Switchable Bass Roll-off
      • Hand-selected 3-micron double diaphragm capsule
      • Jensen audio transformer
      • Military grade JAN 5840 vacuum tube
      • Internal switchable power supply voltage
      • Ultra clean signal path

      Recommended applications:

      Use anywhere you would use an expensive, large diaphragm tube microphone.

      • Vocals
      • Voice Over and Broadcast
      • Acoustic Instruments
      • Piano
      • Drum Overheads, Drum Rooms
      • Orchestral Recording
      • Choral Recording
    • Mojave MA-300 TECHNICAL SPECIFICATIONS:

      TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.

      DIAPHRAGM: 1-inch diameter, gold sputtered

      DIAPHRAGM THICKNESS : 3-microns

      POLAR RESPONSE: Continuously variable from omnidirectional to figure-eight.

      FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in "cut" setting

      SENSITIVITY: -37dB re 1V/pa

      MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

      DISTORTION:< 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off, < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on

      SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)

      PAD: 15 dB

      BASS CUT: 6 dB per octave below 100 hertz.

      DIMENSIONS AND WEIGHT:

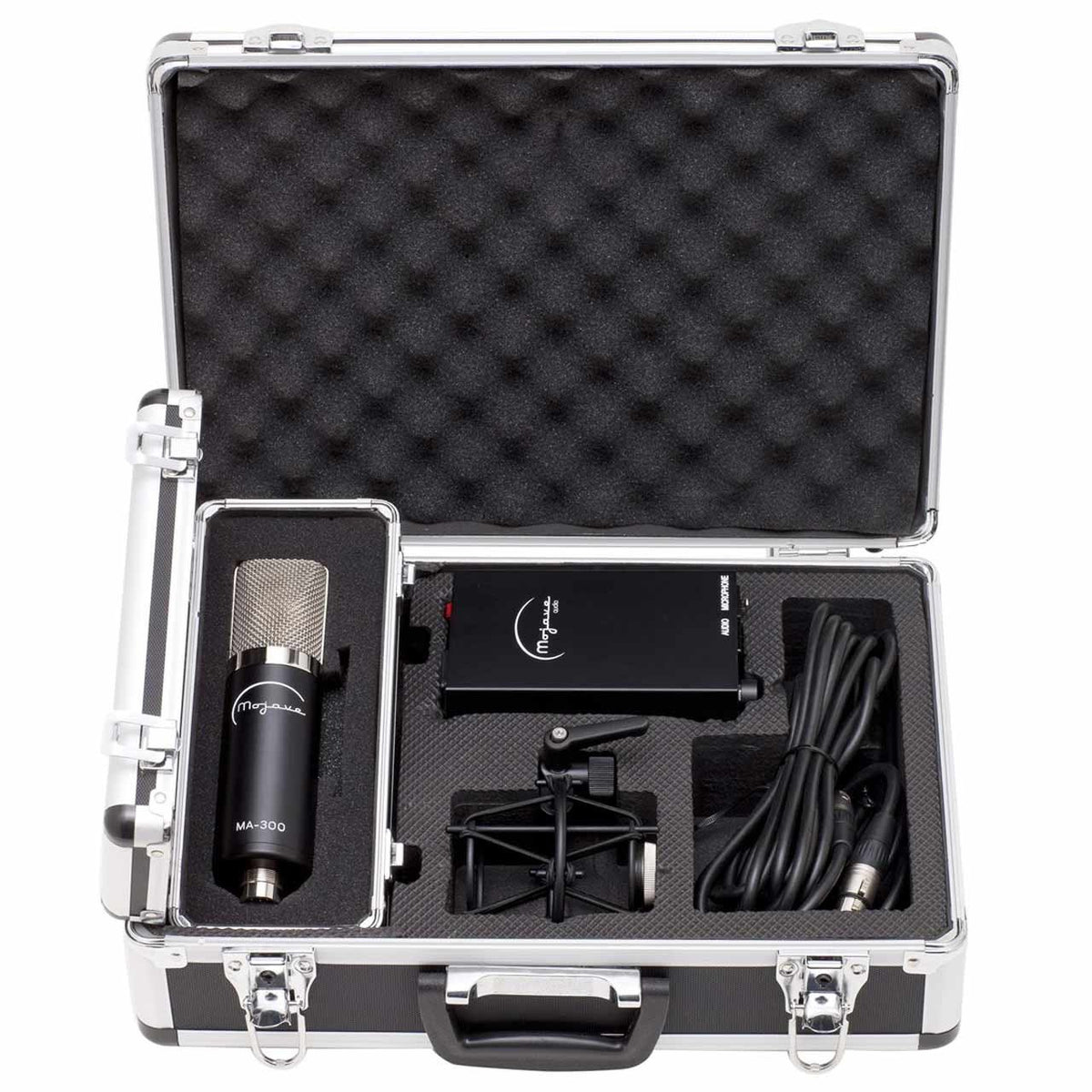

      Carrying case with microphone, power supply, shock mount
      and cables: 13 lbs.
      Microphone: 7 5/8" X 2", 1 lb.

Need more info on the Mojave MA-300? Click HERE for the manufacturer's website >>>
