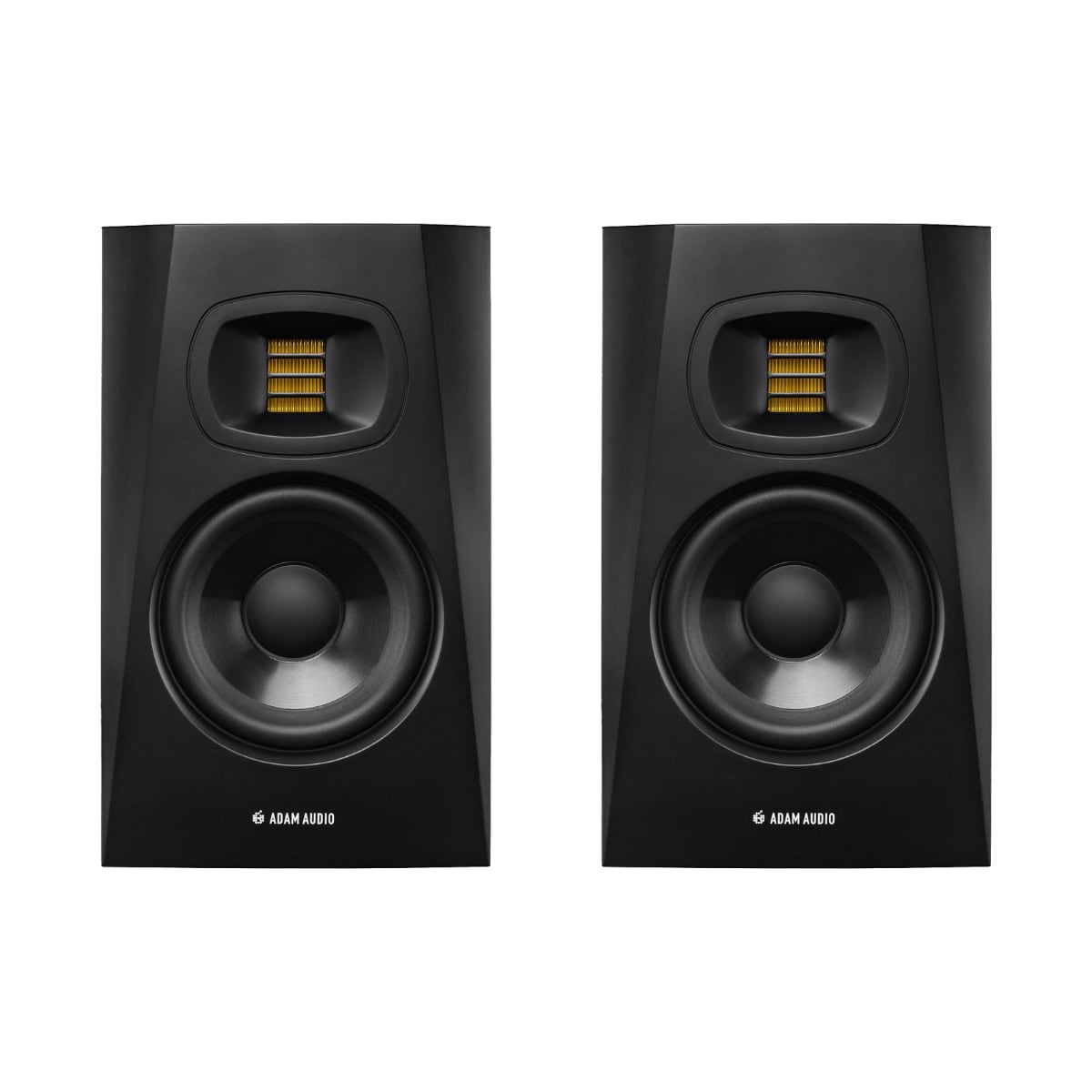

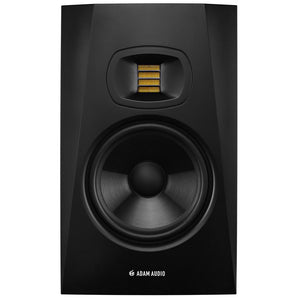

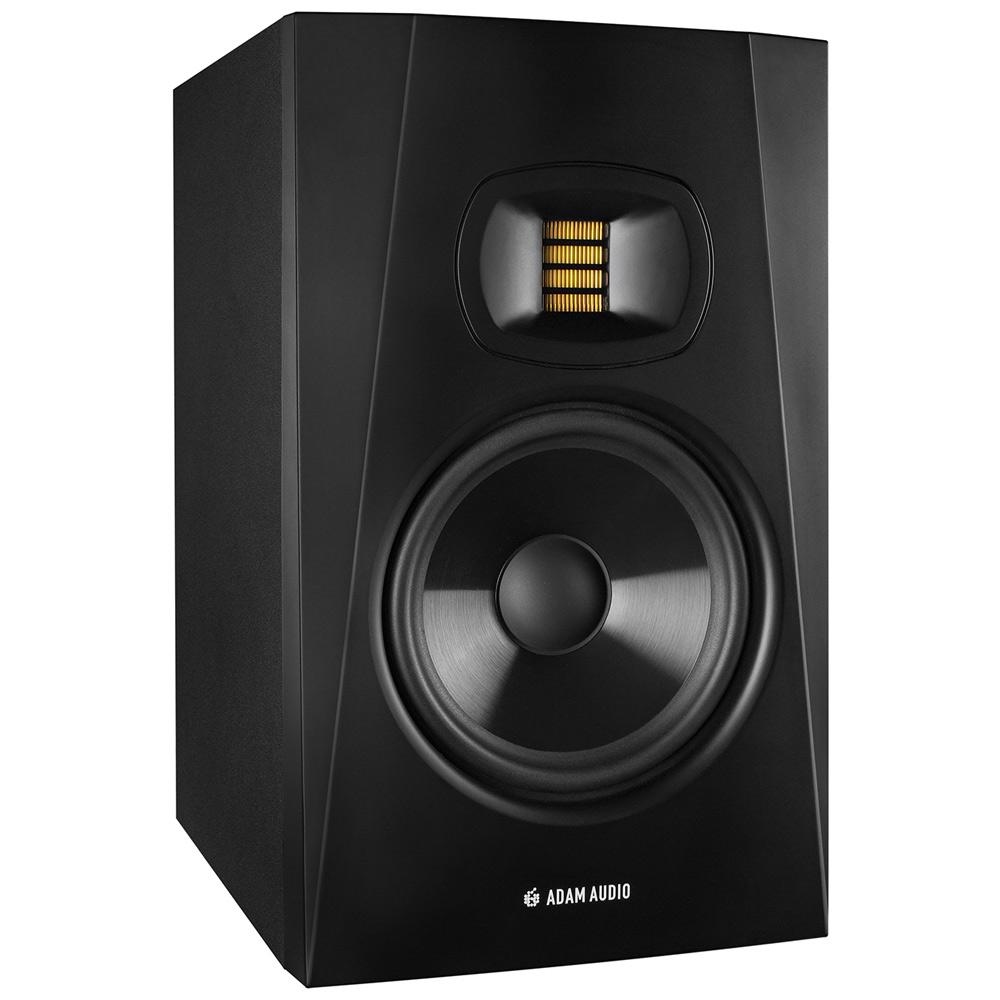

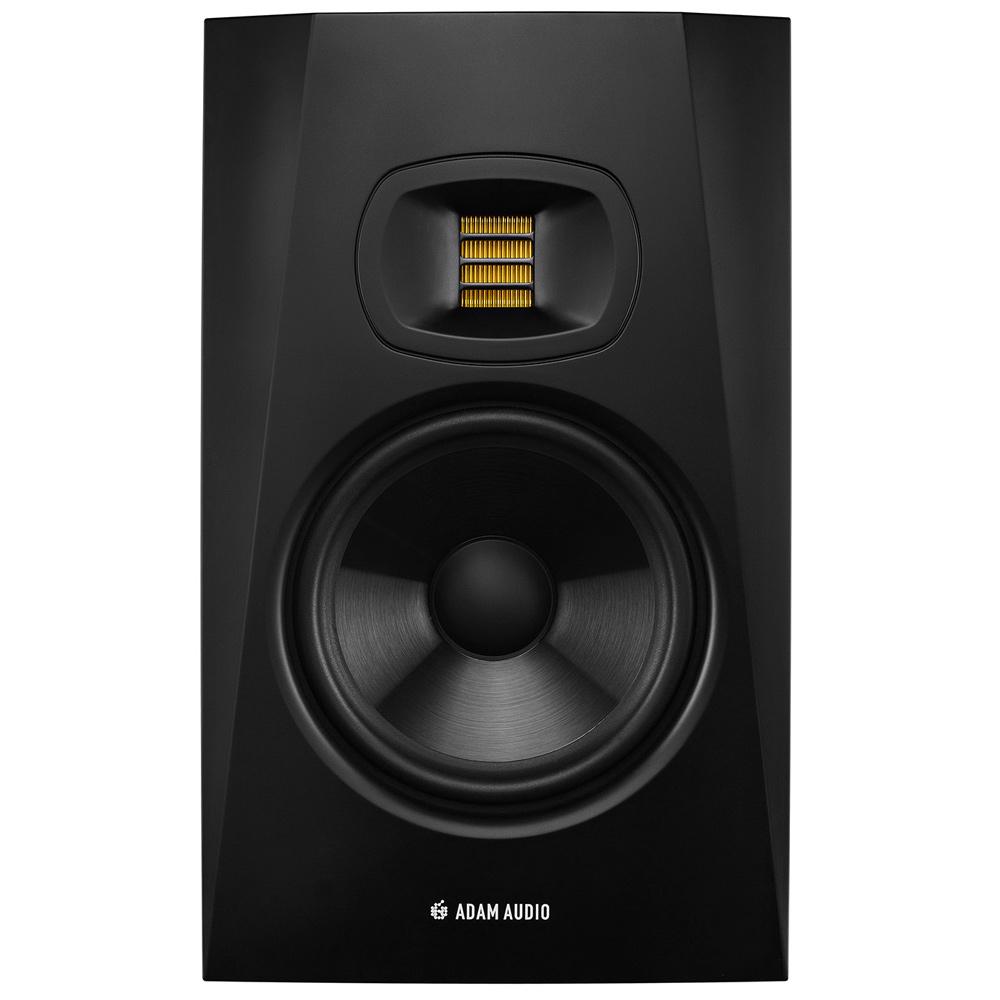

ADAM Audio T7V Active Studio Monitor Speaker (SINGLE)

The ADAM Audio T7V is without a doubt, one of the best value-for-money 7" monitors on the market. The wide frequency response, high dynamic range, excellent transient response, wide sweet spot, and small footprint make the T7V perfectly suited for use in small rooms – a great fit for the modest budgets that many facilities need to work with.

Features

U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
Polypropylene 7” woofer and rear-firing bass-reflex port
Cumulated Amp. Power RMS: 70 W
Frequency Response: 39 Hz - 25 kHz
Max. SPL Per Pair at 1 m: ≥110 dB

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High-Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

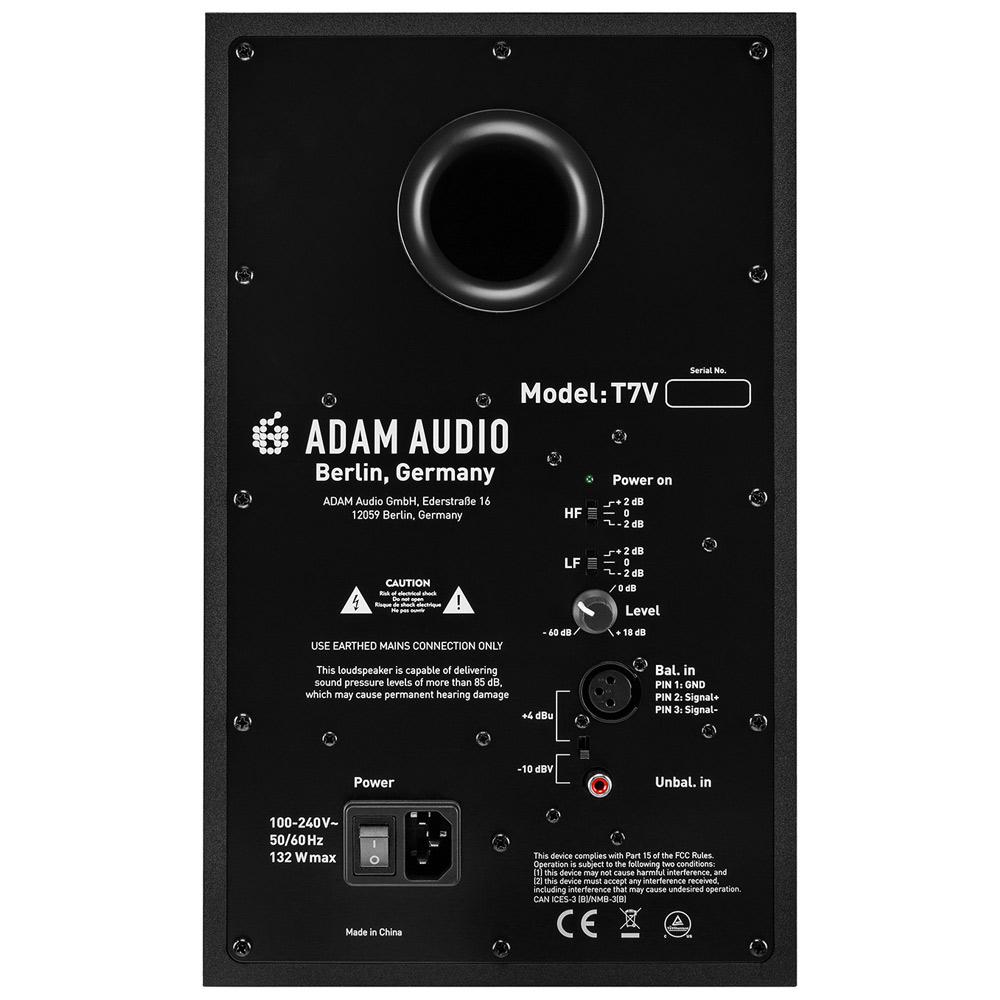

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

The ADAM Sub8 subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.

SPECIFICATIONS:

WOOFER

Number	1
Basket Ø	7" (178 mm)
Cone Material	Polypropylene

TWEETER

Number	1
Type	U-ART
Diaphragm Area	4 inch² (2420 mm²)
Equiv. Diaphragm Ø	1.9" (48 mm)
Velocity Transform Ratio	4:1
Diaphragm Weight	0.17 g
Waveguide	HPS

BUILT-IN AMPLIFIERS

Number	2
Woofer	1
Type	PWM
Amp. Power RMS	50 W
Tweeter	1
Type	PWM
Amp. Power RMS	20 W

CONTROL OPTIONS

Input Sensitivity	Switchable +4 dBu / -10 dBV
Gain	Yes
High-Shelf	- 2 dB, 0 dB, +2 dB
Low-Shelf	- 2 dB, 0 dB, +2 dB

INPUT CONNECTORS

Analog	XLR, RCA
Input Impedance	10 kOhm / 20 kOhm

GENERAL DATA

Panel	Rear
Frequency Response	39 Hz - 25 kHz
THD > 80 Hz	0.5 %
Max. SPL per pair at 1 m	≥110 dB
Crossover Frequency	2.6 kHz
Max. Power Consumption	132 W
Weight	15.7 lbs (7.1 kg)
Height x Width x Depth	13.7" x 8.3" x 11.5” ( 347 mm x 210 mm x 293 mm)
Warranty	5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents	Power cord, Quick Start Guide

Need more info on the Adam T7V? Click HERE for the manufacturer's website >>>

Type: Active Studio Monitors
