11102710

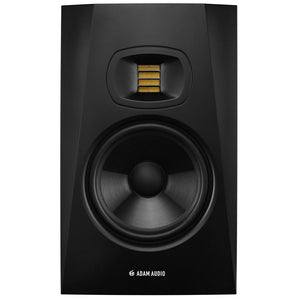

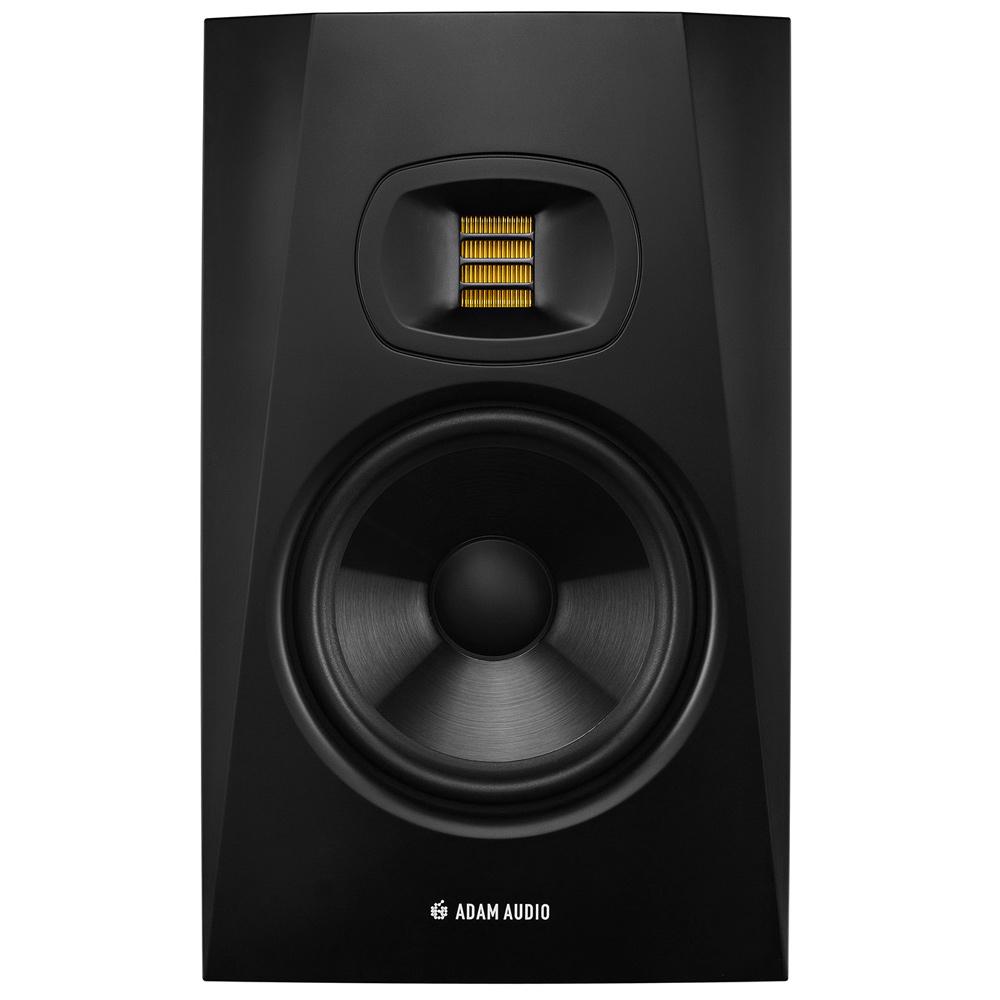

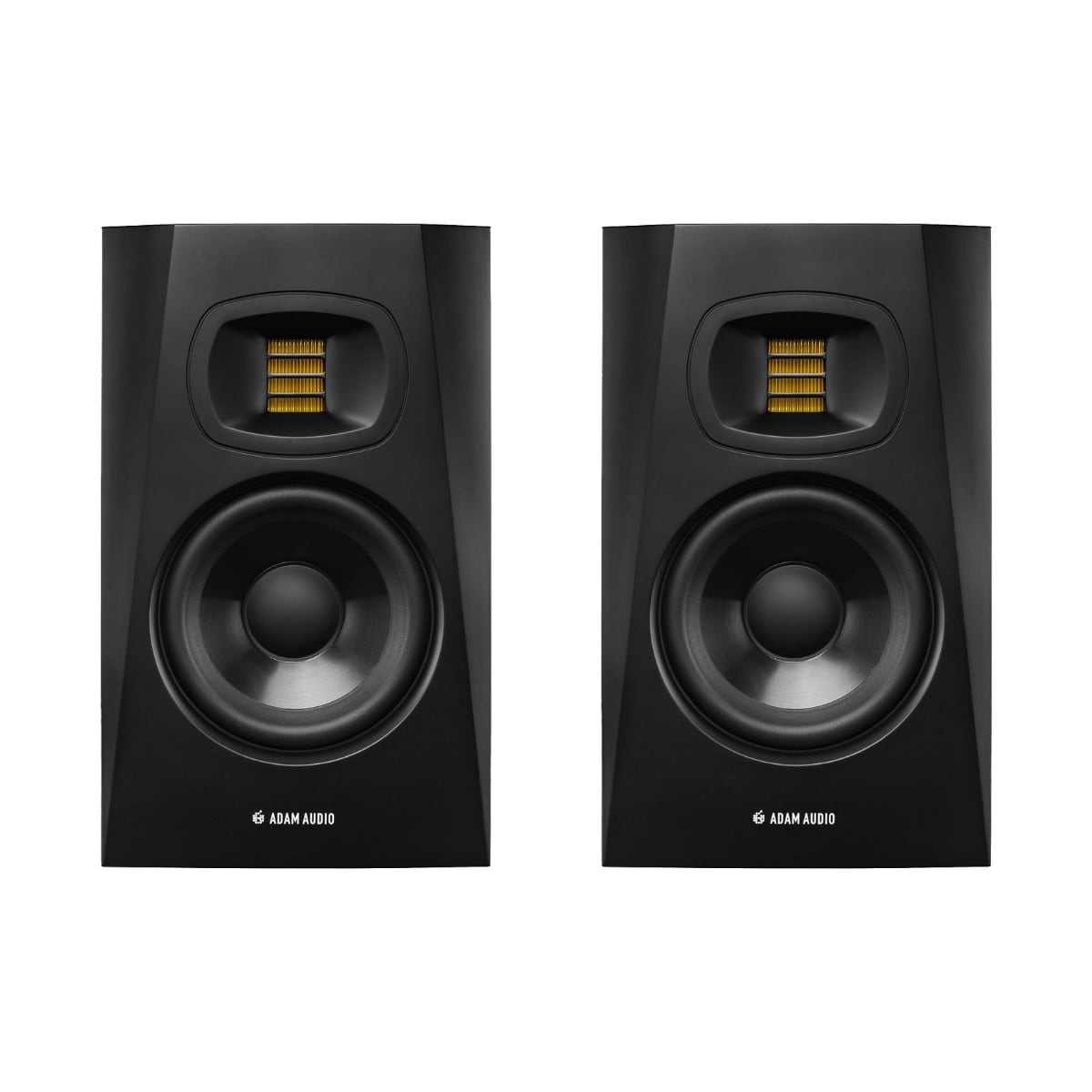

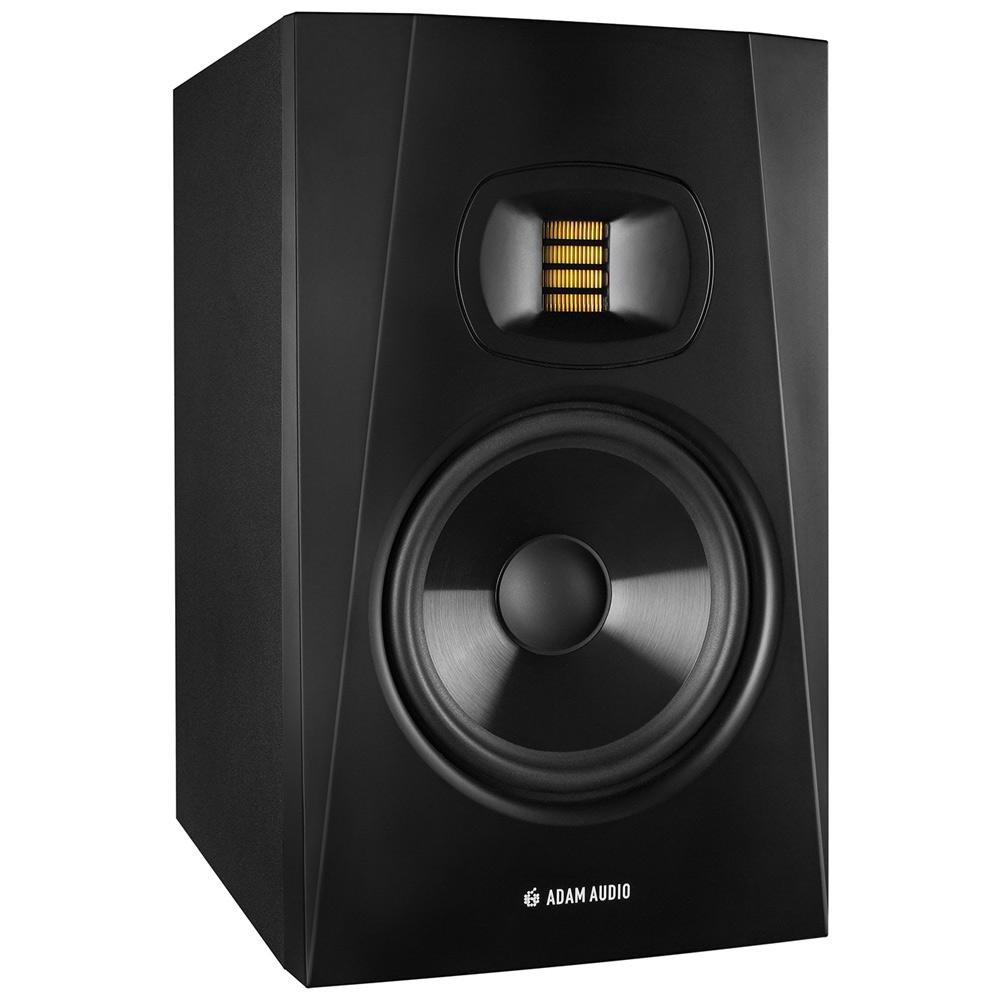

The ADAM Audio T7V is without a doubt, one of the best value-for-money 7" monitors on the market. The wide frequency response, high dynamic range, excellent transient response, wide sweet spot, and small footprint make the T7V perfectly suited for use in small rooms – a great fit for the modest budgets that many facilities need to work with.
U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
Polypropylene 7” woofer and rear-firing bass-reflex port
Cumulated Amp. Power RMS: 70 W
Frequency Response: 39 Hz - 25 kHz
Max. SPL Per Pair at 1 m: ≥110 dB
The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High-Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

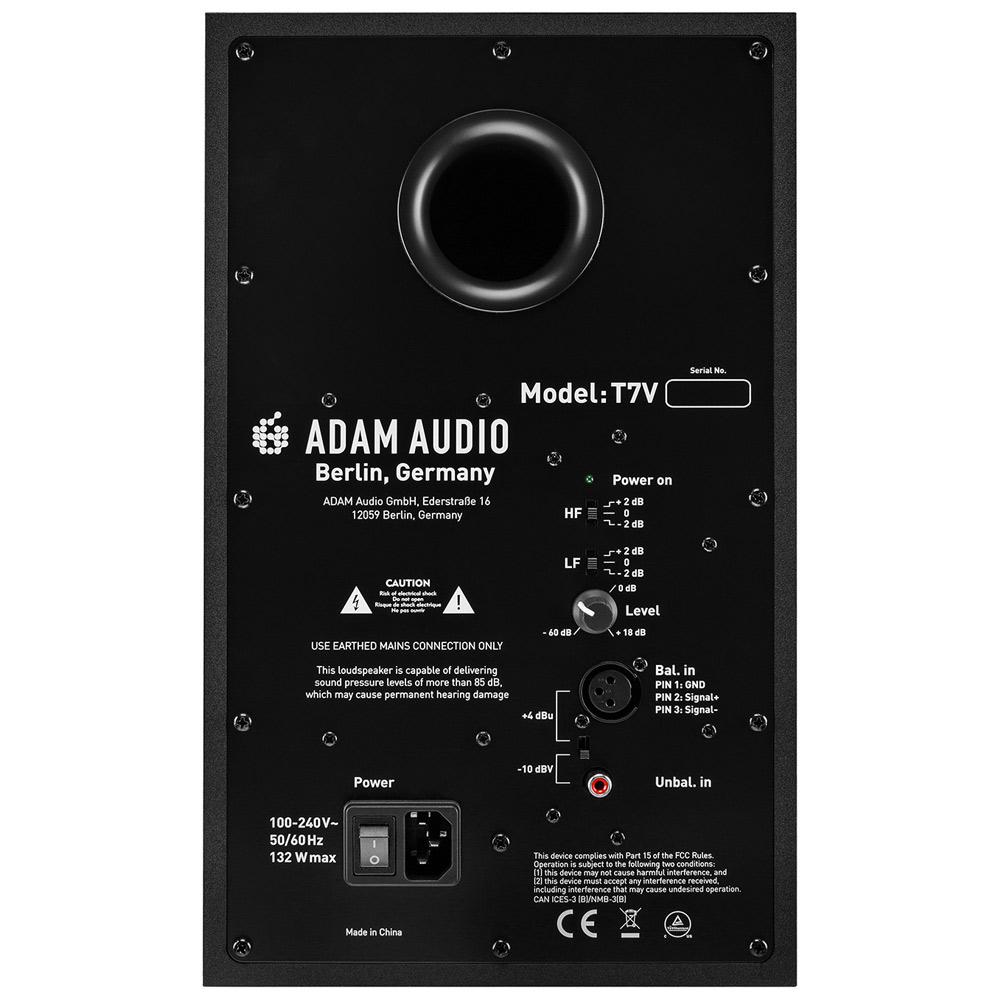

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.
The ADAM Sub8 subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.
Number |
1 |
Basket Ø |
7" (178 mm) |
Cone Material |
Polypropylene |
Number |
1 |
Type |
U-ART |
Diaphragm Area |
4 inch² (2420 mm²) |
Equiv. Diaphragm Ø |
1.9" (48 mm) |
Velocity Transform Ratio |
4:1 |
Diaphragm Weight |
0.17 g |
Waveguide |
HPS |
Number |
2 |
Woofer |
1 |
Type |
PWM |
Amp. Power RMS |
50 W |
Tweeter |
1 |
Type |
PWM |
Amp. Power RMS |
20 W |
Input Sensitivity |
Switchable +4 dBu / -10 dBV |
Gain |
Yes |
High-Shelf |
- 2 dB, 0 dB, +2 dB |
Low-Shelf |
- 2 dB, 0 dB, +2 dB |
Analog |
XLR, RCA |
Input Impedance |
10 kOhm / 20 kOhm |
Panel |
Rear |
Frequency Response |
39 Hz - 25 kHz |
THD > 80 Hz |
0.5 % |
Max. SPL per pair at 1 m |
≥110 dB |
Crossover Frequency |
2.6 kHz |
Max. Power Consumption |
132 W |
Weight |
15.7 lbs (7.1 kg) |
Height x Width x Depth |
13.7" x 8.3" x 11.5” ( 347 mm x 210 mm x 293 mm) |
Warranty |
5 years (2 years warranty plus 3 years optional with product registration) |
Delivery Contents |
Power cord, Quick Start Guide |
Type: Active Studio Monitors
