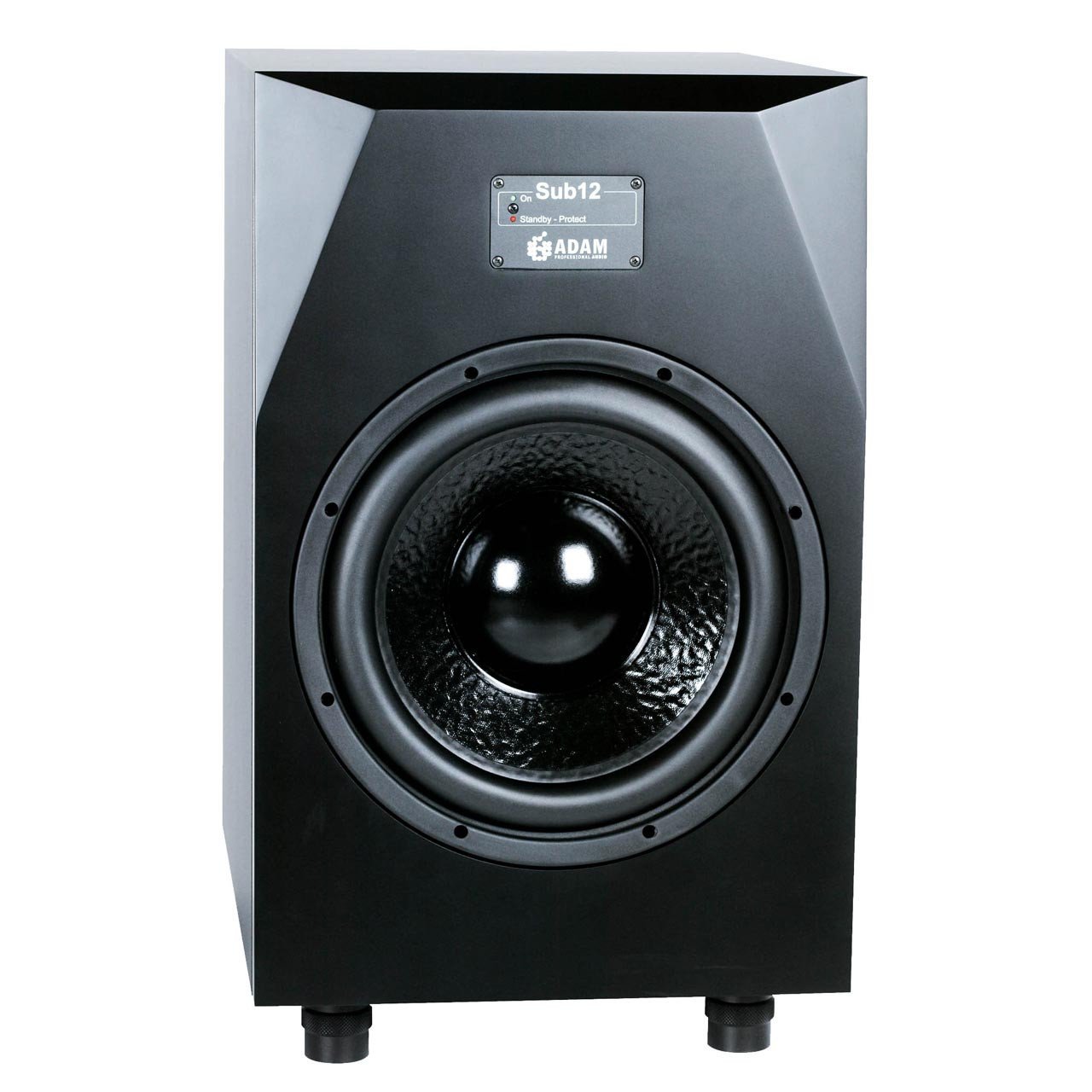

ADAM Audio Sub12 Active Studio Subwoofer

The Adam Sub12 is an active studio subwoofer with a 12-inch driver. The Sub12 features professional XLR connectors, along with RCA inputs too. On the technical front, the Adam Sub12 has a frequency filter of 50-150 Hz and is powered by a 200 W (RMS) amplifier. Like most Adam studio monitors, the Sub12 has a 5-year manufacturer's warranty. Designed to be the perfect companion to existing two or three-way stereo and surround speaker systems looking to extend the bass response as low as 22Hz. The Adam Audio Sub 12 is perfectly paired with A8X, A77X, S2X and even the S3X for a system that will shake the foundations.

Features

Sub12

The Sub12 is a powerful subwoofer designed to extend the low-frequency capabilities of any near or midfield monitoring system down to 22Hz.

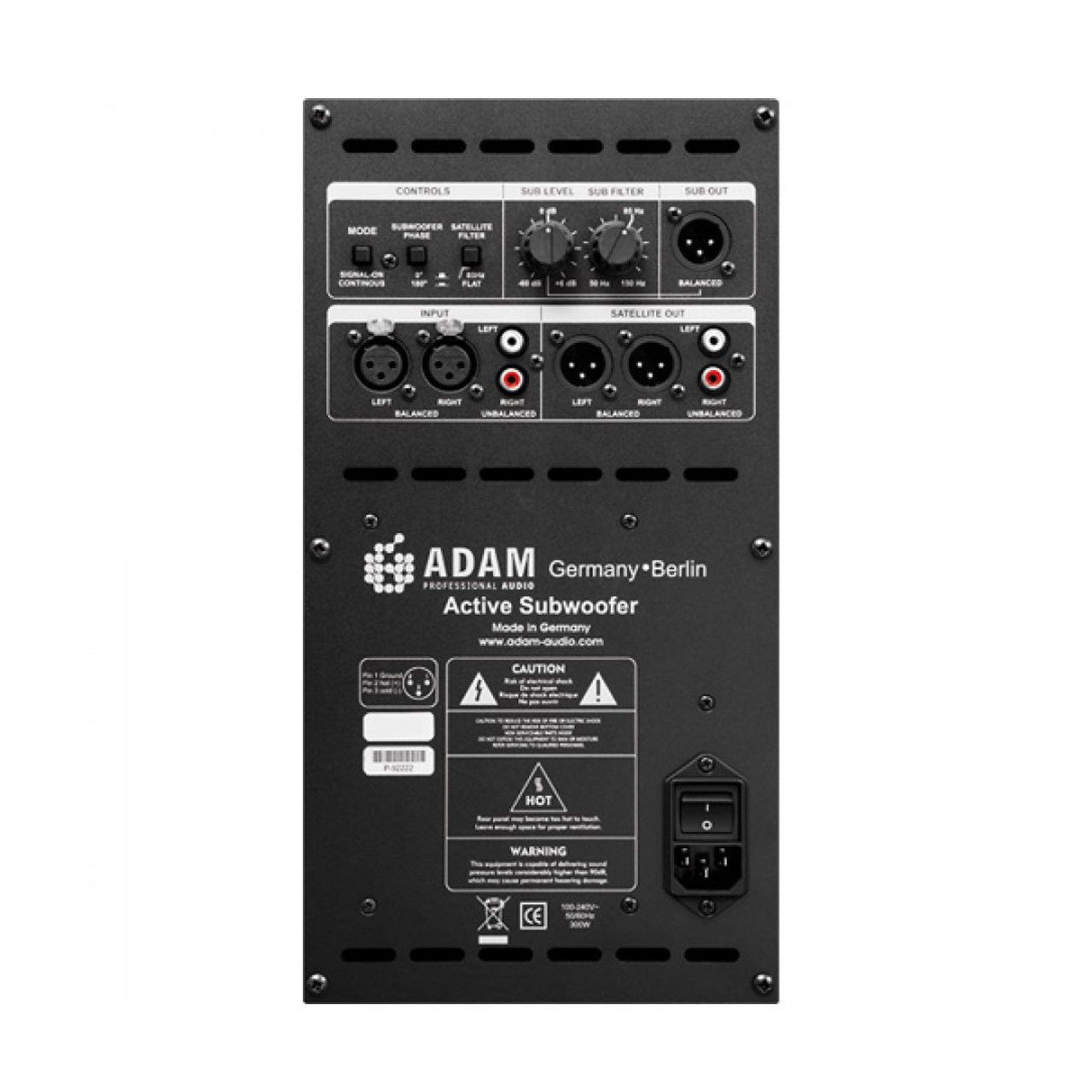

Panel / Controls
All subwoofers feature a level control (-60dB to +6dB), phase switch (180°) and a variable upper-frequency control (50-150Hz). For the satellite outputs, an 85Hz high pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby® recommendations for theatre sound and also relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (‚signal-on/ continuous).

Tech Specs

Panel

• Rear

Frequency response

• 22 Hz - 150 Hz

THD > 60 Hz

• ≤1 %

Peak SPL max at 1m

• ≥115 dB

Crossover frequencies

• 50 - 150 Hz

Input impedance

• 10 KOhm

Weight

• 57.3 lb (26 kg)

Height x Width x Depth

• 23.5" (600 mm) x 14" (360 mm) x 17.5" (450 mm)

Warranty

• 5 Years

Delivery contents

• Power cord, Manual
